DBCIDCB7S24AG1

Description
Board Connector, 24 Contact(s), 1 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Black Insulator, Plug
CategoryThe connector    The connector
File Size139KB,1 Pages
ManufacturerDUBILIER
Websitehttp://www.dubilier.co.uk/
Environmental Compliance
Download Datasheet Parametric View All

DBCIDCB7S24AG1 Overview

Board Connector, 24 Contact(s), 1 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Black Insulator, Plug

DBCIDCB7S24AG1 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid304356875
Reach Compliance Codeunknown
ECCN codeEAR99
body width0.1 inch
subject depth0.394 inch
body length2.4 inch
Body/casing typePLUG
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU
Contact point genderFEMALE
Contact materialBRASS
contact modeRECTANGULAR
Contact resistance30 mΩ
Contact styleSQ PIN-SKT
Dielectric withstand voltage500VAC V
Insulation resistance3000000000 Ω
Insulator colorBLACK
insulator materialGLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial numberB7
Plug contact pitch0.1 inch
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
PCB row number1
Number of rows loaded1
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
PCB contact patternRECTANGULAR
Plating thicknessFLASH inch
Rated current (signal)1 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.118 inch
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts24
FEMALE HEADERS
Industry compatible
Competitively priced
Single or dual row
No. of contacts 02-80
Gold plated contacts

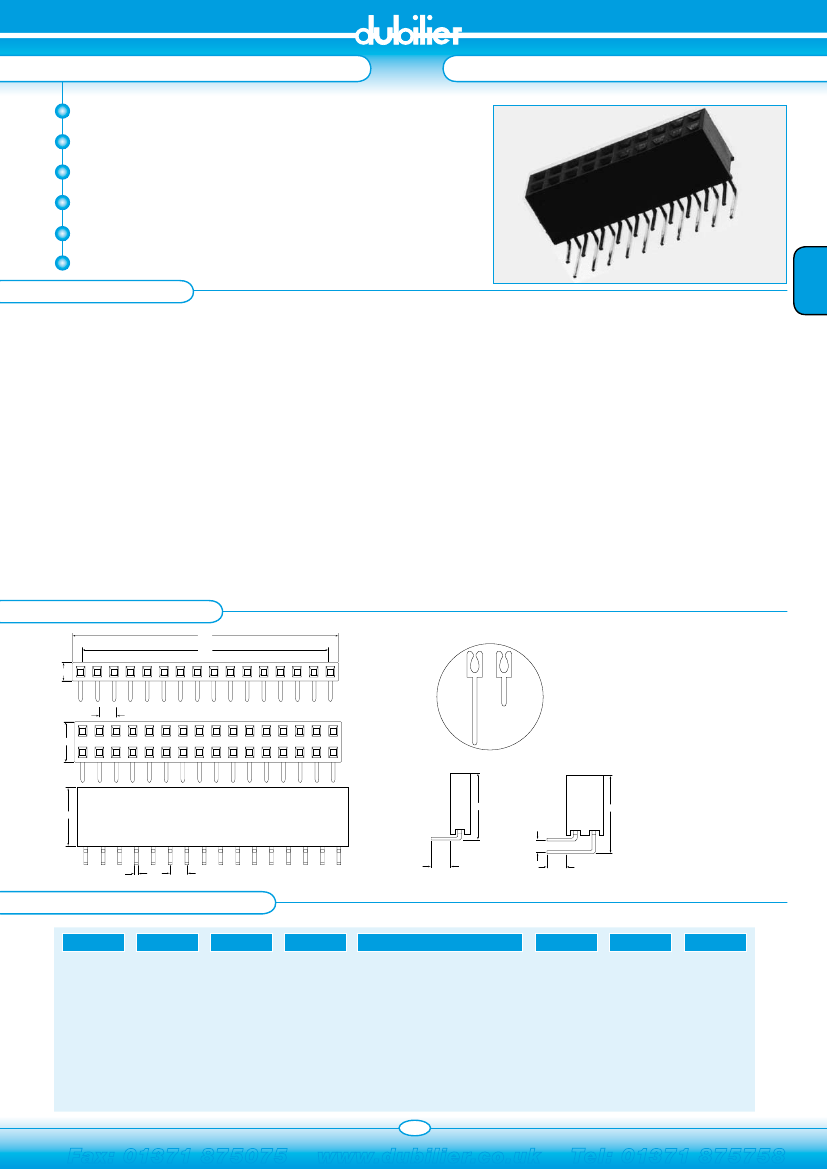

FEMALE HEADERS RIGHT ANGLE - 8.4mm PROFILE
SECTION 8
2.54mm pitch
SPECIFICATION
Material & Finish
Contact Material:
Insulator Material:
Current Rating:
Brass
Operating Temperature:
PBT & Glass-Fibre Reinforced UL-94V-0
1 A DC
-40°C to + 105°C
Dielectric Withstanding
Voltage:
500V AC for One Minute
Contact Resistance:
Insulator Resistance:
A
B
30M Ω Max
3000M Ω Min
A
A
B
A
B
2.54
2.54
2.54
B
A
B
OUTLINE DRAWING
2.54
2.54
2.54
5.0
5.0
2.54
5.0
A
B
A = 2.54mm x N° of Contacts
B = (2.54mm x N° of Contacts) -1
2.54
5.0
5.0
2.54
2.54
2.54
8.4
8.4
8.4
8.4
10
10
10
10
12.7
12.7
2.54
2.54
12.7
12.7
2.54
0.6
ORDERING INFORMATION
8.4
0.6
0.6
0.6
2.54
2.54
2.54
3.0
3.0
3.0
10
2.54
3.0
3.0
2.54
3.0
10
3.0
3.0
12.7
12.7
2.54
0.6
DBC
2.54
0.6
IDC
2.54
IDC
Connector
B7
Series
S
Nº of Rows
S = Single Row
D = Dual Row
3.0
04
3.0
2.54
3.0
A
3.0
G
Contact Plating
G= Gold Flash
1
Colour
1=Black
Dubilier
Connectors
Nº of Contacts/per row
02=2way
Thro to
43=43way
Contact Material
A=Brass
201
Fax: 01371 875075
www.dubilier.co.uk
Tel: 01371 875758
