8015-33S-0911-30 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 8015-33S-0911-30

8015-33S-0911-30: DescriptionD Subminiature Connector, 15 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, #4-40, Receptacle; CategoryThe connector The connector; File Size134KB，1 Pages; ManufacturerECS; Websitehttp://www.ecsxtal.com/

Download Datasheet Parametric Compare View All

8015-33S-0911-30 Overview

D Subminiature Connector, 15 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, #4-40, Receptacle

8015-33S-0911-30 Parametric

Parameter Name	Attribute value
Objectid	1327465893
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.492 inch
subject depth	0.492 inch
body length	1.312 inch
Body/casing type	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN/LEAD OVER NICKEL
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	STAGGERED
Contact resistance	20 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
Filter function	YES
Insulation resistance	5000000000 Ω
Insulator color	BLACK
Manufacturer's serial number	8000
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	#4-40
Installation option 2	RIVET
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Plating thickness	30u inch
Rated current (signal)	3 A
reliability	COMMERCIAL
Shell surface	TIN OVER NICKEL
Terminal length	0.126 inch
Terminal pitch	2.7686 mm
Termination type	SOLDER
Total number of contacts	15

Preview

Download Datasheet

View All

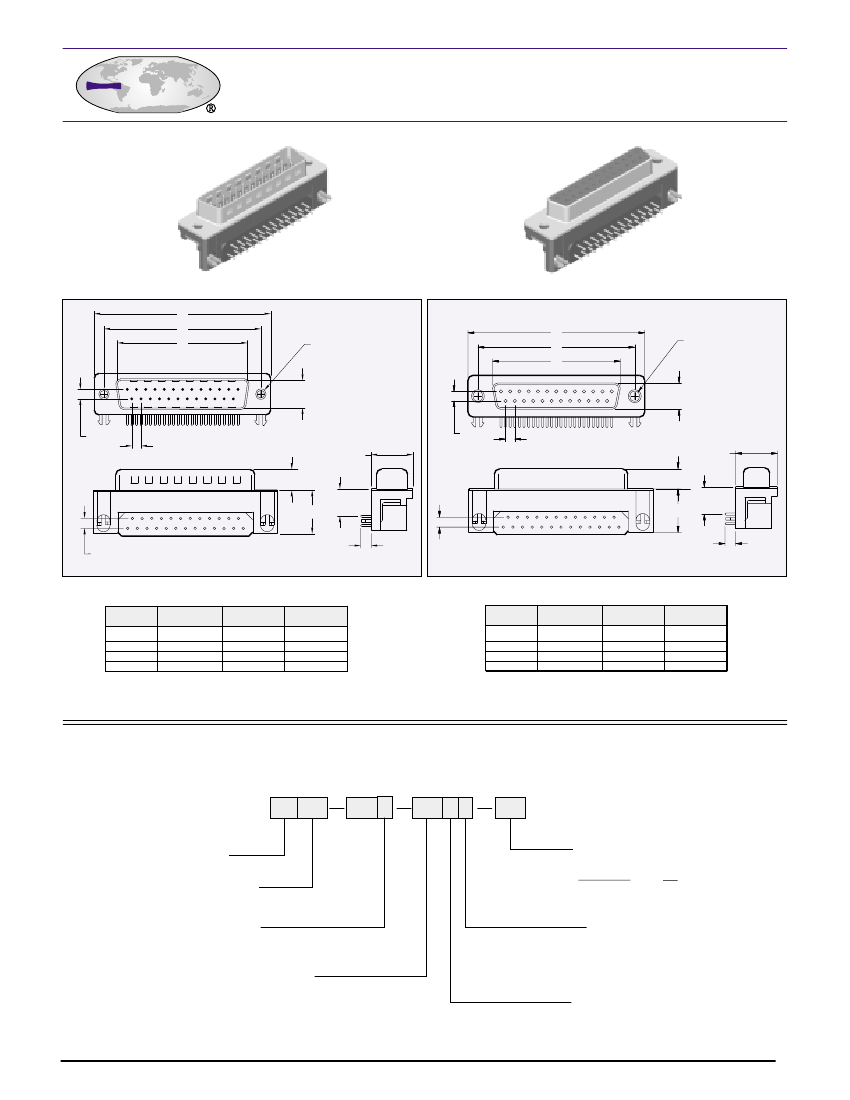

8000 Series D-Subminiature

.318 Right Angle with EMI Filter

PLUG

SEE MOUNTING

STYLE OPTIONS

RECEPTACLE

SEE MOUNTING

STYLE OPTIONS

.327 [8.3]

.311 [7.9]

.112 [2.84]

.109 [2.77] TYP.

.492 [12.5]

.112 [2.84]

.109 [2.77] TYP.

.492 [12.5]

.236 [6.0]

.318 [8.08]

.228 [5.8]

.318 [8.08]

.492 [12.5]

.112 [2.84]

.126 [3.2]

.492 [12.5]

.126 [3.2]

.112 [2.84]

PLUG

CONTACTS

RECEPTACLE

0.984 [25.00]

1.312 [33.32]

1.852 [47.04]

2.500 [63.50]

1.213 [30.80]

1.543 [39.20]

2.091 [53.10]

2.732 [69.40]

0.666 [16.92]

0.994 [25.25]

1.534 [38.96]

2.182 [55.42]

CONTACTS

0.984 [25.00]

1.312 [33.32]

1.852 [47.04]

2.500 [63.50]

1.213 [30.80]

1.543 [39.20]

2.091 [53.10]

2.732 [69.40]

0.642 [16.30]

0.969 [24.60]

1.508 [38.30]

2.157 [54.80]

Dimensions are in inches [mm]

80 XX

SERIES CODE

NO. OF CONTACTS

09, 15, 25, 37

PART NUMBERING

33 X

XX X X

50µ” Nickel Underplate

Mating Area

Tail

100µ” Tin Lead

= Au Flash

100µ” Tin Lead

= 15µ” Gold

100µ” Tin Lead

= 30µ” Gold

50µ” Nickel Underplate

= Tin Plating (standard)

CONTACT PLATING

CONNECTOR TYPE

= Plug

= Receptacle

SHELL PLATING

MOUNTING STYLE OPTIONS

See Page E-05 For Options

= Riveted Ground Hooks with #4-40 UNC Open

= Riveted Ground Tabs with #4-40 UNC Open

= Riveted Ground Hooks Pre-Loaded #4-40 UNC Hex Screws

= Assembly Ground Hooks By #4-40 UNC Hex Screws

Consult Factory for Other Mounting Options

= Black

INSULATOR COLOR

WWW.ECSCONN.COM
