BLK-722N datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> BLK-722N

BLK-722N: DescriptionFREQUENCY RANGE: 1 - 1000 MHz; CategoryWireless rf/communication Radio frequency and microwave; File Size22KB，1 Pages; ManufacturerSYNERGY; Websitehttp://www.synergymwave.com/

Download Datasheet Parametric Compare View All

BLK-722N Overview

FREQUENCY RANGE: 1 - 1000 MHz

BLK-722N Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	SYNERGY
Reach Compliance Code	unknow
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum insertion loss	0.4 dB
Maximum operating frequency	900 MHz
Minimum operating frequency	3 MHz
RF/Microwave Device Types	INSIDE AND OUTSIDE DC BLOCK
Maximum voltage standing wave ratio	1.45

Preview

Download Datasheet

View All

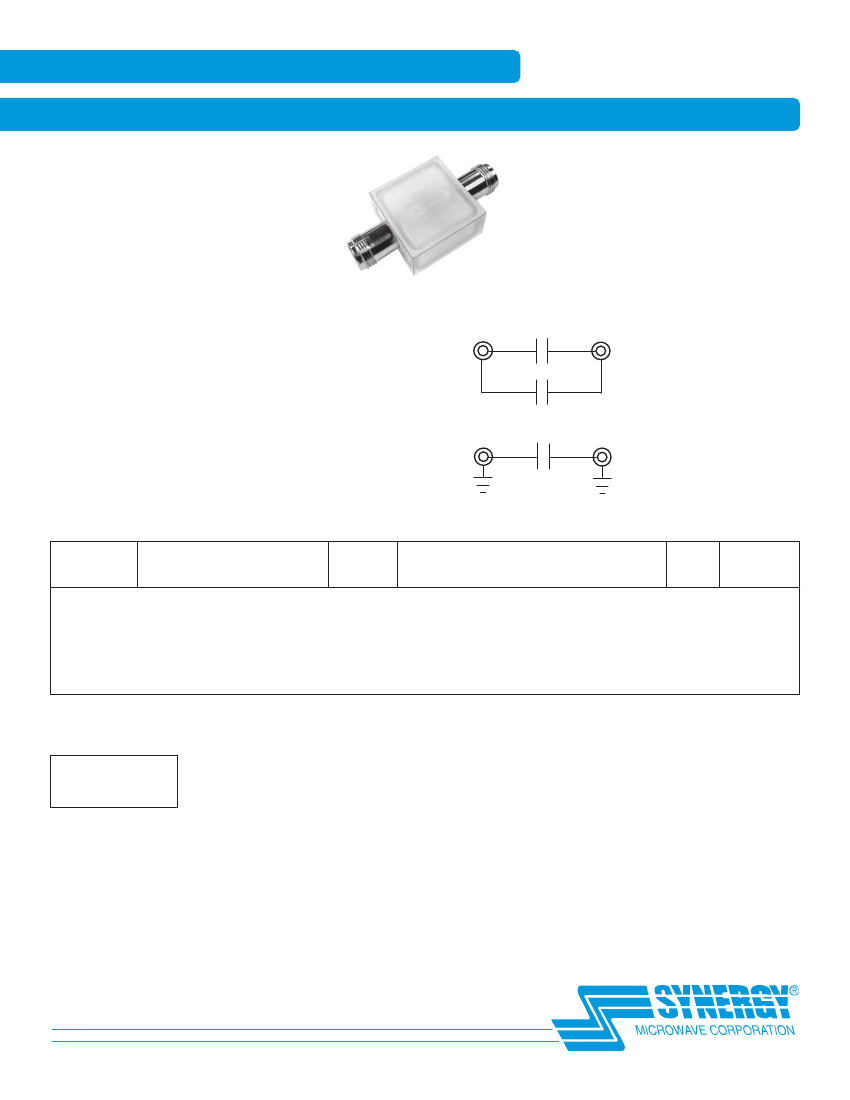

DC BLOCK

158

REQUENCY

ANGE:

1 - 1000 M

DC BLOCK

Because of their inherent high breakdown potential, the

DC Blocks are ideal for applications where a high voltage,

DC or AC up to 20 KHz, must be rejected from the RF

signal path. Leakage from modulating signals can occur via

AC power lines, through ground loops, or along poorly

grounded coaxial cables. These leakages can impair the

accuracy of RF measurements, and or signal purity.

DUAL BLOCK

SINGLE BLOCK

FREQUENCY

RANGE

(MHz)

TYP/MAX

INSERTION LOSS

(dB)

TYP/MAX

VOLTAGE

BREAKDOWN

(Vdc)

VSWR

TYP/MAX

TYPE

MODEL

3-500

5-500

1-1000

3-900

0.06/0.20

0.12/0.20

0.20/0.30

0.25/0.40

0.04/0.20

0.10/0.20

0.15/0.30

0.10/0.20

0.12/0.25

0.40/0.50

0.30/0.40

2500

1.12:1/1.20:1

1.18:1/1.25:1

1.40:1/1.50:1

1.18:1/1.25:1

1.08:1/1.20:1

1.12:1/1.20:1

1.10:1/1.20:1

1.23:1/1.32:1

1.12:1/1.25:1

1.20:1/1.30:1

1.40:1/1.50:1

1.35:1/1.45:1

Single

Dual

Single

Dual

BLK-711N

BLK-721N

BLK-712N

BLK-722N

NOTE:

For different connector requirements, please contact Synergy.

Impedance is 50 Ohms for all models.

LB = LF to 10 LF

MB = 10 LF to HF/2

UB = HF/2 to HF

For package outline drawing, see back pages.

201 McLean Boulevard • Paterson, New Jersey 07504 • Tel: (973) 881-8800 • Fax: (973) 881-8361

E-Mail: sales@synergymwave.com • World Wide Web: http://www.synergymwave.com

[ 163 ]

BLK-722N Related Products

	BLK-722N	BLK-711N	BLK-721N	BLK-712N
Description	FREQUENCY RANGE: 1 - 1000 MHz	FREQUENCY RANGE: 1 - 1000 MHz	FREQUENCY RANGE: 1 - 1000 MHz	FREQUENCY RANGE: 1 - 1000 MHz
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	SYNERGY	SYNERGY	SYNERGY	SYNERGY
Reach Compliance Code	unknow	unknow	unknow	unknow
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω
structure	COAXIAL	COAXIAL	COAXIAL	COAXIAL
Maximum insertion loss	0.4 dB	0.2 dB	0.25 dB	0.5 dB
Maximum operating frequency	900 MHz	500 MHz	500 MHz	1000 MHz
Minimum operating frequency	3 MHz	3 MHz	5 MHz	1 MHz
RF/Microwave Device Types	INSIDE AND OUTSIDE DC BLOCK	INSIDE DC BLOCK	INSIDE AND OUTSIDE DC BLOCK	INSIDE DC BLOCK
Maximum voltage standing wave ratio	1.45	1.25	1.3	1.5
