T311089: DescriptionAll Dimension In MM; File Size121KB，1 Pages; ManufacturerE-Switch; Websitehttp://www.e-switch.com

Download Datasheet View All

T311089 Overview

All Dimension In MM

Preview

Download Datasheet

View All

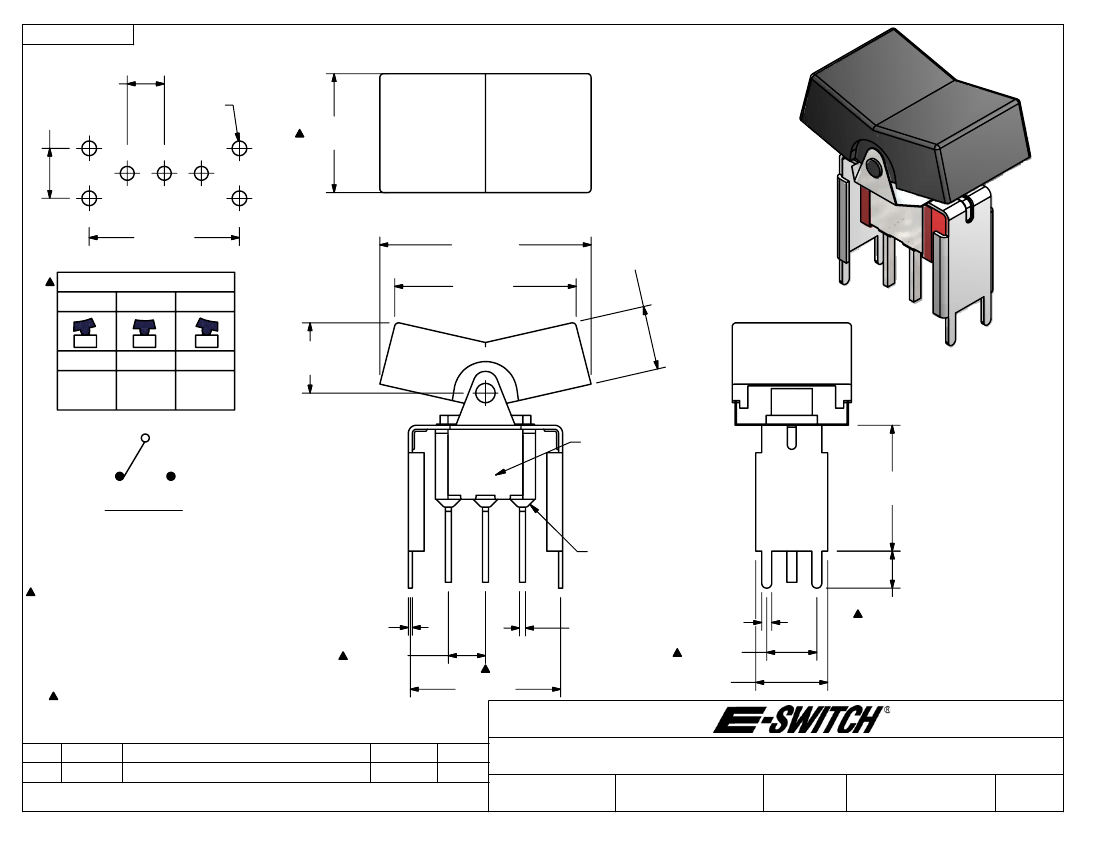

SHEET 1 OF 1

4.70

[.185 in]

6.35

[.250 in]

1.85

[.073 in]

15.11

[.595 in]

P.C. MOUNTING

19.05

[.750 in]

SWITCH FUNCTION

POS. 1

POS. 2

POS. 3

26.80

[1.055 in]

23.01

[.906 in]

8.13

[.320 in]

2-3

NONE

N/A

2-1

8.92

[.351 in]

ISOMETRIC

E-SWITCH

MARKING ON

OPPOSITE SIDE

16.00

[.630 in]

CIRCUI: SPDT

NOTE:

1. ALL DIMENSIONS IN MM [INCH]

2. GENERAL TOLERANCE: X.X=±0.4

X.XX=±0.25

3. TERMINAL NUMBERS FOR REF ONLY

4. PLATING MATERIAL: SILVER

5. RATING: 2 AMPS @250VAC

5 AMPS @120VAC OR 28VDC

.51

6. ELECTRIC LIFE: 40,000 make-and-break cycles

[.020 in]

at full load.

4.70

7. INSULATION RESISTANCE: 1,000 Mega-ohm min.

[.185 in]

8. DIELECTRIC STRENGTH: 1,000 V RMS @sea level.

9. OPERATING TEMP.: -30°C to 85°C

10.

DENOTES CRITICAL PARAMETER.

11. 2002/95/EC (ROHS) COMPLIANT

EPOXY SEAL

1.27

[.050 in]

6.35

[.250 in]

19.05

[.750 in]

9.14

[.360 in]

4.70

[.185 in]

.76

[.030 in]

REV

16796

PCR NO

RELEASED FOR PRODUCTION

DESCRIPTION

12/27/06

DATE

TITLE

SCALE

300SP1J3BLKVS5QE

2:1

DATE

DWG

REV

THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY

TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED

12/27/2006

T311089
