2” Square / 50.8mm Square Waffle Tray (BLACK)
Features:
•
Static Protective
•
Tight Dimensional Pocket Tolerance
•
Durable Material Construction
Component Applications:
•
Thin Film & Chip Level / Known Good Die (KGD)
•
Passive and Active Chip Components
•
Opto Electronics and Mechanical Components
M20-037-20

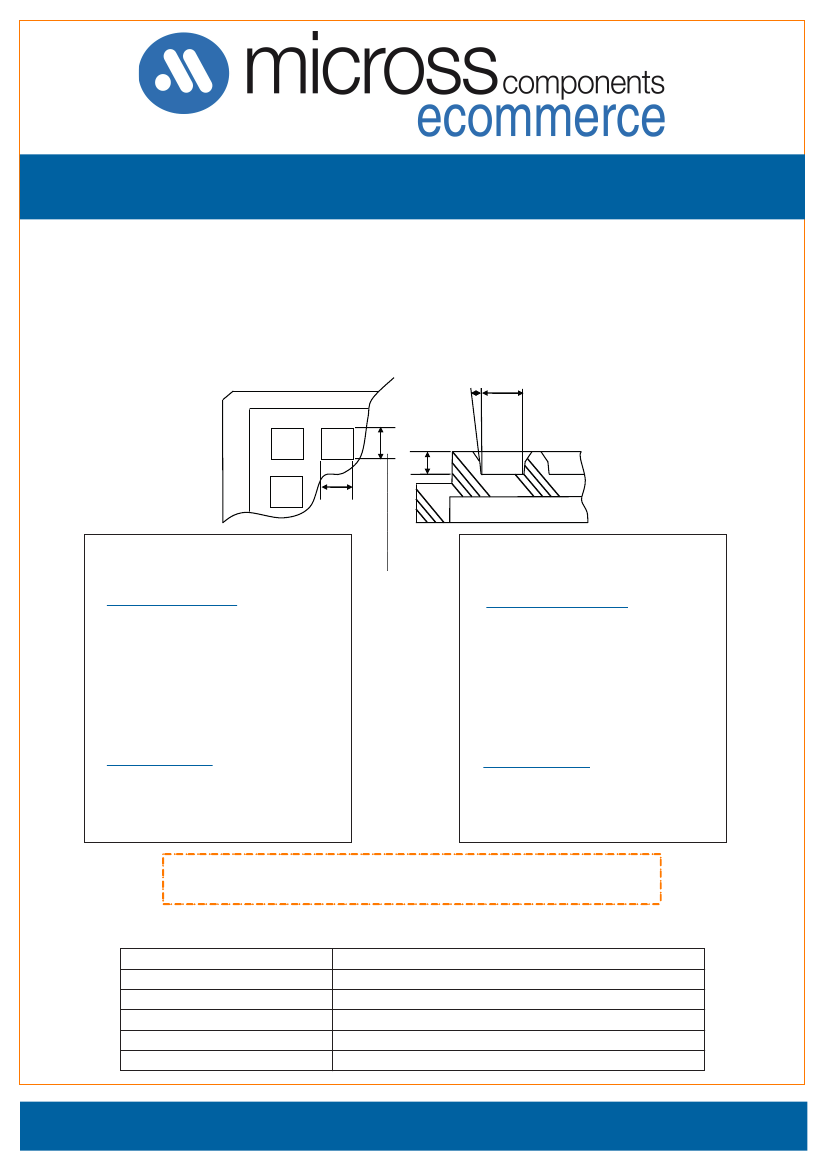

Waffle Tray Diagram
A
X
Y
Z
X
Waffle Tray - Dimensions (mm)
Technical Spec (mm)
X = 0.94mm ±0.13mm pocket size
Y = 0.94mm ±0.13mm pocket size
Z = 0.51mm ±0.05mm pocket depth
A = 30° ±1/2° pocket draft angle
No Cross Slots
Array = 20 X 20 (400)
Overall Tray Size:
Size = 50.67mm ±0.25mm
Height = 3.94mm +0.08mm -0.13mm
Flatness = 0.30mm
Waffle Tray – Dimensions (Inches)
Technical Spec (inches)
X = 0.037” ±0.005” pocket size
Y = 0.037” ±0.005” pocket size
Z = 0.020” ±0.002” pocket depth
A = 30° ±1/2° pocket draft angle
No Cross Slots
Array = 20 X 20 (400)
Overall Tray Size:
Size = 1.995” ±0.010”
Height = 0.155” +0.003” -0.005”
Flatness = 0.012”
Buy M20-037-20 Waffle Tray Pack Online
Micross Kit Includes – Tray, Lid, Tyvek Paper and Clip
Tray Material
Surface Resistivity
Static Delay Time (sec.)
Temperature Limit
Lid Material
Clip Material
Polypropylene with Carbon Powder and Glass Bead
10
1
- 10
5
<0.01
70˚C
Polypropylene with Carbon Powder and Glass Bead
Polypropylene with Carbon Powder
