FWJ-05-02-T-S-RA datasheet, PDF

Datasheet> All Categories > The connector> The connector> FWJ-05-02-T-S-RA

FWJ-05-02-T-S-RA: Description5 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER; CategoryThe connector The connector; File Size123KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

FWJ-05-02-T-S-RA Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	FWJ-05-02-T-S-RA	-	-	View	Buy Now

FWJ-05-02-T-S-RA Overview

5 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER

FWJ-05-02-T-S-RA Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
ECCN code	EAR99
body width	0.125 inch
subject depth	0.25 inch
body length	0.78 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact arrangement	S0P5
Contact to complete cooperation	MATTE TIN OVER NICKEL (50)
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrie
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
JESD-609 code	e3
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
reliability	COMMERCIAL
Terminal length	0.175 inch
Terminal pitch	3.96 mm
Termination type	SOLDER
Total number of contacts	5
Base Number Matches	1

Preview

Download Datasheet

View All

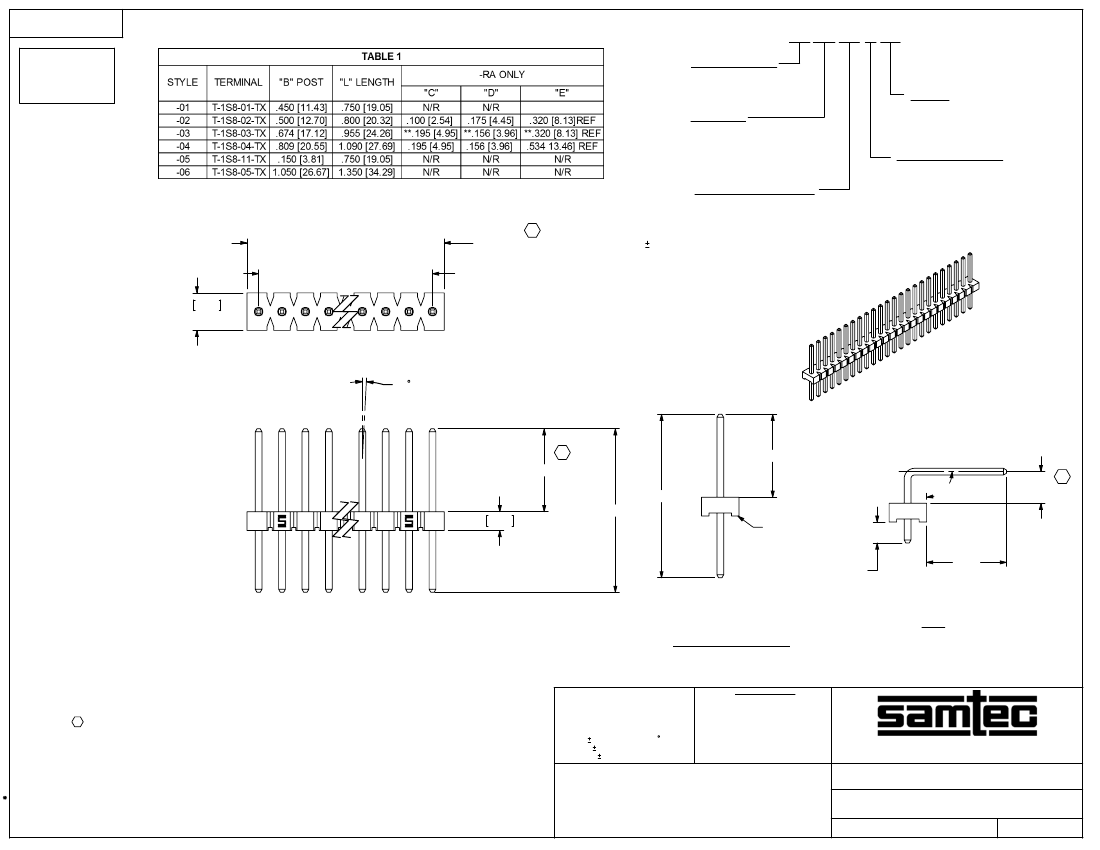

REVISION AC

DO NOT

SCALE FROM

THIS PRINT

FWJ-XX-XX-TX-S-XX

No OF POSITIONS

-01 THRU -23

-24 = SEE FSW-24-156

LEAD STYLE

SEE TABLE 1

OPTION

-RA: RIGHT ANGLE

BODY SPECIFICATION

USE FSW-24-156

**=NOT RELEASED FOR PRODUCTION.

PLATING SPECIFICATION

-T: MATTE IN CONTACT AND TAIL

-TM: MATTE TIN CONTACT AND TAIL

(NO OF POSITIONS X.156 [3.96]) .010 [.25]

(No OF POS. x .156 [3.96])-.156 [3.96]

.250 6.35

REF

2 MAX SWAY

(EITHER DIRECTION)

"B" (SEE NOTES 4 & 5)

"L"

"B"

90°±2°

STANDOFF

"D" REF

(SEE NOTE 5)

"E"

"C"

.125 3.18 REF

-RA

IN-PROCESS VIEW

-RA

-02 & -04 ONLY

NOTES:

REPRESENTS A CRITICAL DIMENSION.

2. MIN PUSHOUT FORCE: 3 LBS.

3. MAX ALLOWABLE BOW AFTER ASSEMBLY: .003 [.08] INCH/INCH

4. HEIGHT VARIATION BETWEEN PINS SHALL BE .005 [.13] MAX

5. BANDOLIER AREA TO BE POSITIONED ABOUT OR TOWARDS STANOFF SIDE OF BODY.

ENTIRE BANDOLIER AREA MUST NOT BE LOCATED IN THIS AREA ON LEADSTYLES -01, -02, -03, AND -05.

6. MAX CUT FLASH: .020 [.51]

UNLESS OTHERWISE SPECIFIED,

DIMENSIONS ARE IN INCHES.

TOLERANCES ARE:

DECIMALS

.XX: .01 [.3]

.XXX: .005 [.13]

.XXXX: .0020 [.051]

ANGLES

THIS DOCUMENT CONTAINS CONFIDENTIAL AND

PROPRIETARY INFORMATION AND ALL DESIGN,

MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS

AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,

INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE

OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR

REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY

OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS

WRITTEN CONSENT OF SAMTEC, INC.

PROPRIETARY NOTE

520 PARK EAST BLVD, NEW ALBANY, IN 47150

PHONE: 812-944-6733

FAX: 812-948-5047

e-Mail info@SAMTEC.com

code 55322

DESCRIPTION:

DWG. NO.

MATERIAL:

INSULATOR: PBT, UL 94 VO

COLOR: BLACK

DO NOT SCALE DRAWING

SHEET SCALE: 1.5:1

.045 SQ POST ASSEMBLY

TERMINAL: PIN STYLES -01 THRU -05: PHOS BRONZE

PIN STYLE -11: CDA 7025

F:\DWG\MISC\MKTG\FWJ-XX-XX-TX-S-XX-MKT.SLDDRW

FWJ-XX-XX-TX-S-XX

SHEET

BY:

DEAN PURVIS 2-19-86
