ISSUED DATE :2005/08/10
REVISED DATE :2006/05/15C
GSCNE555
Description
SINGLE TIMER
The GSCNE555 is a highly stable timer integrated circuit. It can be operated in Astable mode and Monostable
mode. With monostable operation, the time delay is controlled by one external and one capacitor. With a stable
operation, the frequency and duty cycle are accurately controlled with two external resistors and one capacitor.
Features
&
current driver capability (=200mA)
High
&
Adjustable
Applications
&
Precision timing
duty cycle
&Timing form Sec to Hours
&
Turn off time less than 2 Sec
&Pulse generation
&Time delay generation
Package Dimensions
REF.
A
B
C
D
E
F
Millimeter
Min.
Max.
5.80
4.80
3.80
0°
0.40
0.19
6.20
5.00
4.00
8°
0.90
0.25
REF.
M
H
L
J
K
G
Millimeter
Min.
Max.
0.10
0.25
0.35
0.49
1.35
1.75
0.375 REF.
45°
1.27 TYP.

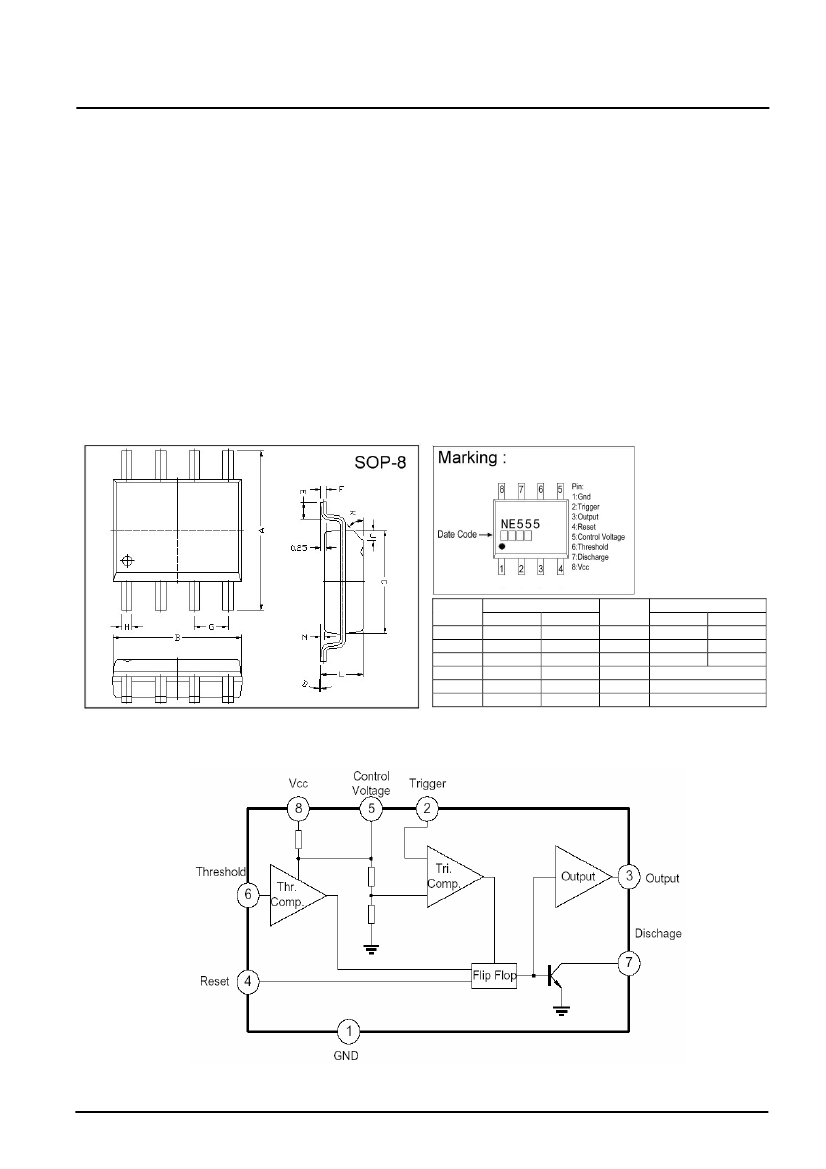

Block Diagram and Simplified Application & Pin Configuration
GSCNE555
Page: 1/5
ISSUED DATE :2005/08/10
REVISED DATE :2006/05/15C
Absolute Maximum Ratings
(Ta=25 : )
Parameter
Supply Voltage
Output Current
Power Dissipation
Lead Temperature
Operating Temperature
Storage Temperature
Parameter
Supply Voltage
Symbol
V
CC
I
O
Pd
Tlead
Topr
Tstg
Value
16
200
440
300
0 ~ 70
-65 ~ 150
Test Conditions
Min
4.5
-
-
-
-
-
-
-
-
9.0
2.6
9.2
3.1
-
1.1
4.5
-
0.4
-
-
-
-
-
12.75
2.75
-
-
-
Typ
-
3
10
1.0
50
0.1
2.25
150
0.3
10.0
3.33
10.0
3.33
0.1
1.67
5
-
0.7
0.1
0.06
0.3
0.05
12.5
13.3
3.3
100
100
20
Unit
V
mA
mW
:
:
:
Max
16
6
15
-
-
-
-
-
-
11.0
4.0
10.8
3.55
0.25
2.2
5.6
2.0
1.0
0.4
0.25
0.75
0.35
-
15
5
-
-
100
Unit
V
mA
mA
%
ppm/ :
Electrical Characteristics
(T
A
=25 : V
CC
=5 ~ 15V)
Symbol
V
CC
I
CC
Supply Current
(Note 1)
Timing Error(monostable)
Initial Accurary
(Note 1)
Drift with Temperature
Drift with Supply Voltage
Timing Error(astable)
Initial Accurary
(Note 1)
Drift with Temperature
Drift with Supply Voltage
Control Voltage
Threshold Voltage
Threshold Current
(Note 3)
Trigger Voltage
Trigger Current
Reset Voltage
Reset Current
Low Output Voltage
V
CC
=5V, RL=
V
CC
=15V, RL=
A
CCUR
R
A
=1k to 100k
t/ T C=0.1 F
t/ V
CC
A
CCUR
R
A
=1k to 100k
t/ T C=0.1 F
t/ V
CC
V
CC
=15V
V
C
V
CC
=5V
V
CC
=15V
V
TH
V
CC
=5V
I
TH
V
CC
=5V
V
tr
V
CC
=15V
I
tr
V
tr
=0
V
rst
I
rst
V
CC
=15V,
I
sink
=10mA
V
OL
V
CC
=15V,
I
sink
=50mA
V
CC
=5V,
I
sink
=5mA
V
CC
=15V,
I
source
=200mA
V
OH
V
CC
=15V,
I
source
=100mA
V
CC
=5V,
I
source
=100mA
t
R
t
F
I
LKG
%/V
%
ppm/ :
%/V
V
V
V
V
A
V
V
A
V
mA
V
High Output Voltage
Reset Time of Output
Fall Time of Output
Discharge leakage Current
V
nSec
nSec
nA
Note1: Supply current when output is high typically 1mA less at V
CC
=5V.
Note2: Tested at V
CC
=5V and V
CC
=15V.
Note3: This will determine the maximum value of RA+RB for 15V operation, the maximum total is R=20M , and for 5V operation the
maximum total is R=6.7M .
GSCNE555
Page: 2/5

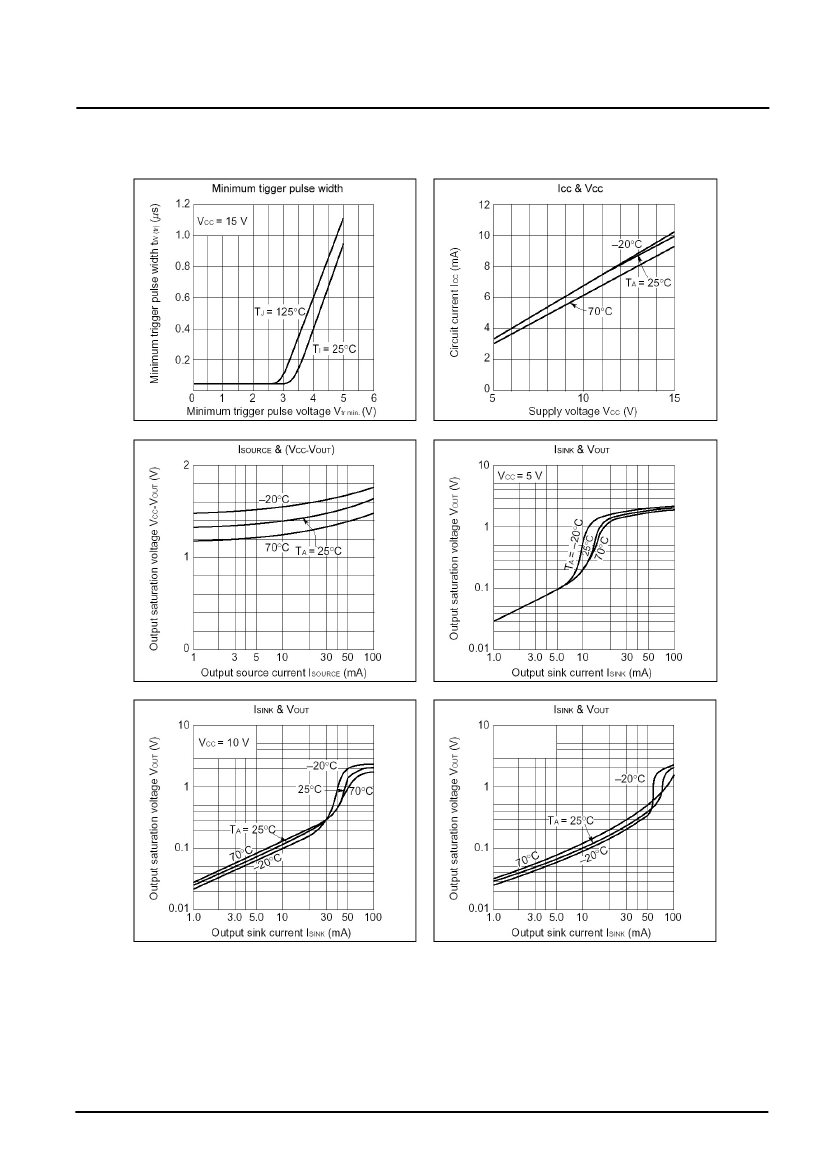

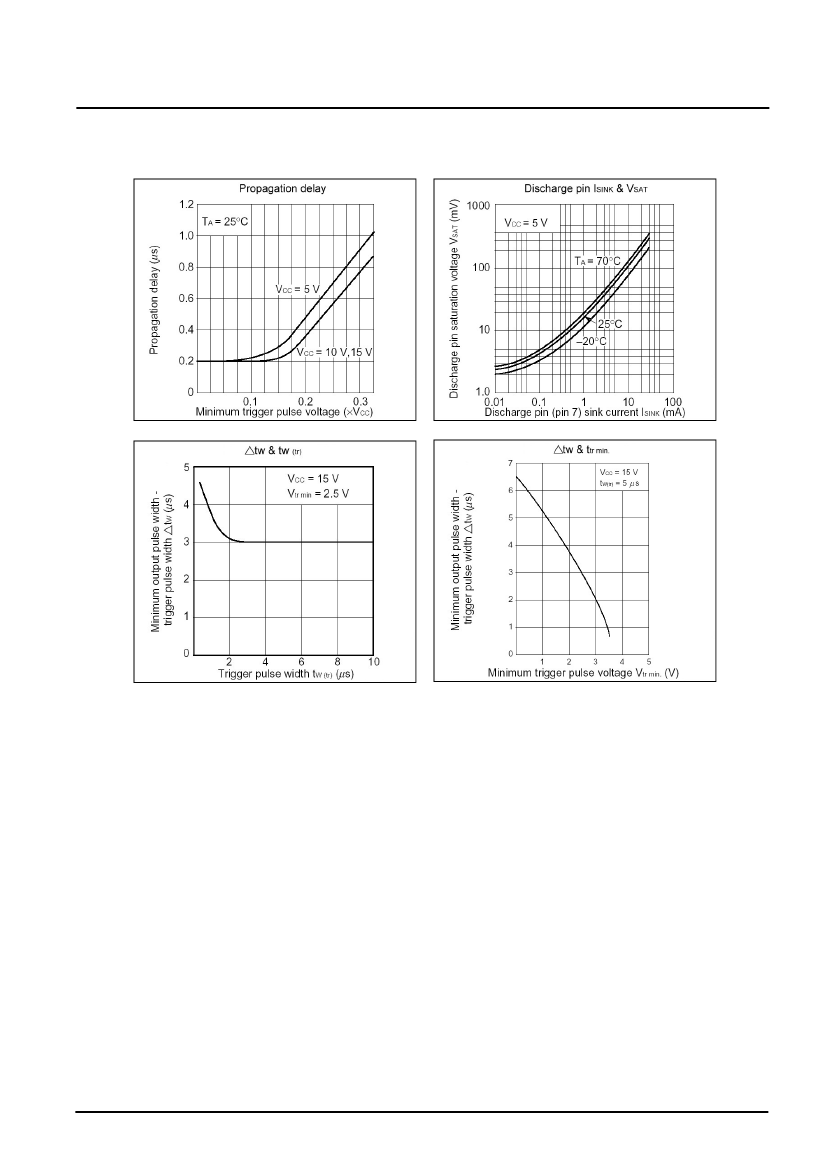

ISSUED DATE :2005/08/10
REVISED DATE :2006/05/15C
Application Circuit
FLIP-FLOP
GSCNE555
Application Notes
The application circuit shows astable mode configuration.
Pin 6 (Threshold) is tied to Pin 2 (Trigger) and Pin 4 (Reset) is tied to V
CC
(Pin 8). The external capacitor C1
of Pin 6 and Pin 2 charges through RA, RB and discharge through RB only. In the internal circuit of
GSCNE555, one input of the upper comparator is at voltage of 2/3V
CC
(R1=R2=R3), another input is
connected to Pin 6. As soon as C1 is charging to higher than 2/3V
CC
, transistor Q1 is turned ON and
discharge C1 to collector voltage of transistor Q1. Therefore, the flip-flop circuit is reset and output is low. One
input of lower comparator is at voltage of 1/3V
CC
, discharge transistor Q1 turn off and C1 charges through RA
and RB. Therefore, flip-flop circuit is set output high.
That is, when C1 charges through RA and RB, output is high and when C1 discharge through RB, output is
low. The charge time (output is high) t1 is 0.693 (RA+RB) C1 and the discharge time (output is low) T2 is
0.693RB*C1.
Vcc-
1
Vcc
3
In
Vcc- 2 Vcc
1
3
=0.693
T1=0.693*(RA+RB)*C1
T2=0.693*RB*C1
Thus the total period time T is given by
T=T1+T2=0.693(RA+2RB)*C1
Then the frequency of astable mode is given by
f=
1
T
=
1.44
(RA+2RB)*C1
The duty cycle is given by
D.C. =
T2
T
=
RB
RA+2RB
Important Notice:
All rights are reserved. Reproduction in whole or in part is prohibited without the prior written approval of GTM.
GTM reserves the right to make changes to its products without notice.
GTM semiconductor products are not warranted to be suitable for use in life-support Applications, or systems.
GTM assumes no liability for any consequence of customer product design, infringement of patents, or application assistance.
Head Office And Factory:
Taiwan:
No. 17-1 Tatung Rd. Fu Kou Hsin-Chu Industrial Park, Hsin-Chu, Taiwan, R. O. C.
TEL : 886-3-597-7061 FAX : 886-3-597-9220, 597-0785
China:
(201203) No.255, Jang-Jiang Tsai-Lueng RD. , Pu-Dung-Hsin District, Shang-Hai City, China
TEL : 86-21-5895-7671 ~ 4 FAX : 86-21-38950165
GSCNE555
Page: 5/5
