RD1825B394J251NT: DescriptionCeramic Capacitor, Multilayer, Ceramic, 250V, 5% +Tol, 5% -Tol, X7R, 15% TC, 0.39uF, Surface Mount, 1825, CHIP; CategoryPassive components capacitor; File Size80KB，1 Pages; ManufacturerNovacap; Websitehttps://www.novacap.eu/en/; Environmental Compliance

Download Datasheet Parametric View All

RD1825B394J251NT Overview

Ceramic Capacitor, Multilayer, Ceramic, 250V, 5% +Tol, 5% -Tol, X7R, 15% TC, 0.39uF, Surface Mount, 1825, CHIP

RD1825B394J251NT Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1714678177
package instruction	, 1825
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	0.39 µF
Capacitor type	CERAMIC CAPACITOR
Custom functions	Consult Factory
dielectric materials	CERAMIC
high	2.41 mm
JESD-609 code	e3
length	4.57 mm
Manufacturer's serial number	RD1825
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	5%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR
positive tolerance	5%
Rated (DC) voltage (URdc)	250 V
series	RING DETECT SMT X7R
size code	1825
surface mount	YES
Temperature characteristic code	X7R
Temperature Coefficient	15% ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
width	6.35 mm

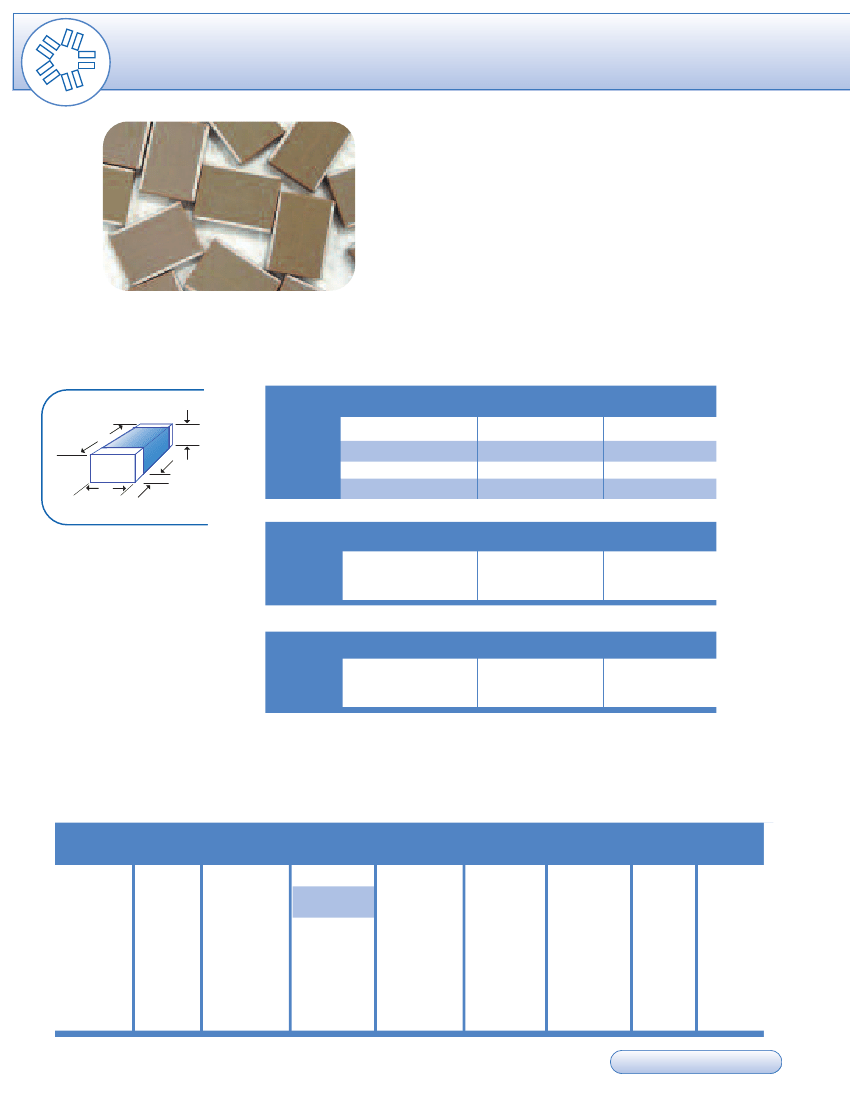

RD1825B394J251NT Preview

TIP & RING CAPACITORS

NOVACAP offers a line of low ESR surface mount

capacitors ideally

suited for “Tip & Ring” applications. These units are designed with 250

VDC rating to withstand the 52 VDC bias and 150 VRMS signal during

ring cadence. Chips are offered in X7R dielectric from 0.39µF to 1.5µF

in sizes 1812, 1825 and 2225. Product is also available in Z5U and Y5V

dielectric from 0.47µF to 1.5µF for other ring detection circuits.

MAX CAPACITANCE @ 250 VDC

3 digit code: two significant digits, followed by number of zeros

eg: 394 = 390,000 pF (0.39µF)

SIZE

L

T

1812

.180

.125

.095

.024

(4.57)

(3.18)

(2.41)

(.610)

1825

.180

.250

.095

.024

(4.57)

(6.35)

(2.41)

(.610)

2225

.220

.250

.095

.030

(5.59)

(6.35)

(2.41)

(.760)

W

MB

LENGTH L

WIDTH W

T MAX

MB

X7R DIELECTRIC

MAX CAP

@ 250V

474

824

105

Y5V/Z5U DIELECTRIC

MAX CAP

@ 250V

564

125

155

HOW TO ORDER

RD1812

SIZE

RD1812

RD1825

RD2225

Y

B = X7R

Y = Y5V

Z = Z5U

474

Value in

Picofarads

Two significant

figures,

followed by

number of zeros:

474=470,000 pF

M

TOLERANCE

J = +/- 5 %

X7R ONLY

K = +/- 10 %

M = +/- 20 %

Z = +80% -20%

P = +100% -0%

251

N

X

THICKNESS

OPTION

X=Non-standard

thickness. Specify

in Mils if non-

standard is

required.

Standard items

are any thickness

to maximum

shown

T

PACKING

OPTION

T=Reeled

M

MARKING

OPTION

M = Marked

(See Marking

Instructions)

DIELECTRIC CAPACITANCE

VOLTAGE-VDCW TERMINATION

Two significant

N = Nickel Barrier

figures, followed

(100% Tin)

by number of

Y = Nickel Barrier

zeros:

(90 Tin/10 Lead)

251 = 250V

40

Catalog 09-08-PC

.

www.

N O V A C A P

.

com
