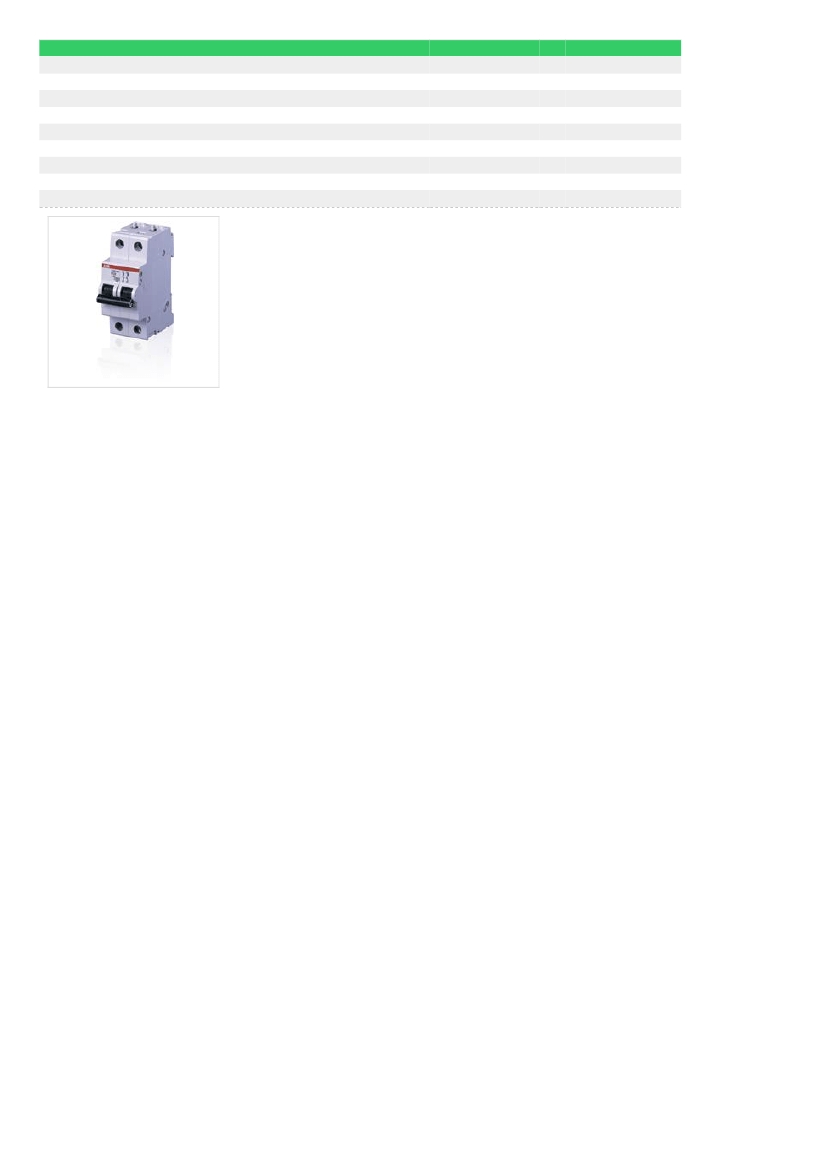

S202MT-D13
General Information
Extended Product Type:
Product ID:
EAN:
Catalog Description:
Long Description:
S202MT-D13
2CDS272006R0131
4016779875424
Miniature Circuit Breaker - S200MT - 2P - D
S202MT-D13 MiniatureCircuitBreaker D-Char.,10kA,13A,2P
Categories
Products
»
Low Voltage Products and Systems
»
Modular DIN Rail Products
»
Miniature Circuit Breakers MCBs
Ordering
Minimum Order Quantity:
Customs Tariff Number:
1 piece
85362010
Popular Downloads
Data Sheet, Technical Information:
2CDC002053D0204
Instructions and Manuals:
2CDC002053D0204
Dimensions
Product Net Width:
Product Net Depth:
Product Net Height:
Product Net Weight:
35 mm
69 mm
88 mm
0.25 kg
Technical
Standards:
Number of Poles:
Tripping Characteristic:
Rated Current (I
n
):
Rated Operational Voltage:
Power Loss:
Rated Insulation Voltage (U
i
):
Operational Voltage:
IEC/EN 60898-1
IEC/EN 60947-2
2
D
13 A
acc. to IEC 60898-1 400 V AC
acc. to IEC 60947-2 400 V AC
4.6 W
at Rated Operating Conditions per Pole 2.3 W
acc. to IEC/EN 60664-1 440 V
Maximum (Incl. Tolerance) 125 V DC
Maximum (Incl. Tolerance) 440 V AC
Maximum 440 V AC
Maximum 125 V DC
Minimum 12 V AC
Minimum 12 V DC
50 Hz
60 Hz
(400 V AC) 10 kA
(400 V AC) 15 kA
(400 V AC) 11.3 kA
3
III
3
4 kV
(6.2 kV @ sea level)
(5.0 kV @ 2000 m)
50 / 60 Hz, 1 min: 2 kV
Insulation Group I, RAL 7035
Insulation group II, black, sealable
ON / OFF
IP20
IP40 in enclosure with cover
20000 AC cycle
20000 cycle
Screw Terminals
Rated Frequency (f):
Rated Short-Circuit Capacity (I
cn
):
Rated Ultimate Short-Circuit
Breaking Capacity (I
cu
):
Rated Service Short-Circuit
Breaking Capacity (I
cs
):
Energy Limiting Class:
Overvoltage Category:
Pollution Degree:
Rated Impulse Withstand Voltage
(U
imp
):
Dielectric Test Voltage:
Housing Material:
Actuator Type:
Contact Position Indication:
Degree of Protection:
Remarks:
Electrical Endurance:
Mechanical Endurance:
Terminal Type:
Screw Terminal Type:
Connecting Capacity:
Tightening Torque:
Recommended Screw Driver:
Mounting on DIN Rail:
Mounting Position:
Failsafe Bi-directional Cylinder-lift Terminal
Busbar 10 / 10 mm²
Flexible with Ferrule 0.75 ... 16 mm²
Flexible 0.75 ... 16 mm²
Rigid 0.75 ... 25 mm²
Stranded 0.75 ... 25 mm²
2.8 N·m
Pozidriv 2
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
Any
Environmental
Ambient Air Temperature:
Resistance to Shock acc. to IEC
60068-2-27:
Resistance to Vibrations acc. to IEC
5g, 20 cycles at 5 ... 150 ... 5 Hz with load 0.8 In
60068-2-6:
Environmental Conditions:
28 cycles
with 55 °C / 90-96 %
and 25 °C / 95-100 %
Operation -25 ... +55 °C
Storage -40 ... +70 °C
30g / 3 shocks / 11 ms
Certificates and Declarations (Document Number)
Declaration of Conformity - CE:
2CDK400594D2702
Container Information
Package Level 1 Units:
Package Level 1 Width:
Package Level 1 Length:
Package Level 1 Height:
Package Level 1 Gross Weight:
Package Level 1 EAN:
5 piece
92 mm
183 mm
80 mm
1.3 kg
4016779870566
Classifications
Object Classification Code:
ETIM 4:
ETIM 5:
ETIM 6:
eClass:
UNSPSC:
F
EC000042 - Miniature circuit breaker (MCB)
EC000042 - Miniature circuit breaker (MCB)
EC000042 - Miniature circuit breaker (MCB)
7.0 27141901
39121614
Accessories
Show accessory images
32 Products
Identifier
2CCA880100R0001
2CCA880101R0001
2CCA880102R0001
2CDS200909R0001
2CDS200909R0002
2CDS200912R0001
2CDS200918R0001
2CDS200922R0001
2CDS200936R0001
2CDS200936R0002
2CDS200936R0003
2CDS200946R0001
2CDS200946R0002
2CDS200946R0003
2CDS200970R0001
2CDS200970R0002
2CSS200911R0001
2CSS200911R0002
2CSS200911R0003
2CSS200911R0004
2CSS200911R0005
2CSS200911R0006
Description
CMS-100PS
CMS-101PS
CMS-102PS
S2C-A1 - Shunt Trip
S2C-A2 - Shunt Trip
S2C-H6R - Auxiliary Contact
S2C-NT - Hand Operated Neutral
S2C-S/H6R - Signal / Auxiliary Contact
S2C-H11L - Auxiliary Contact
S2C-H20L - Auxiliary Contact
S2C-H02L - Auxiliary Contact
S2C-H6-11R - Auxiliary Contact
S2C-H6-20R - Auxiliary Contact
S2C-H6-02R - Auxiliary Contact
S2C-H01 - Auxiliary Contact
S2C-H10 - Auxiliary Contact
S2C-UA 12 DC - Undervoltage release
S2C-UA 24 AC - Undervoltage release
S2C-UA 48 AC - Undervoltage release
S2C-UA 110 AC - Undervoltage release
S2C-UA 230 AC - Undervoltage release
S2C-UA 400 AC - Undervoltage release
Type
CMS-100PS
CMS-101PS
CMS-102PS
S2C-A1
S2C-A2
S2C-H6R
S2C-NT
S2C-S/H6R
S2C-H11L
S2C-H20L
S2C-H02L
S2C-H6-11R
S2C-H6-20R
S2C-H6-02R
S2C-H01
S2C-H10
S2C-UA 12 DC
S2C-UA 24 AC
S2C-UA 48 AC
S2C-UA 110 AC
S2C-UA 230 AC
S2C-UA 400 AC
Filter
Qty
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Unit Of Measure
piece
piece
piece
piece
piece
piece
piece
piece
piece
piece
piece
piece
piece
piece
piece
piece
piece
piece
piece
piece
piece
piece
Identifier
2CSS200911R0007
2CSS200911R0008
2CSS200911R0009
2CSS200911R0010
2CSS200998R0001
2CSS200999R0001
2CSS201997R0013
2CSS203997R0013
2CSS204997R0013
GHS2001901R0003
Description
DC - Undervoltage release
S2C-UA 24
S2C-UA 48 DC - Undervoltage release
S2C-UA 110 DC - Undervoltage release
S2C-UA 230 DC - Undervoltage release
S2C-BP - Mechanical tripping device
S2C-EST - Plug-in base
S2C-CM1 - Motor operating device
S2C-CM2/3 - Motor operating device
S2C-CM4 - Motor operating device
S2C-DH - Mechanical Accessories
Type
24 DC
S2C-UA
S2C-UA 48 DC
S2C-UA 110 DC
S2C-UA 230 DC
S2C-BP
S2C-EST
S2C-CM1
S2C-CM2/3
S2C-CM4
S2C-DH
Qty
1
1
1
1
1
1
1
1
1
1
Unit Of Measure
piece
piece
piece
piece
piece
piece
piece
piece
piece
piece
