2300 SERIES MULTI-POLE REED RELAYS
2300 Series Multi-Pole Reed Relays

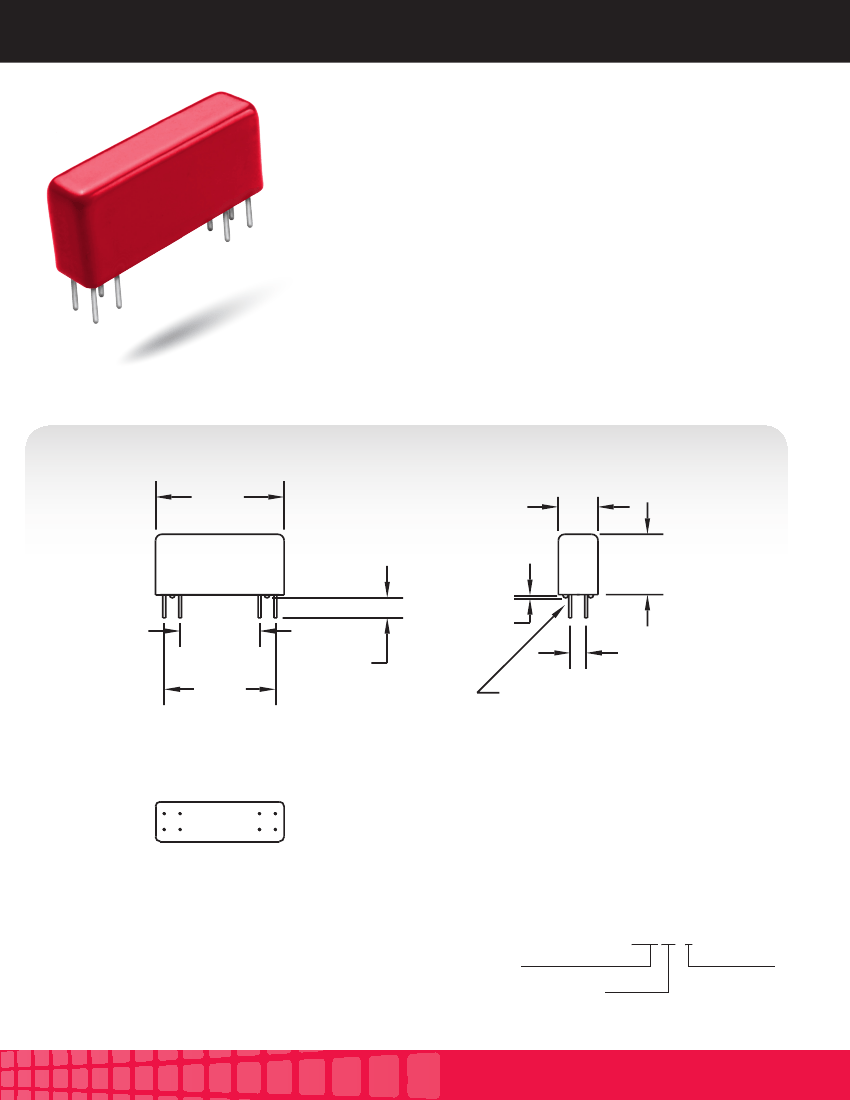

The Coto 2300 series is designed to offer the densest packaging available in a multi-
pole reed relay . The size and footprint of the 2300 series complement the 2200 & 2900
series relays . The 1 Form C model is constructed with individual switch capsules for
the normally open and magnetically biased normally closed contacts which are more
reliable than the spring actuated 1 Form C reed switches . Custom pin-outs as well as
custom designs are available to meet particular applications .
2300 Series Features
u
Smallest Multi-pole Relay: 0 .056 sq . inches/pole (3 pole relay)
u
Up to 3 Form A or 2 Form C Contacts
u
Hermetically Sealed Contacts
u
Long Life / High Reliability
u
Magnetically Shielding Steel Shell
u
Optional Electrostatic Shield (on models 2332 & 2341)
u
RoHS compliant
DIMENSIONS
in Inches (Millimeters)
.810
(20.57)
.210
(5.33)
.370
(9.40)
.500
(12.7)
.700
(17.78)
.012
(0.30)
.135
(3.43)
.018 Dia. pins
(0.45)
.100
(2.54)
1 2
3 4
8 7
6 5
Bottom View
Ordering Information
Part Number 23XX-XX-0X0
Model Number
Shielding Options
3
2332 (2 Form A)
2332 or 2341 only
Coil Voltage
2333 (3 Form A)
0=No Shielding
05=5 volts
2341 (1 Form C)
1=Electrostatic Shield
2342 (2 Form C) 12=12 volts
2=Coaxial Shield
14 | page
tel: (401) 943.2686
|
fax: (401) 942.0920
MODEL NUMBER
Parameters
COIL SPECS.
Nom. Coil Voltage
Coil Resistance
Operate Voltage
Release Voltage
+/- 10%, 25° C
Must Operate by
Must Release by
2332
Test Conditions
Units
VDC
Ω
VDC - Max.
VDC - Min.
2333
3 Form A
5 12
175 1000
3.8 9.0
0.4 1.0
2341
2,4
1 Form C
5 12
230 1000
3.8 9.0
0.4 1.0
2342
2 Form C
5 12
175 1000
3.8 9.0
0.4 1.0
2 Form A
5 12
175 1000
3.8 9.0
0.4 1.0
CONTACT RATINGS
Switching Voltage
Switching Current
Carry Current
Contact Rating
Life Expectancy-Typical
1
Static Contact
Resistance (max. init.)
Dynamic Contact
Resistance (max. init.)
Max DC/Peak AC Resist.
Max DC/Peak AC Resist.
Max DC/Peak AC Resist.
Max DC/Peak AC Resist.
Signal Level 1.0V, 10mA
50mV, 10mA
0.5V, 50mA
at 100 Hz, 1.5 msec
Volts
Amps
Amps
Watts
x 10
6
Ops.
Ω
Ω
200
0.5
1.5
10
500
0.150
0.200
200
0.5
1.5
10
500
0.150
0.200
200
0.5
1.5
10
500
0.150
0.200
100
0.25
0.5
3
100
0.200
0.250
RELAY SPECIFICATIONS
Insulation Resistance
(minimum)
Capacitance - Typical
Across Open Contacts
Dielectric Strength
(minimum)
Operate Time -
including bounce - Typical
Release Time - Typical
Between all Isolated Pins
at 100V, 25°C, 40% RH
No Shield
Shield Guarding
Between Contacts
Contacts to Shield
Contacts/Shield to Coil
At Nominal Coil Voltage,
30 Hz Square Wave
Ω
pF
pF
VDC/peak AC
VDC/peak AC
VDC/peak AC
msec.
msec.
Top View
3
:
Dot stamped on top of relay refers to pin #1 location
Grid = .1”x.1” (2.54mm x 2.54mm)
5
6
10
12
0.8
0.2
250
1000
1000
0.5
0.15
4
3
5
6
10
12
0.8
N/A
250
N/A
1000
0.5
0.15
4
3
5
6
10
12
1.7
0.7
250
1000
1000
0.5
0.5
4
3
5
6
10
9
2.0
N/A
200
N/A
1000
1.5
2.0
4
3
7
8
2
1
7
8
2
1
7
8
2
1
7
8
2
1
Notes:
1
2
3
4
Consult factory for life expectancy at other switching loads . Resistance >0 .5Ω defines end of life or failure to open .
Break-before-make action on Form C Model 2341 is not guaranteed . Consult factory if break-before-make is required .
Electrostatic shield (2332 & 2341 only) is connected to pin #6 . Coaxial shield is connected to pins #6 and #7 .
This relay is polarity sensitive . Pin #3 MUST be positive .
Environmental Ratings:
Storage Temp:
-35°C to
+
100°C;
Operating Temp:
-20°C to
+
85°C;
Solder Temp:
270°C max; 10 sec . max
All electrical parameters measured at 25°C unless otherwise specified .
Vibration:
20 G’s to 2000 Hz;
Shock:
50 G’s
For most recent data visit www.cotorelay.com
COTO TECHNOLOGY, INC.
page |
15
