81DA
Vishay Sprague
Aluminum Capacitors
+ 105 °C, Snap-In
FEATURES
•
Improved performance
•
Operating temperature to + 105 °C
•
High ripple current capability
•
Low ESR
•
Replaces type 81D
Fig.1 Component Outlines
Pb-free
Available
QUICK REFERENCE DATA
DESCRIPTION
Noal case size
ØD x L in mm
Operating temperature
Rated capacitance
range, C
R
Tolerance on C
R
Rated voltage range,
U
R
Termination
Life validation test
at 105 °C
VALUE
0.87" x 1.00" (22.0 x 25.0)
to 1.38" x 3.18" (35.0 x 80.0)
- 40 °C to + 105 °C
47 µF to 180 000 µF
± 20 %
6.3 WVDC to 400 WVDC
Snap in
2000 h:
Δ
CAP
≤
15 % from initial
measurement.
Δ
ESR
≤
1.5 x initial
specified limit.
Δ
DCL
≤
initial specified
limit
500 h:
Δ
CAP
≤
15 % from initial
measurement.
Δ
ESR
≤
1.3 x initial
specified limit.
Δ
DCL
≤
2 x initial
specified limit
I = K CV
K = 4.0 at + 25 °C
I in µA, C in µF, V in Volts
RIPPLE CURRENT MULTIPLIERS
TEMPERATURE
AMBIENT TEMPERATURE
+ 55 °C
+ 65 C
+ 75 °C
+ 85 °C
+ 95 °C
+ 105 °C
FREQUENCY (Hz)
WVDC
0 - 49
50 - 199
200 - 400
50 TO 60
0.85
0.83
0.80
300 TO 1000
1.10
1.15
1.30
1000 AND
UP
1.15
1.20
1.40
MULTIPLIERS
1.5
1.34
1.2
1.0
0.77
0.45
Shelf life at 85 °C
DC leakage current
5 min charge time
DIMENSIONS
in inches (millimeters)
DIAMETER
CASE
CODE
HA
HB
HD
JA
JB
JC
JD
JE
KA
KB
KC
KD
KE
www.vishay.com
234
D + 0.04 - 0 (+ 1.0 - 0)
0.87 (22.0)
0.87 (22.0)
0.87 (22.0)
1.00 (25.0)
1.00 (25.0)
1.00 (25.0)
1.00 (25.0)
1.00 (25.0)
1.18 (30.0)
1.18 (30.0)
1.18 (30.0)
1.18 (30.0)
1.18 (30.0)
LENGTH
L ± 0.08 (2.0)
1.00 (25.0)
1.18 (30.0)
1.57 (40.0)
1.00 (25.0)
1.18 (30.0)
1.38 (35.0)
1.57 (40.0)
2.00 (50.0)
1.00 (25.0)
1.18 (30.0)
1.38 (35.0)
1.57 (40.0)
2.00 (50.0)
STYLE 2
TYPICAL
WEIGHT
(g)
16.0
19.0
24.0
20.0
24.0
27.0
31.0
38.0
30.0
35.0
39.0
44.0
53.0
DIAMETER
CASE
CODE
MB
MC
MD
ME
MF
MG
NA
NB
NC
ND
NE
NF
NG
D + 0.04 - 0 (+ 1.0 - 0)
1.38 (35.0)
1.38 (35.0)
1.38 (35.0)
1.38 (35.0)
1.38 (35.0)
1.38 (35.0)
1.58 (40.0)
1.58 (40.0)
1.58 (40.0)
1.58 (40.0)
1.58 (40.0)
1.58 (40.0)
1.58 (40.0)
LENGTH
L ± 0.08 (2.0)
1.18 (30.0)
1.38 (35.0)
1.57 (40.0)
2.00 (50.0)
2.50 (63.0)
3.18 (80.0)
1.00 (25.0)
1.18 (30.0)
1.38 (35.0)
1.57 (40.0)
2.00 (50.0)
2.50 (63.0)
3.18 (80.0)
STYLE 2
TYPICAL
WEIGHT
(g)
48.0
54.0
61.0
74.0
91.0
113.0
48.0
58.0
66.0
81.0
103.0
128.0
183.0
For technical questions, contact: aluminumcaps4@vishay.com
Document Number: 42063
Revision: 26-Aug-08
81DA
Aluminum Capacitors
+ 105 °C, Snap-In
DIMENSIONS
in inches (millimeters)

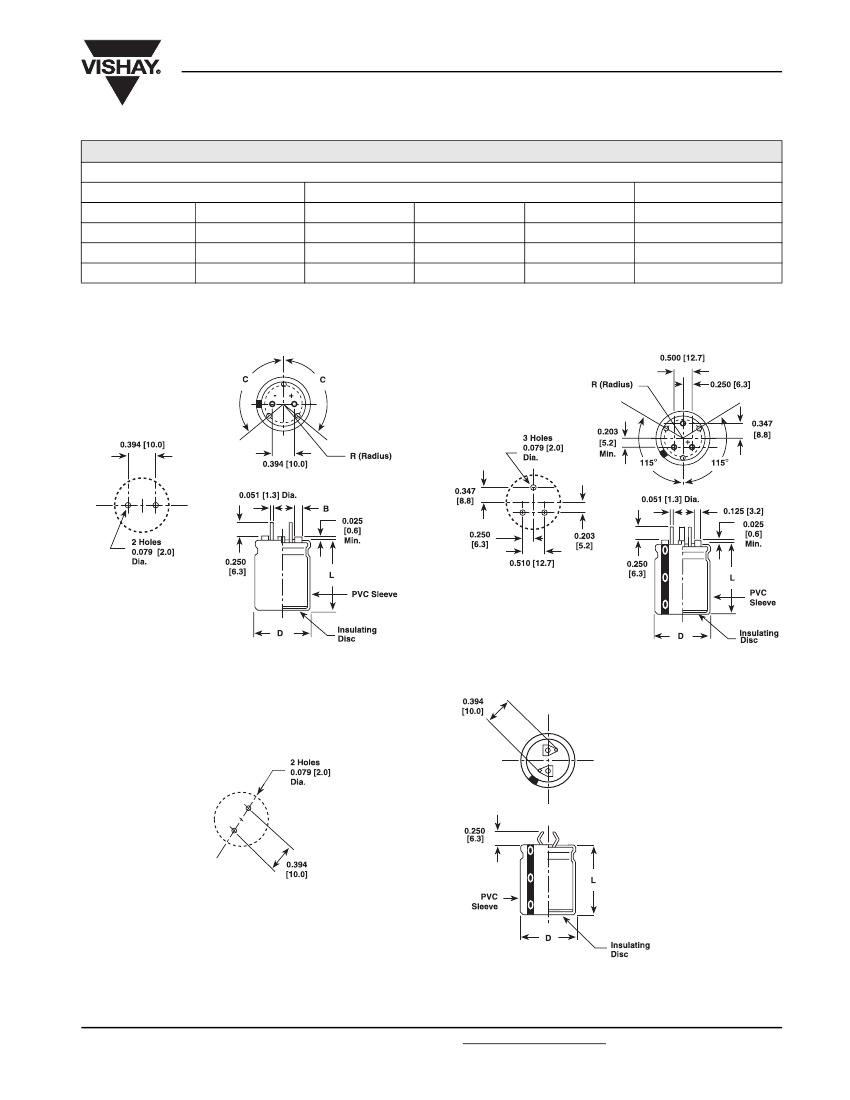

CIRCUIT BOARD MOUNT TERMINAL DIMENSIONS
(1)
DIAMETER
D
1.00 (25.0)
1.18 (30.0)
1.38 (35.0)
CASE CODE
J
K
M
B
0.093 (2.4)
0.125 (3.2)
0.125 (3.2)
STYLE A
R
0.301 (7.6)
0.363 (9.2)
0.458 (11.6)
C
140°
120°
120°
STYLE B
R
N/A
0.391 (9.9)
0.458 (11.6)
Vishay Sprague
Note
(1)
Style A and B not available in 0.87" (22.0 mm) diameter units
DIMENSIONS AND AVAILABLE FORMS
Style A
Style B
Style D
Document Number: 42063
Revision: 26-Aug-08
For technical questions, contact: aluminumcaps4@vishay.com
www.vishay.com
235
81DA
Vishay Sprague
Aluminum Capacitors
+ 105 °C, Snap-In

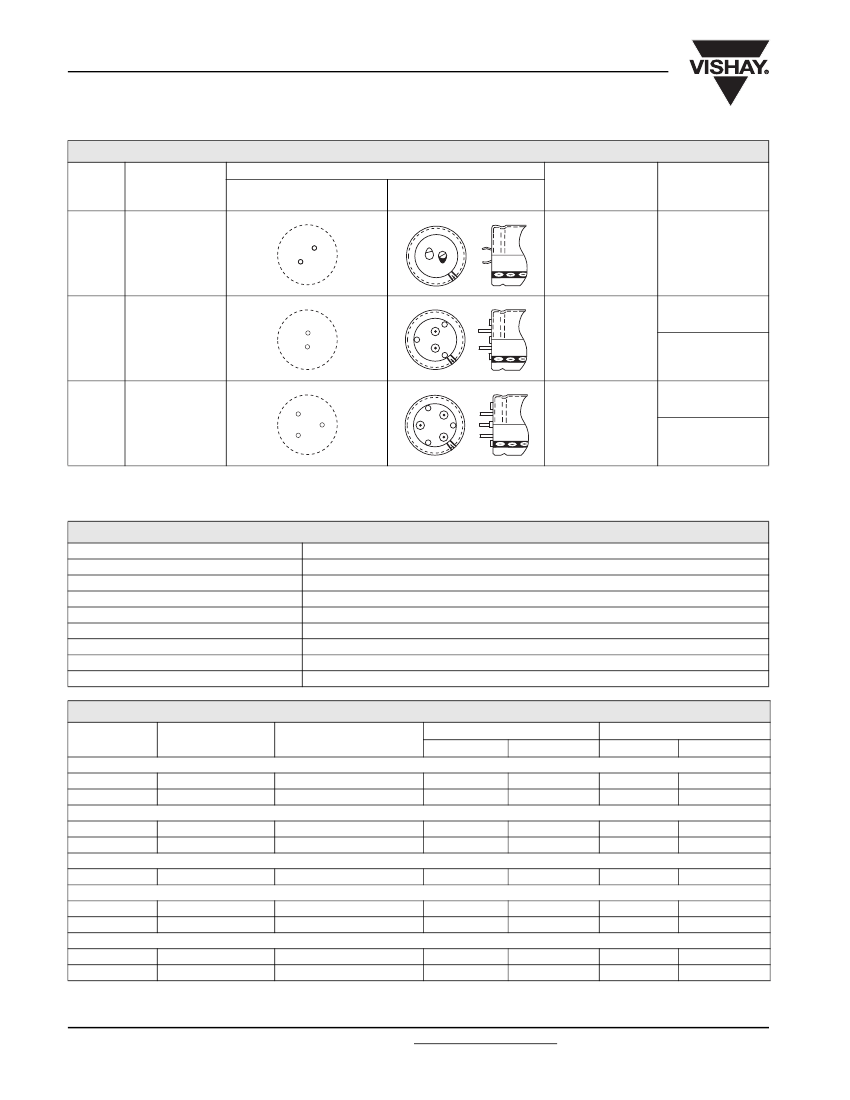

TERMINAL CONFIGURATION
in inches (millimeters)
LEAD
CODE
OUTLINE DRAWINGS
DESCRIPTION
MOUNTING
CONFIGURATION
TERMINAL
CONFIGURATION
AVAILABLE
DIAMETERS
AVAILABLE
VOLTAGES AND
TYPES
D
Standard
2 pin snap-in
0.87 (22.0) - H
0.98 (25.0) - J
1.18 (30.0) - K
1.38 (35.0) - M
All voltages
81D, 81DA
82D, 82DA
A
2 straight wire lead
molded cover with
standoffs
+
0.98 (25.0) - J
1.18 (30.0) - K
1.38 (35.0) - M
All voltages
82D, 82DA
V < = 250 VDC
81D, 81DA
All voltages
82D, 82DA
V
≤
250 VDC
81D, 81DA
B
3 straight wire lead
molded cover with
standoffs
+
1.18 (30.0) - K
1.38 (35.0) - M
ORDERING EXAMPLE
Electrolytic capacitor 81DA series:
81DA 271 M 250 HD 2 D E3
DESCRIPTION
CODE
81DA
271
M
250
HD
2
D
E3
EXPLANATION
product type
capacitance value (270 µF)
tolerance (M = ± 20 %)
voltage rating at 105 °C (250 V)
can size (see dimensions table)
pvc insulating sleeve
terminal style (D = 2 pin snap-in)
RoHS compliant
ELECTRICAL DATA AND ORDERING INFORMATION
CAPACITANCE
(µF)
10 000.0
15 000.0
4700.0
10 000.0
6800.0
330.0
820.0
270.0
560.0
PART NUMBER
NOMINAL CASE SIZE
DxL
MAX. ESR at 25 °C (mΩ)
120 H
Z
20 to 40 kH
Z
37.2
33.0
60.3
41.0
33.0
184.4
85.5
159.5
113.0
MAX. RIPPLE at + 85 °C (A)
120 H
Z
5.16
6.17
3.53
5.19
5.82
1.81
3.37
1.83
2.82
20 to 40 kH
Z
6.64
7.30
4.76
5.94
7.05
2.67
4.84
2.93
4.23
81DA103M025JC2D
81DA153M025KC2D
81DA472M035JA2D
81DA103M035KB2D
81DA682M050KC2D
81DA331M200JB2D
81DA821M200KD2D
81DA271M250HD2D
81DA561M250MB2D
25 WVDC at + 105 °C, SURGE = 30 V
0.984 x 1.378 (25.0 x 35.0)
48.9
1.181 x 1.378 (30.0 x 35.0)
42.2
35 WVDC at + 105 °C, SURGE = 40 V
0.984 x 0.984 (25.0 x 25.0)
83.3
1.181 x 1.181 (30.0 x 30.0)
53.4
50 WVDC at + 105 °C, SURGE = 63 V
1.181 x 1.378 (30.0 x 50.0)
47.5
200 WVDC at + 105 °C, SURGE = 250V
0.984 x 1.181 (25.0 x 30.0)
399.3
1.181 x 1.575 (30.0 x 40.0)
175.4
250 WVDC at + 105 °C, SURGE = 300V
0.866 x 1.575 (22.0 x 40.0)
408.9
1.378 x 1.181 (35.0 x 30.0)
254.0
Note
• Other ratings and voltages available on special order
www.vishay.com
236
For technical questions, contact: aluminumcaps4@vishay.com
Document Number: 42063
Revision: 26-Aug-08
