BCP53 datasheet, PDF - EEWORLD Datasheet

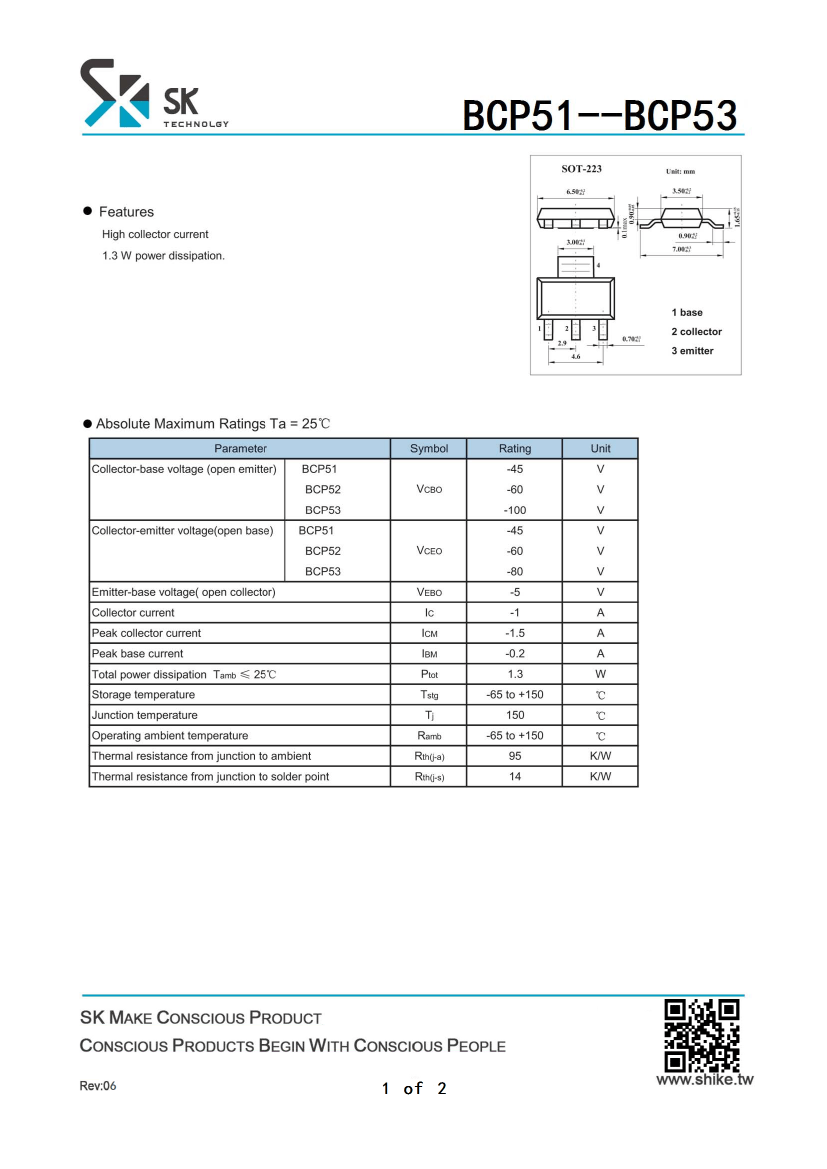

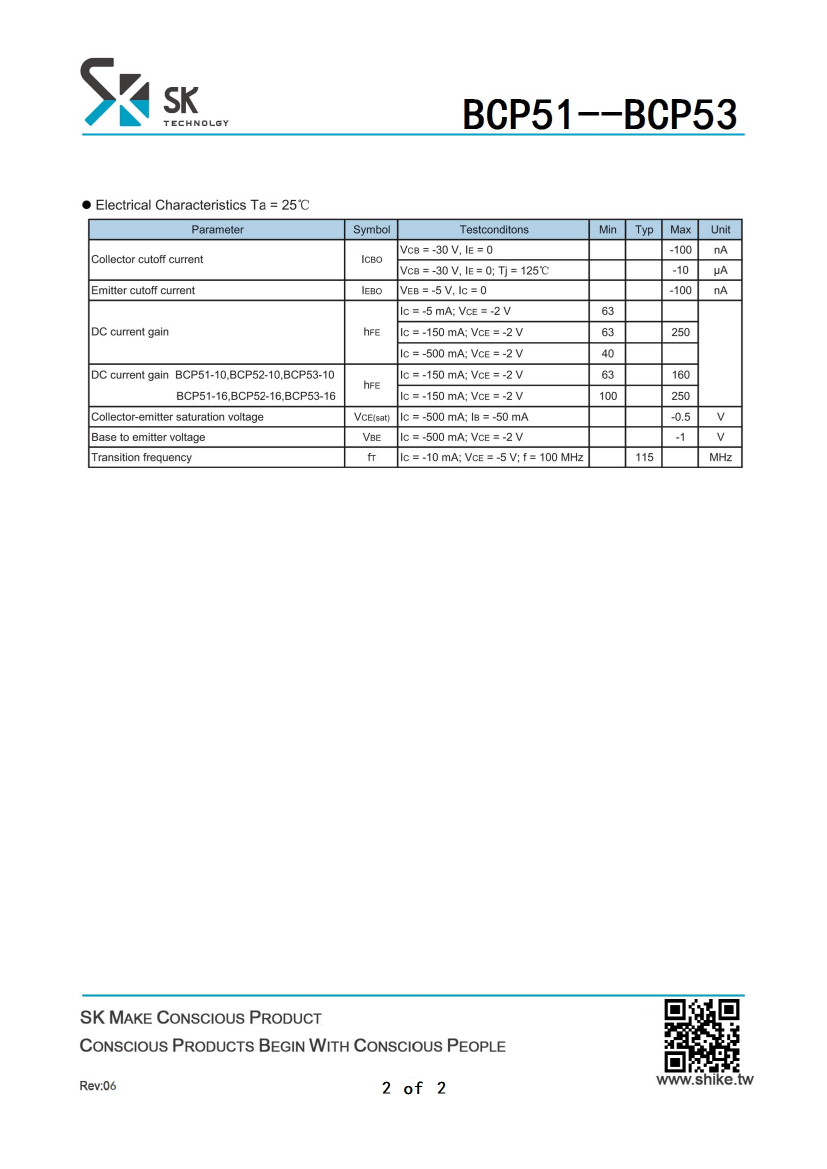

BCP53: Description1000 mA, 80 V, PNP, Si, SMALL SIGNAL TRANSISTOR; Categorysemiconductor Discrete semiconductor; File Size539KB，2 Pages; ManufacturerSKTECHNOLGY; Websitehttp://www.shike.tw/

Download Datasheet Parametric Compare View All

BCP53 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BCP53	-	-	View	Buy Now

1000 mA, 80 V, PNP, Si, SMALL SIGNAL TRANSISTOR

Parameter Name	Attribute value
Number of terminals	4
Transistor polarity	PNP
Maximum collector current	1 A
Maximum Collector-Emitter Voltage	80 V
state	TRANSFERRED
packaging shape	RECTANGULAR
Package Size	SMALL OUTLINE
surface mount	Yes
Terminal form	GULL WING
Terminal location	DUAL
Packaging Materials	PLASTIC/EPOXY
structure	SINGLE
Shell connection	COLLECTOR
Number of components	1
transistor applications	SWITCHING
Transistor component materials	SILICON
Transistor type	GENERAL PURPOSE SMALL SIGNAL
Minimum DC amplification factor	40
Rated crossover frequency	125 MHz

	BCP53	BCP51	BCP52
Description	1000 mA, 80 V, PNP, Si, SMALL SIGNAL TRANSISTOR	1 A, 45 V, PNP, Si, POWER TRANSISTOR	1 A, 45 V, PNP, Si, POWER TRANSISTOR
Number of terminals	4	4	4
Transistor polarity	PNP	PNP	PNP
Maximum collector current	1 A	1 A	1 A
Maximum Collector-Emitter Voltage	80 V	45 V	45 V
state	TRANSFERRED	ACTIVE	ACTIVE
packaging shape	RECTANGULAR	Rectangle	Rectangle
Package Size	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
surface mount	Yes	Yes	Yes
Terminal form	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	pair	pair
Packaging Materials	PLASTIC/EPOXY	Plastic/Epoxy	Plastic/Epoxy
structure	SINGLE	single	single
Shell connection	COLLECTOR	COLLECTOR	COLLECTOR
Number of components	1	1	1
transistor applications	SWITCHING	amplifier	amplifier
Transistor component materials	SILICON	silicon	silicon
Transistor type	GENERAL PURPOSE SMALL SIGNAL	universal power supply	universal power supply
Minimum DC amplification factor	40	25	25
Rated crossover frequency	125 MHz	115 MHz	115 MHz
Lead-free	-	Yes	Yes
EU RoHS regulations	-	Yes	Yes
China RoHS regulations	-	Yes	Yes
terminal coating	-	tin	tin
