Part Number

Search

BCW61D

Description
200 mA, 32 V, PNP, Si, SMALL SIGNAL TRANSISTOR
Categorysemiconductor    Discrete semiconductor
File Size787KB,3 Pages
ManufacturerSKTECHNOLGY
Websitehttp://www.shike.tw/
Download Datasheet Parametric Compare View All

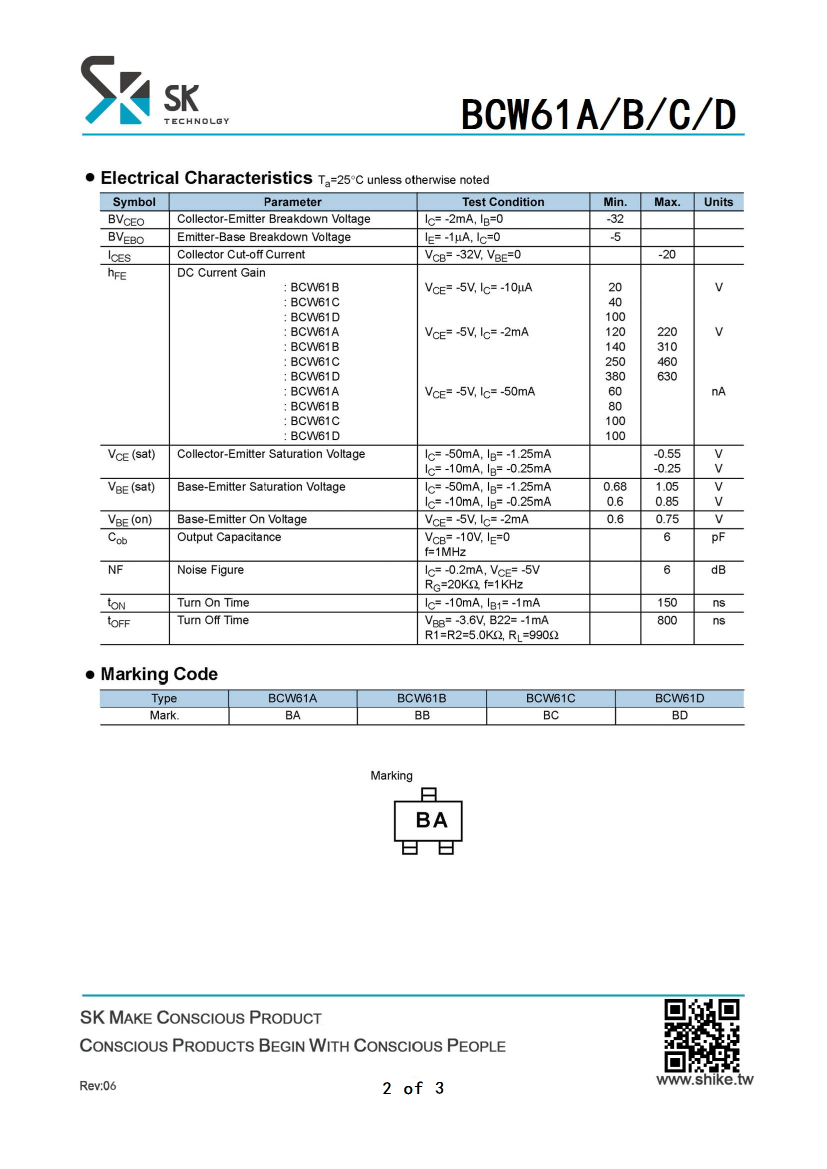

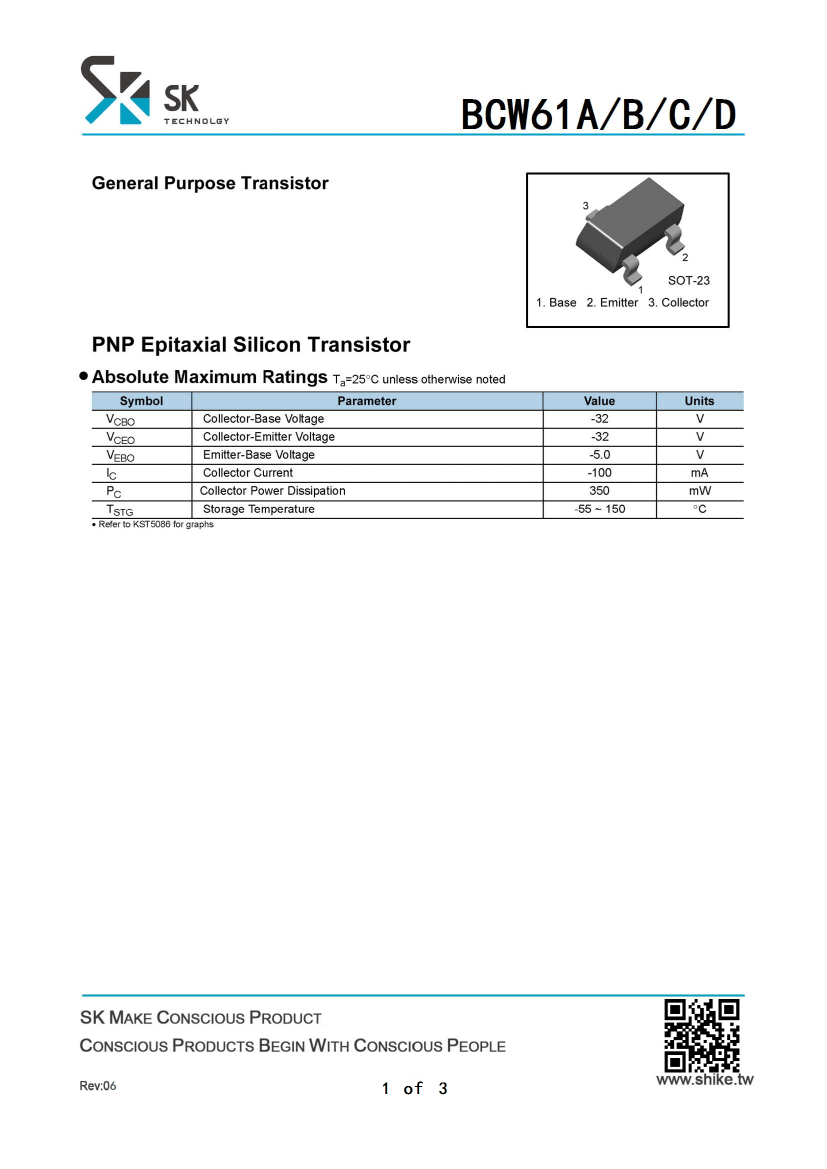

BCW61D Overview

200 mA, 32 V, PNP, Si, SMALL SIGNAL TRANSISTOR

BCW61D Parametric

Parameter NameAttribute value
Number of terminals3
Transistor polarityPNP
Maximum on-time150 ns
Maximum off time800 ns
Maximum collector current0.2000 A
Maximum Collector-Emitter Voltage32 V

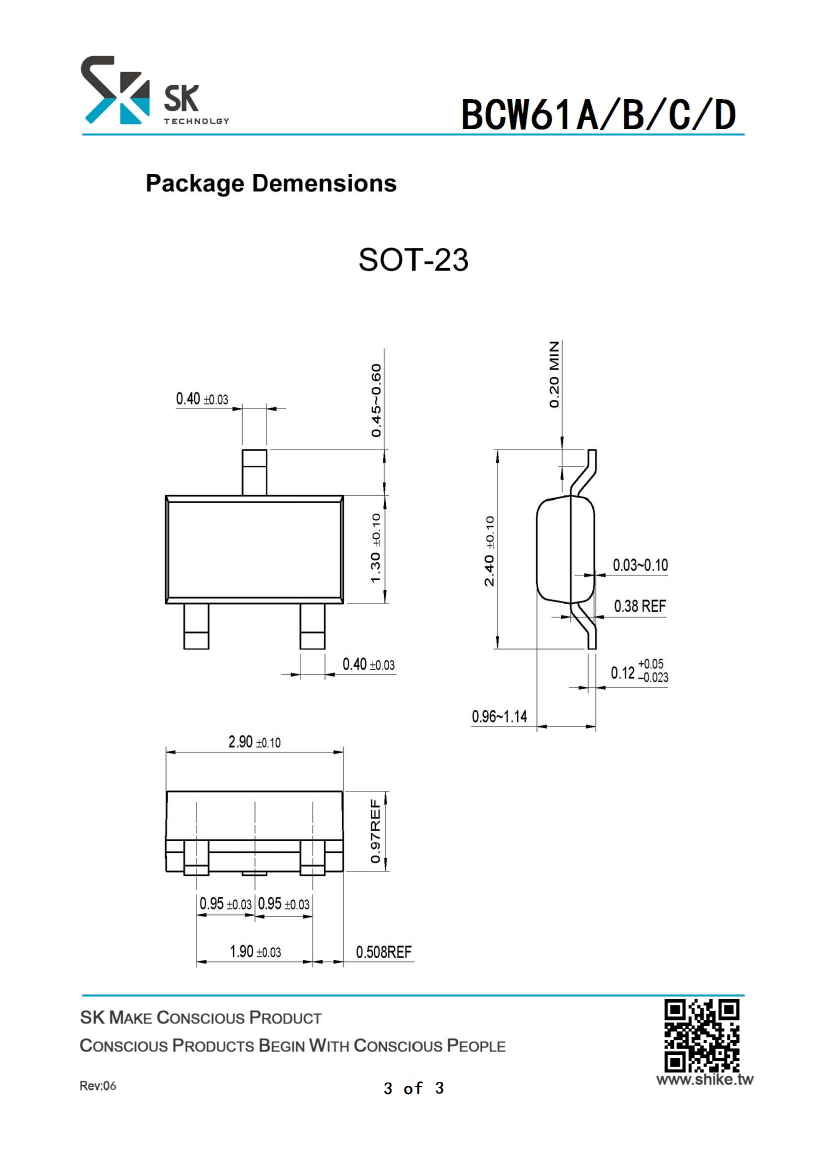

Processing package descriptionPlastic, SOT-23, 3 PIN
Lead-freeYes
EU RoHS regulationsYes
China RoHS regulationsYes
stateACTIVE
packaging shapeRectangle
Package SizeSMALL OUTLINE
surface mountYes
Terminal formGULL WING
terminal coatingtin
Terminal locationpair
Packaging MaterialsPlastic/Epoxy
structuresingle
Number of components1
transistor applicationsswitch
Transistor component materialssilicon
Maximum ambient power consumption0.2500 W
Transistor typeUniversal small signal
Minimum DC amplification factor110
Rated crossover frequency100 MHz

BCW61D Related Products

BCW61D BCW61A BCW61C BCW61B
Description 200 mA, 32 V, PNP, Si, SMALL SIGNAL TRANSISTOR 200 mA, 32 V, PNP, Si, SMALL SIGNAL TRANSISTOR 200 mA, 32 V, PNP, Si, SMALL SIGNAL TRANSISTOR 200 mA, 32 V, PNP, Si, SMALL SIGNAL TRANSISTOR
Number of terminals 3 3 3 3
Transistor polarity PNP PNP PNP PNP
Maximum on-time 150 ns 150 ns 150 ns 150 ns
Maximum off time 800 ns 800 ns 800 ns 800 ns
Maximum collector current 0.2000 A 0.2000 A 0.2000 A 0.2000 A
Maximum Collector-Emitter Voltage 32 V 32 V 32 V 32 V
Processing package description Plastic, SOT-23, 3 PIN Plastic, SOT-23, 3 PIN Plastic, SOT-23, 3 PIN Plastic, SOT-23, 3 PIN
Lead-free Yes Yes Yes Yes
EU RoHS regulations Yes Yes Yes Yes
China RoHS regulations Yes Yes Yes Yes
state ACTIVE ACTIVE ACTIVE ACTIVE
packaging shape Rectangle Rectangle Rectangle Rectangle
Package Size SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE
surface mount Yes Yes Yes Yes
Terminal form GULL WING GULL WING GULL WING GULL WING
terminal coating tin tin tin tin
Terminal location pair pair pair pair
Packaging Materials Plastic/Epoxy Plastic/Epoxy Plastic/Epoxy Plastic/Epoxy
structure single single single single
Number of components 1 1 1 1
transistor applications switch switch switch switch
Transistor component materials silicon silicon silicon silicon
Maximum ambient power consumption 0.2500 W 0.2500 W 0.2500 W 0.2500 W
Transistor type Universal small signal Universal small signal Universal small signal Universal small signal
Minimum DC amplification factor 110 110 110 110
Rated crossover frequency 100 MHz 100 MHz 100 MHz 100 MHz
