Models Available
IR33V7LR20
1 Relay NTC/PTC/PT1000
IR33V9MR20
1 Relay Universal Input
IR33W7LR20
Relay NTC/PTC/PT1000
IR33W9MR20
Relay Universal Input
IR33Z7LR20
4 Relay NTC/PTC/PT1000
IR33Z9MR20
4 Relay Universal Input
IR33A7LR20
4 SSR NTC/PTC/PT1000
IR33A9MR20
4 SSR Universal Input
Product Features
Temperature input or universal input
Relay or SSR output versions
independent control loops
Auto-tuning PID control
Real time clock
Infrared receiver and buzzer
Transformers available for 110V or 30V
Plug-in terminals
IR33 Universal Electronic Controllers
The IR33 universal electronic controllers replace the IR3 range, offering
additional features such as auto-tuning PID control and real time clock
for managing working cycles and logging alarms. Temperature only
versions are available with NTC, PTC or PT1000 inputs, whilst the
universal versions can also accept PT100, J and K type thermocouples,
DC Voltage and DC mA inputs.
The controllers feature a simple user interface, two independent control
loops and are housed in a compact panel mounting enclosure. All versions
can be connected to a network for monitoring and programming, using
the optional RS-485 serial interface. The IR33 controllers are powered
from 1 to 4Vac/dc and optional transformers are available for powering
the controllers from 110Vac or 30Vac.
i
For digital temperature or process monitoring and control

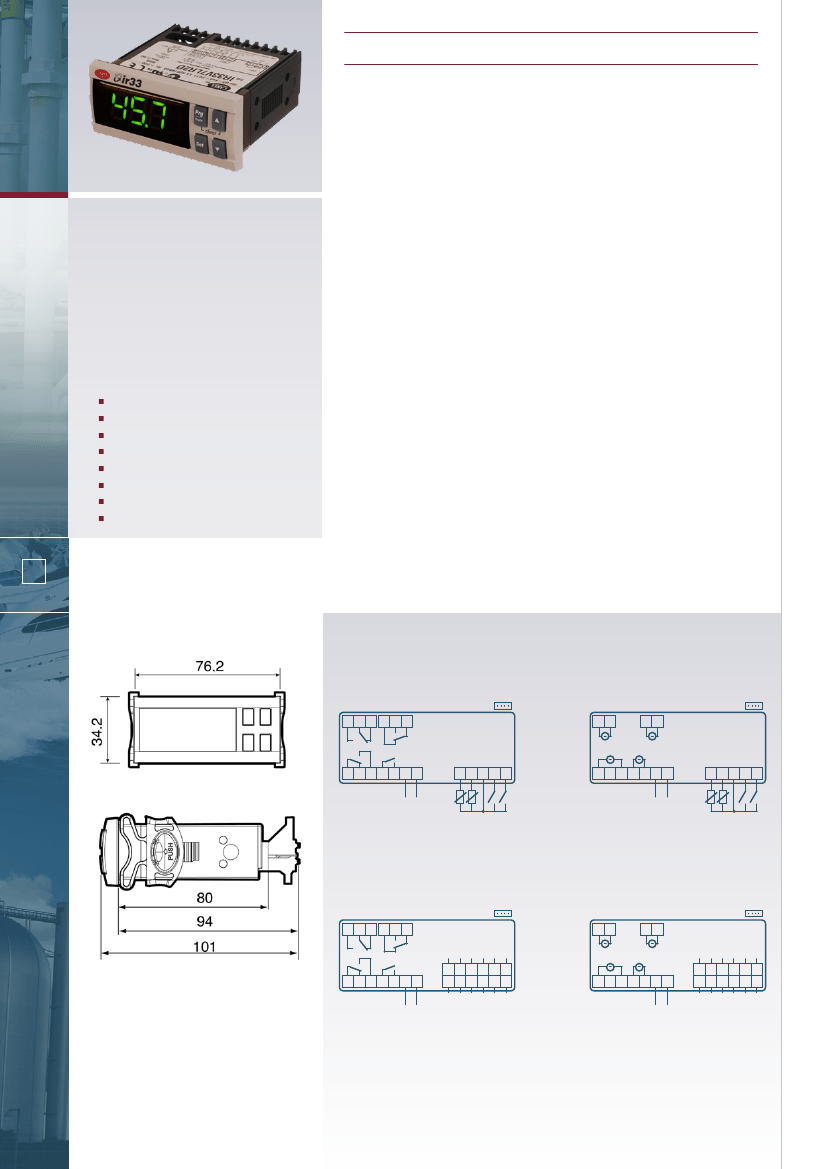

Dimensions
Connections
IR33V7LR20 / IR33W7LR20 / IR33Z7LR20
OUTPUT
3
OUTPUT
4
SERIAL LINK &
PROGRAM KEY
IR33A7LR20
OUTPUT
3
OUTPUT
4
SERIAL LINK &
PROGRAM KEY
13 14 15 16 17 18
13 14
+
+
17 18
+
+
1 3 4 5 6 7
OUTPUT OUTPUT
1
POWER
SUPPLY
8 9 10 11 1
B1 B
DI1 DI
1 3 4 5 6 7
OUTPUT OUTPUT
1
POWER
SUPPLY
8 9 10 11 1
B1 B
DI1 DI
GND
GND
IR33V7LR0 - OUTPUT 1 ONLY
IR33W7LR0 - OUTPUTS 1 AND
IR33Z7LR0 - OUTPUTS 1, , 3 AND 4
IR33V9MR20 / IR33W9MR20 / IR33Z9MR20
OUTPUT
3
OUTPUT
4
SERIAL LINK &
PROGRAM KEY
IR33A9MR20
OUTPUT
3
OUTPUT
4
SERIAL LINK &
PROGRAM KEY
13 14 15 16 17 18
DI GND -B +B B +1V
13 14
+
17 18
+
DI GND -B +B B +1V
1 3 4 5 6 7
5 6 7 8 9 30
19 0 1 3 4
DI1 GND -B1 +B1 B1 +5V
+
+
1 3 4 5 6 7
OUTPUT OUTPUT
1
POWER
SUPPLY
5 6 7 8 9 30
19 0 1 3 4
DI1 GND -B1 +B1 B1 +5V
Panel cutout 71mm x 9mm (-0.0/+0.5)
Allow 95mm x 40mm clearance
around controller for panel clip
OUTPUT OUTPUT
1
POWER
SUPPLY
IR33V9MR0 - OUTPUT 1 ONLY
IR33W9MR0 - OUTPUTS 1 AND
IR33Z9MR0 - OUTPUTS 1, , 3 AND 4
All dimensions in mm
Tempatron
Email: sales@tempatron.co.uk
Web: www.tempatron.co.uk
Continued...
Ordering information
Model
3
Code
IR33V
IR33W
IR33Z
IR33A
Description
1 Relay Output Digital Controller
Relay Output Digital Controller
4 Relay Output Digital Controller
4 SSR Output Digital Controller
Description
NTC (-50 to 90°C)
NTC-HT (-40 to 150°C)
PTC (-50 to 150°C)
PT1000 (-50 to 150°C)
All above inputs and in addition:-
PT1000 (-199 to 800°C)
Specification
Accuracy:
±0.5% of scale range
Power Supply Voltage:
LR: 1 to 4Vac (±10%), 1 to 30Vdc
110Vac with TRA1UNI11 transformer
30Vac with TRA1UNI00 transformer
MR: 4Vac/dc
30Vac with TRA4000001 transformer
Frequency:
50/60Hz
Burden:
<3VA
Inputs:
NTC / PTC / PT1000
PT100, J/K, V, mA (universal model only)
Digital Inputs:
voltage free contacts
Contact resistance <10ohms
Closing current 6mA
Relay Output:
1, or 4 pole relay contacts
8(4)A on N.O., 6(4)A on N.C.
at 50Vac (resistive)
A on N.O. and N.C.
at 50Vac (resistive)
100,000 operations
SSR Output:
Maximum output 1V/0mA
Maximum output resistance 600 ohms
Operating Temperature & Humidity:
-10ºC to 50ºC
<90% rH (non-condensing)
Enclosure Code:
Case IP65
Weight:
IR33V: 00g
IR33W: 0g
IR33Z: 40g
IR33A: 00g
Markings:
CE marked (meets EN61010-1 low
voltage and EN50081-1/5008-1
EMC directives)
Specification subject to change without notice.
Input
Code
7
9
PT100 (-199 to 800°C)
J/K Type Thermocouples
DC Voltage 0-1V, -0.5 to +1.3V, 0-10V, 0-5V ratiometric
DC Current 0-0mA, 4-0mA
Auxiliary Power
Code
LR0
MR0
Code
TRA1UNI11
TRA1UNI00
TRA400001
IRTRUES000
IROPZKEY00
IROPZKEYA0
IROPZ485S0
Example
IR33V7LR20
Description
1 to 4Vac, 1 to 30Vdc
4Vac/dc
Description
110/1Vac Transformer
40/1Vac Transformer
40/4Vac Transformer
Remote control for IR33 universal
Programming key with battery
Programming key with 30V power supply
RS485 serial communication interface
Options
Options
Temperature Probes
A range of NTC, PTC, PT100 and thermocouple temperature probes
are available to suit the IR33 controllers.
Remote Control
The infrared remote control allows access to all the main functions and
configuration parameters for easy set up of all IR33 controllers from a
distance.
Programming Key
All IR33 controllers can be programmed quickly using the optional
programming key, even when not powered, reducing the risk of errors.
Tempatron: Eltime House, Hall Road, Maldon, Essex, CM9 4NF UK.
Tempatron Industrial Controls is a division of Eltime Ltd.
© Eltime Ltd. Tempatron IR33 Controllers 04/011
