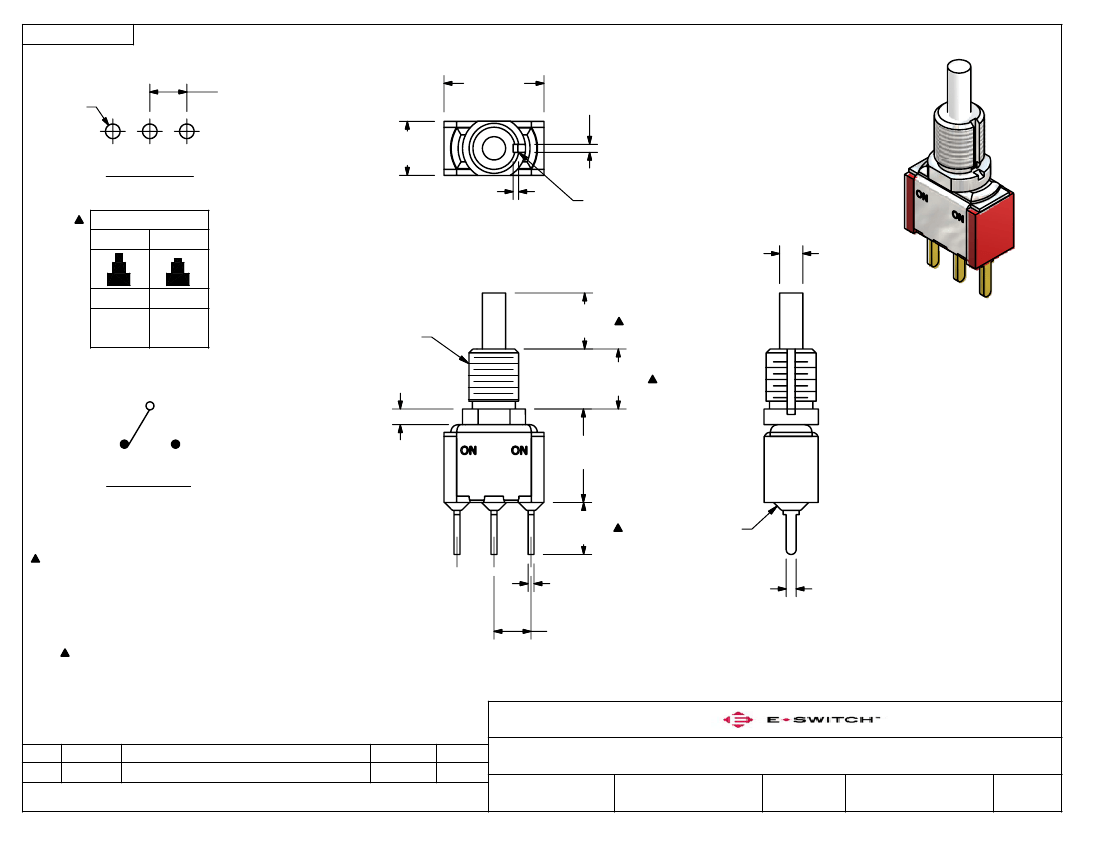

SHEET 1 OF 1
12.70
[.500 in]
[.073 in]
6.86
[.270 in]
P.C. MOUNTING
.72
[.028 in]
SWITCH FUNCTION
POS. 1
POS. 2
n
1.85
4.70
[.185 in]TYP.
1.02
[.040 in]
KEYWAY
[.116 in]
ON
1-2
ON
2-3
1/4-40 UNS-2A
THREADS
7.11
[.280 in]
n
2.95
ISOMETRIC
7.62
[.300 in]
2
1
3
2.00
[.079 in]
11.88
[.468 in]
CIRCUIT: SPDT
NOTE:
1. ALL DIMENSIONS IN MM [INCH]
2. GENERAL TOLERANCE: X.X=±0.4
X.XX=±0.25
3. TERMINAL NUMBERS FOR REF ONLY
4. PLATING MATERIAL: SILVER
5. RATING: 3A @120VAC OR28VDC; 1A @ 250VAC
6. ELECTRIC LIFE: 50,000 MAKE-AND-BREAK CYCLES
AT FULL LOAD.
7. INSULATION RESISTANCE: 1,000 MEGA-OHM MIN.
8. DIELECTRIC STRENGTH: 1,000 V RMS @SEA LEVEL.
9. OPERATING TEMP.: -30°C to 85°C
10.
DENOTES CRITICAL PARAMETER.
11. 2002/95/EC (ROHS) COMPLIANT
12. HARDWARE TO BE SHIPPED BULK
T100011 - LOCK WASHER QTY 1
T100015 - LOCK RING QTY 1
T100000 - HEX NUT QTY 2
A
REV
18539
PCR NO
NEW RELEASE
DESCRIPTION
5/20/09
DATE
6.60
[.260 in]
1
2
3
.76
[.030 in]
4.70
[.185 in] TYP.
EPOXY SEAL
3
1.27
[.050 in]
RC
BY
TITLE
SCALE
700CSP7B60M2QEH
2:1
DATE
DR
DWG
REV
THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY
TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED
5/20/2009
RC
ST711079
A
