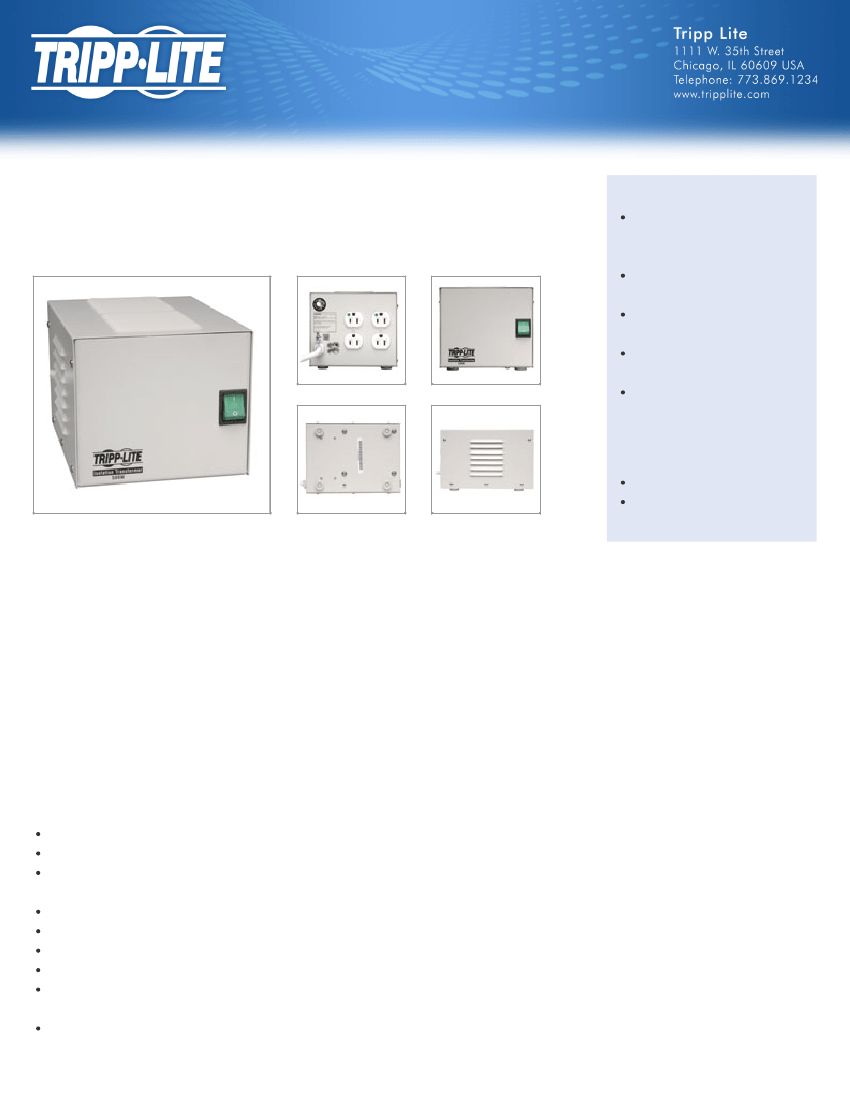

Isolation Transformer - Medical Grade line noise
reduction and spike suppression
MODEL NUMBER:
IS500HG
Highlights
Complete line isolation, noise
filtering and surge suppression;
ideal for sensitive equipment
500 watts, 4 outlets, 10-ft. power
cord
Hospital-grade plug and
receptacles
Leakage current less than 100
micoramps
Compliant with the Federal Trade
Agreements Act (TAA) for GSA
Schedule purchases
Package Includes
IS500HG Isolation Transformer
Instruction manual with warranty
information
Description
Isolator Series UL60601-1 Listed Medical Grade Isolation Transformers offer line isolation, continuous noise filtering and enhanced common mode surge
suppression. An internal low-impedance isolation transformer component offers 100% isolation from the input AC line. Full UL60601-1 medical-grade listing
with hospital-grade plug and outlet receptacles makes Isolator medical-grade transformers ideal for protection of sensitive electronic equipment in patient-care
areas. Faraday shield reduces the cumulative leakage current of the Isolator and connected equipment to levels less than 100 microamps. Secondary
neutral-to-ground bonding virtually eliminates common mode noise, providing an isolated neutral-ground reference for sensitive equipment, and an
inexpensive alternative to dedicated circuits and site electrical upgrades. Removes EMI/RFI noise, utility switching transients and harmonics generated by
other on-site loads and utility or lightning related surge conditions. Active transformer filtering provides continuous common-mode noise rejection with no
wearable parts. Unique ability to reduce surges in the worst of power environments to harmless levels. Reduces 6000V IEEE587 Cat A&B ring wave and
combination wave test surges to only 0.5V common mode. Model IS500HG includes 4 widely spaced NEMA 5-15R hospital-grade output receptacles, a 10-ft.
power cord, hospital-grade input plug, circuit breaker overload protection, and lighted power switch. Rugged all-metal unit ships ready for placement in any
industrial, medical, office or network environment. PLUG/OUTLETS: Input - NEMA 5-15P Hospital Grade; Output - 4 NEMA 5-15R Hospital Grade
ELECTRICAL: 120V AC, 60Hz, 2.1A (Requires NEMA 5-15R wall receptacle)
Features
The IS500HG Medical Grade Isolation Transformer offers line isolation and continuous noise filtering
Internal low-impedance isolation transformer with Faraday shield offers 100% isolation from the input AC line
Full UL60601-1 medical-grade listing with hospital-grade plug and outlet receptacles makes Isolator Hospital Grade transformers ideal for the protection of
sensitive electronic equipment in patient-care areas.
Reduces the cumulative leakage current of the Isolator and connected equipment to levels less than 100 microamps.
Secondary neutral-to-ground bonding eliminates common mode noise, providing an isolated ground reference for sensitive equipment
Serves as an inexpensive alternative to dedicated circuits and site electrical upgrades
Removes EMI/RFI noise, utility switching transients, load-generated harmonics and ground loops
Active transformer filtering offers continuous common-mode noise rejection with no wearable parts; unique ability to reduce surges in the worst of power
environments to harmless levels
Reduces 6000V IEEE587 Cat A&B ring wave and combination wave test surges to only 0.5V common mode
Includes 4 widely spaced NEMA 5-15R hospital-grade output receptacles, a 10-ft. power cord, hospital-grade input plug, circuit breaker overload
1/3
Includes 4 widely spaced NEMA 5-15R hospital-grade output receptacles, a 10-ft. power cord, hospital-grade input plug, circuit breaker overload
protection and lighted power switch.
Rugged all-metal unit housing; ships ready for upright tower placement in any industrial, medical, office or network environment
Specifications
OVERVIEW
Amp Capacity
Efficiency
Form Factor
Input Plug Type
Leakage Current
Let-through Voltage (Combination
Wave)
Let-through Voltage (Ring Wave)
Noise Suppression Rating
Nominal Voltage / Frequency
Output Receptacle Qty / Type
Over Current Protection
Shipping Weight
Total Harmonic Distortion
Transformer Type
Unit Dimensions (HWD/in.)
VA / Watt Capacity
4.2A at 120V AC
96%
Small tower format
NEMA 5-15P-HG
Less than 100 microamps
L-N: 250V L-G: 250V N-G: 0.5V
L-N: 20V L-G: 20V N-G: 0.5V
35-65 DB
120 /60Hz
4 NEMA 5-15R-HG
1 X THERMAL, 2 POLE, ROCKER
22.20 lbs
Less than 1%
Medical-grade, low impedance transformer-based line isolation transformer
5.75 x 6.25 x 9.25
500
INPUT
Input cord length (ft.)
Input cord length (m)
10
3.05
PHYSICAL
Unit Dimensions (HWD/in)
Unit Dimensions (HWD/cm)
Cooling method
5.75 x 6.25 x 9.25
14.61 x 15.88 x 23.50
Convection
CERTIFICATIONS
Certifications
Tested to UL60601-1
