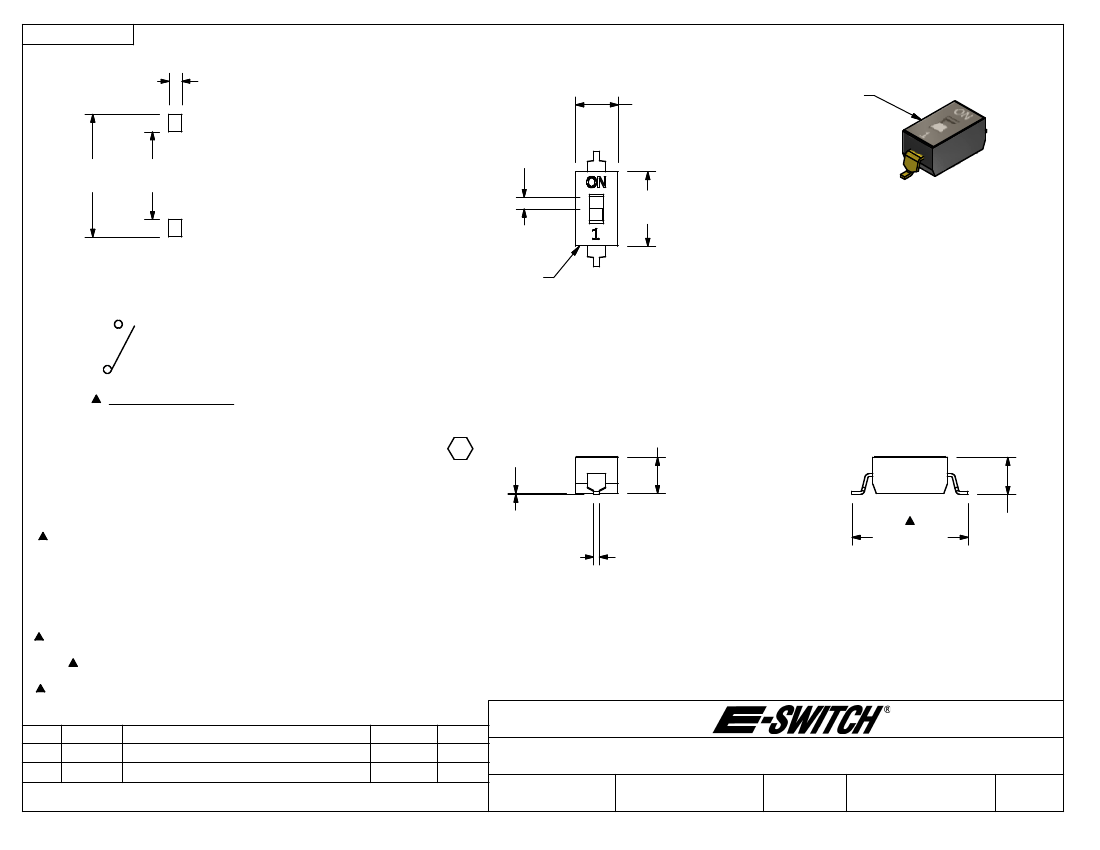

SHEET 1 OF 1
1.10
[.043 in]
3.58
[.141 in]
TRAVEL
1.00
[.039 in]
10.40
[.409 in]
7.40
[.291 in]
6.30
[.248 in]
2
KAPTON TAPE
P.C.B. MOUNTING
2
POS. 1 DESIGNATE
PIN #1 LOCATION
1
1
CIRCUIT - 1 POSITION
3.05
[.120 in]
NOTES:
1. ALL DIMENSIONS IN MM [INCH].
2. GENERAL TOLERANCE: X.X=±0.4
X.XX=±0.25
3. TERM. NOS. FOR REFERENCE ONLY.
4. CONTACT RATINGS: 25mA @24VDC. (SWITCH)
100mA @50VDC. (CARRY)
5. CONTACT MATERIAL:
CONTACTS: (MOVABLE) COPPER W/GOLD PLATE.
TERMINALS: BRASS w/GOLD PLATE.
6. INSULATION RESISTANCE; 100 MΩ MIN. @500VDC.
7. CONTACT RESISTANCE; 50 mΩ MAX INITIAL.
8. OPERATING TEMP: -20
~
C TO +85
~
C.
9. STORAGE TEMP: -40
~
C TO +85
~
C.
10. ELECTRICAL LIFE: 2000 CYCLES.
11. PACKAGE: TAPE AND REEL (800 PER REEL)
WITH ALL POLES IN THE "OFF" POSITION.
12. DENOTES CRITICAL PARAMETER.
13. DIELECTRIC STRENGTH: 500VAC MIN FOR 1 MINUTE.
14. OPERATING FORCE: 1000 GRAMS MAX.
15. 2002/95/EC (ROHS) COMPLIANT.
B
A
REV
20879
20867
PCR NO
.075 ± .075 WAS .70 MIN
RELEASED FOR PRODUCTION
DESCRIPTION
11/13/12
11/8/12
DATE
B
.075
`
.075
[.003
`
.003
in]
.50
[.020 in]
9.8
`
.3
[.39
`
.01
in]
3.13
[.123 in]
EBP
EBP
BY
TITLE
KAE01TGGR
DATE
DR
DWG
REV
THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY
TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED
SCALE
11/8/2012
EBP
N801101
B
