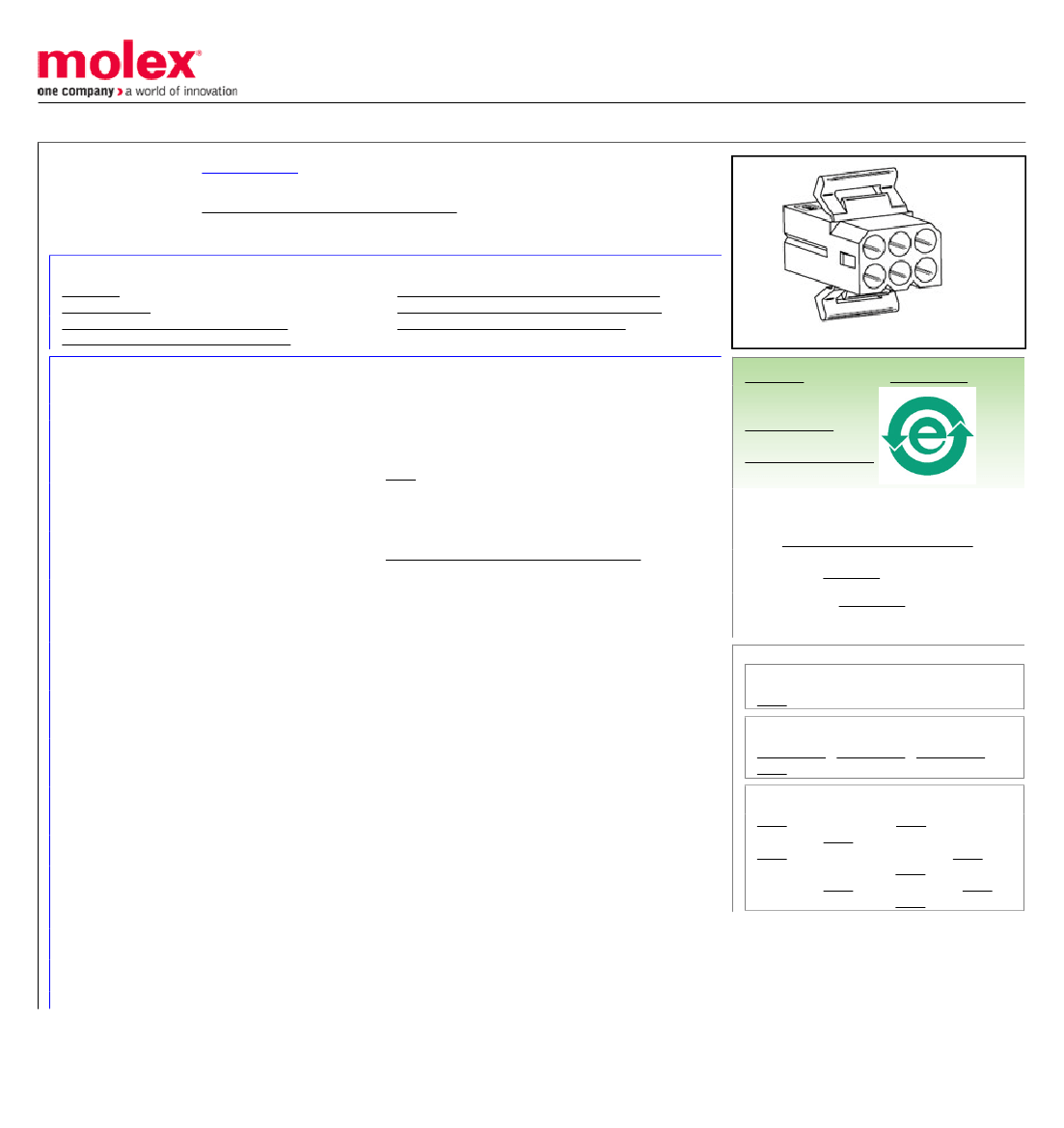

This document was generated on 08/11/2014
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
03-09-1061
Active
Standard .093" Pin and Socket Connectors
2.36mm Diameter Standard .093" Pin and Socket Receptacle Housing, 6 Circuits, Dual
Row
Documents:
3D Model
Drawing (PDF)
Product Specification PS-02-09 (PDF)
Product Specification PS-42477 (PDF)
Product Specification PS-43660-9999 (PDF)
Packaging Specification PK-1261-001 (PDF)
RoHS Certificate of Compliance (PDF)
image - Reference only
EU RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Low-Halogen Status
Low-Halogen
China RoHS
Series
Agency Certification
CSA
UL
LR19980
E29179
General
Product Family
Series
Application
Comments
MolexKits
Overview
Product Name
UPC
Crimp Housings
1261
Power, Wire-to-Wire
14.0A max. can be achieved when housing is used with
42477 or 42478 terminals
Yes
Standard .093" Pin and Socket Connectors
Standard .093"
800753615113
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Physical
Circuits (maximum)
Color - Resin
Flammability
Gender
Glow-Wire Compliant
Material - Resin
Net Weight
Number of Rows
Packaging Type
Panel Mount
Pitch - Mating Interface
Stackable
Temperature Range - Operating
6
Natural
94V-2
Receptacle
No
Nylon
3.101/g
2
Bag
Yes
5.03mm
No
-40°C to +105°C
Search Parts in this Series
1261Series
Mates With
03-09-2061 , 03-09-2062 , 03-09-7062 ,
3099
Use With
1189 Crimp Terminals, 1190 Crimp
Terminals, 1376 Male PC Tail Terminals,
1377 Female PC Tail Terminals, 1380
Male Crimp Terminals, 1381 Female Crimp
Terminals, 1433 Crimp Terminals, 1434
Male Crimp Terminals, 1973
Electrical
Current - Maximum per Contact
11A
Material Info
Old Part Number
1261-R
Reference - Drawing Numbers
Packaging Specification
Product Specification
Sales Drawing
PK-1261-001
PS-02-09, PS-42477, PS-43660-9999
SD-1261-*
