LightBend
TM
Full 2x2
Fiberoptic Switch
(Protected by U.S. patent 6823102 and pending patents)
Product Description

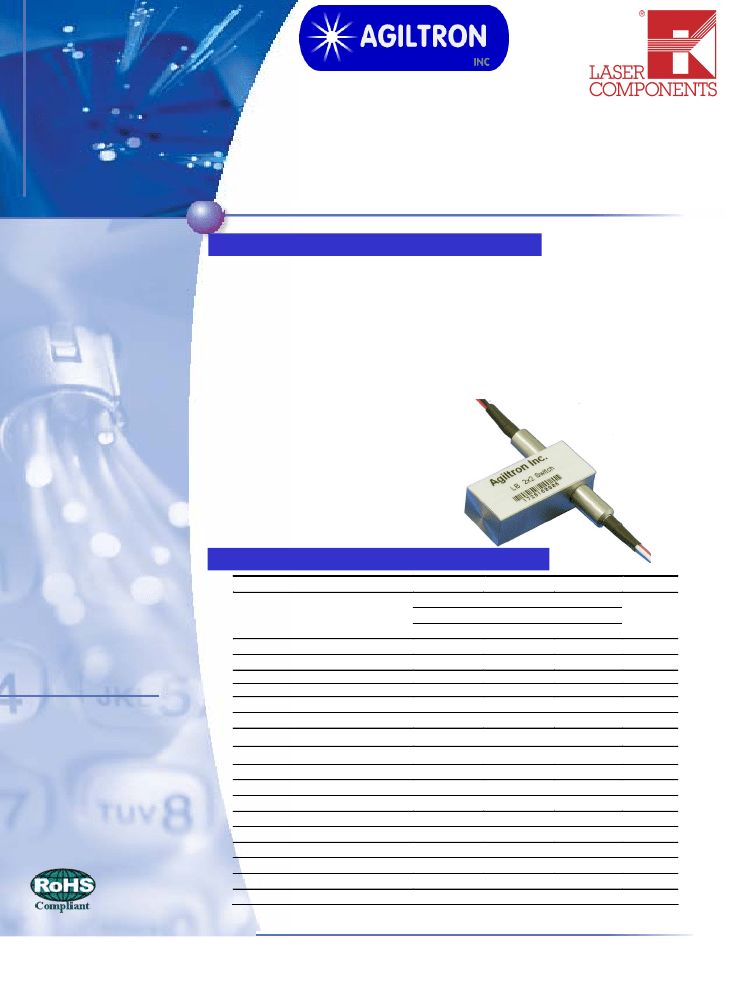

The LB Series Full 2x2 OptoMechanical Fiberoptic switch connects optical
channels by redirecting incoming optical signals into selected output fibers.
This is achieved using a patent pending opto-mechanical configuration and
activated via an electrical control signal. Latching operation preserves the
selected optical path after the drive signal has been removed. The switch
has integrated electrical position sensors. This novel design significantly
reduces moving part position sensitivity, offering unprecedented high
stability as well as an unmatched low cost. Electronic driver is available for
this series of switches.
Features
•
•
•
•
Low Optical Distortions
High Reliability
Fail-Safe Latching
Epoxy-Free Optical Path
Performance Specifications
LB Series Full 2x2 Switch
Operation Wavelength
Insertion Loss ¹
Wavelength Dependent Loss
Polarization Dependent Loss
Return Loss ¹ ²
Cross Talk ¹ ²
Switching Time
Repeatability
Durability
Operating Voltage
Operating Current
Voltage Pulse Width (Latching)
Switching Type
Operating Temperature
Optical Power Handling
Storage Temperature
Fiber Type
Package Dimension
1. Within operating temperature and SOP.
2. Excluding connectors.
3. DW: Dual band and Broad band.
Min
Typical
Max
Unit
nm
dB
dB
dB
dB
dB
ms
Cycle
VDC
mA
mS
C
mW
o
C
mm
o
Applications
•
•
•
•
Channel Blocking
Configurable Add/Drop
System Monitoring
Instrumentation
Single Band 1260~1360 or 1510~1610
Dual Band 1260~1360 and 1510~1610
Broad Band 1260~1620
0.6
1.0 (DW3)
0.2
0.3 (DW3)
0.1
55
55
4
10
±0.05
10
7
5
7
30
60
20
Latching/Non-Latching
-5
70
300
500
-40
85
SMF-28
30.0L x 27.0W x 8.2H
5
LASER COMPONENTS GmbH
Werner-von-Siemens-Str. 15, 82140 Olching, Germany, Phone: +49 8142 2864 0, Fax: +49 8142 2864 11, info@lasercomponents.com
LightBend
TM
Full 2x2
Fiberoptic Switch

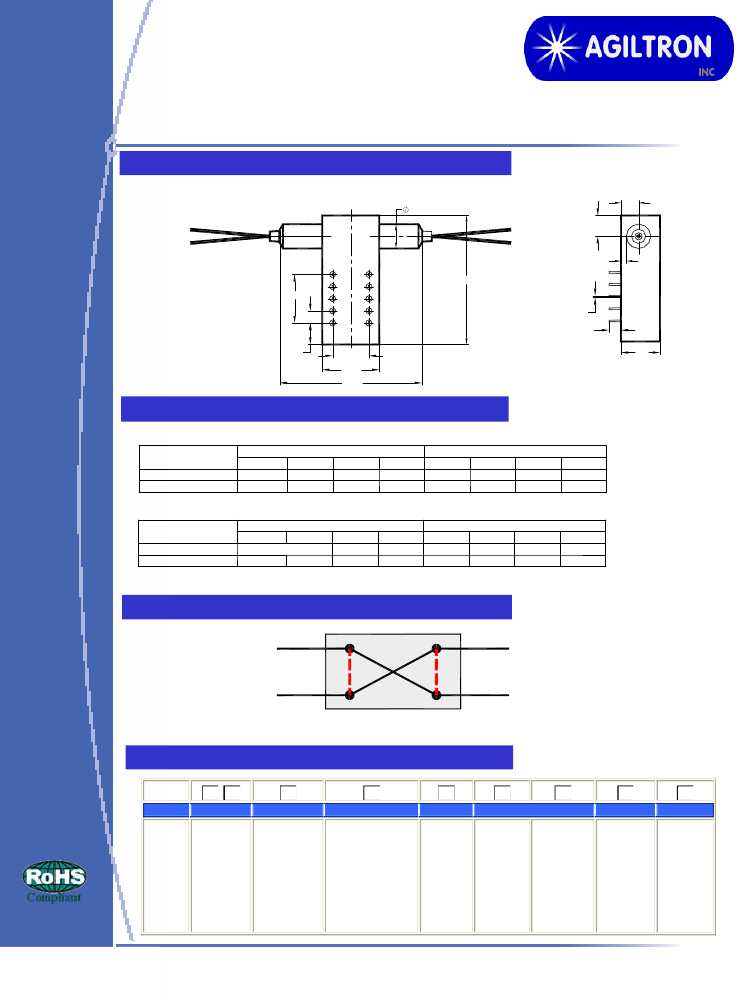

Mechanical Dimensions
P o rt 1
︵
P o rt 4
︵
B la c k
︶
W h it e
︶
5
6
2 7 . 0
1 0 . 1 6
2 . 5 4
P in 1
4 . 5
7 . 6 2
1 2 . 0
3 0 . 0
1 0
0 . 5 x 0 . 2
2 . 5
8 . 2
(Unit:mm)
5 . 1
P o rt 2
︵
P o rt 3
︵
W h it e
B la c k
︶
1 . 1 5
︶
4 . 3 5
3 . 7
Electrical Driving Requirements
Latching Type
Optical Path
1→3, 2→4
1→4, 2→3
Pin 1
GND
5V Pulse
Electric Drive
Pin 10
Pin 5
5V Pulse
N/A
GND
N/A
Pin 6
N/A
N/A
Pin 2-3
Close
Open
Status Sensor
Pin 3-4
Pin 7-8
Open
Open
Close
Close
Pin 8-9
Close
Open
Non-Latching Type
Optical Path
1→3, 2→4
1→4, 2→3
Electric Drive
Pin 1
Pin 10
Pin 5
No Power
N/A
5V
GND
N/A
Pin 6
N/A
N/A
Pin 2-3
Close
Open
Status Sensor
Pin 3-4
Pin 7-8
Open
Open
Close
Close
Pin 8-9
Close
Open
Functional Diagram
L B F u ll 2 x 2 S w it c h
Ordering Information
LBSW-
Type
2x2=22
Special=00
Wavelength
1060=1
C+L=2
1310=3
1410=4
1550=5
650=6
780=7
850=8
1310
&
1550=9
Special=0
Switch
Package
Fiber Type
Fiber Length Connector
Bare fiber=1 0.25m=1
900um tube=3 0.5m=2
Special=0
1.0m=3
Special=0
None=1
FC/PC=2
FC/APC=3
SC/PC=4
SC/APC=5
ST/PC=6
LC=7
Duplex LC=8
Special=0
Latching Type=1
Standard=1 SMF-28=1
Special=0
Non-Latching Type=2
Special=0
Special=0
www.lasercomponents.com
0 0 / V1 /
/
/
.pdf
LASER COMPONENTS GmbH
Werner-von-Siemens-Str. 15, 82140 Olching, Germany, Phone: +49 8142 2864 0, Fax: +49 8142 2864 11, info@lasercomponents.com
