BE2-038-S161-55 datasheet, PDF

Datasheet> All Categories > The connector> The connector> BE2-038-S161-55

BE2-038-S161-55: DescriptionBoard Connector, 38 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Plug; CategoryThe connector The connector; File Size276KB，1 Pages; ManufacturerE-tec Interconnect Ltd.; Environmental Compliance

Download Datasheet Parametric View All

BE2-038-S161-55 Overview

Board Connector, 38 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Plug

BE2-038-S161-55 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1161842263
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.197 inch
subject depth	0.635 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	Gold (Au)
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e4
Manufacturer's serial number	BE
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.091 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	38

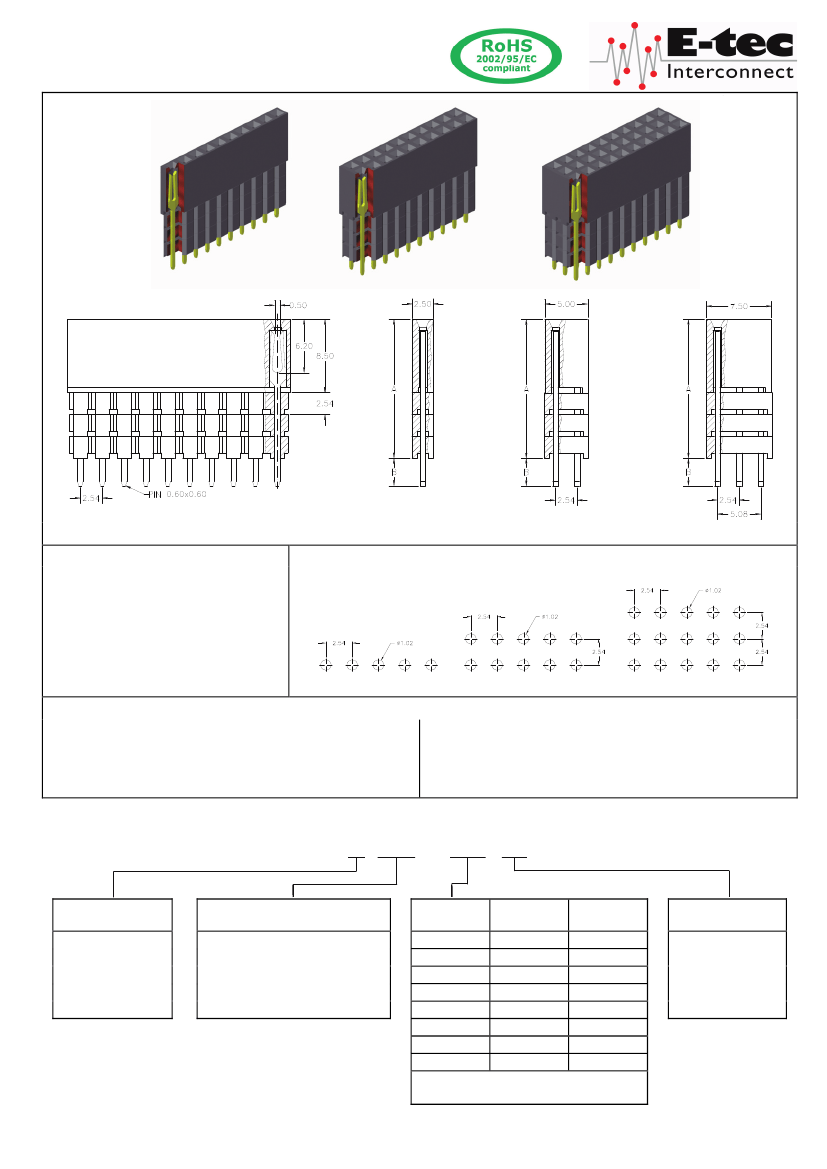

Preview

Download Datasheet

View All

2.54mm pitch

- THT -

Female Header

Elevated

single row

APPLICATION AND FEATURES

Various heights for board-to-board

connections

Ideal solution for PC/104-Plus

Systems

Accepts 0.64mm square pins

Hi-rel fork contact design

SPECIFICATIONS

Current rating

Insulator resistance

Contact resistance

Withstanding voltage

1000 MΩ min.

20 mΩ max.

500 V AC

dual row

PCB

Hole Layout

triple row

Operating temperature

Contact material

Insulator material

(RoHS compliant)

- 40°C

P.B.T.

+105°C

Phosphor Bronze

UL 94 V-0

How to order

BE x - xxx - S xxx -

Rows

= single row

= dual row

= triple row

Nbr of contacts

single row =

002

040

dual row

triple row

004

080

006

120

Version

111

112

113

131

132

161

162

181

DIM “A”

(mm / inch)

11.05 / .435

13.59 / .535

16.13 / .635

18.67 / .735

DIM “B”

(mm / inch)

2.30 / .091

7.35 / .289

12.20 /.480

4.85 / .191

9.65 / .380

2.30 / .091

7.10 / .280

4.60 / .181

Plating

gold

Other platings

on request

Other dimensions on request
