3453-2-072: DescriptionBoard Connector, 72 Contact(s), 3 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Plug; CategoryThe connector The connector; File Size104KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

3453-2-072 Overview

Board Connector, 72 Contact(s), 3 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Plug

3453-2-072 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	307765161
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.295 inch
subject depth	0.335 inch
body length	2.42 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	600VAC V
Durability	50 Cycles
maximum insertion force	3.9198 N
Insulation resistance	1000000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	3453
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.126 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	72
Evacuation force-minimum value	.3058 N

Preview

Download Datasheet

View All

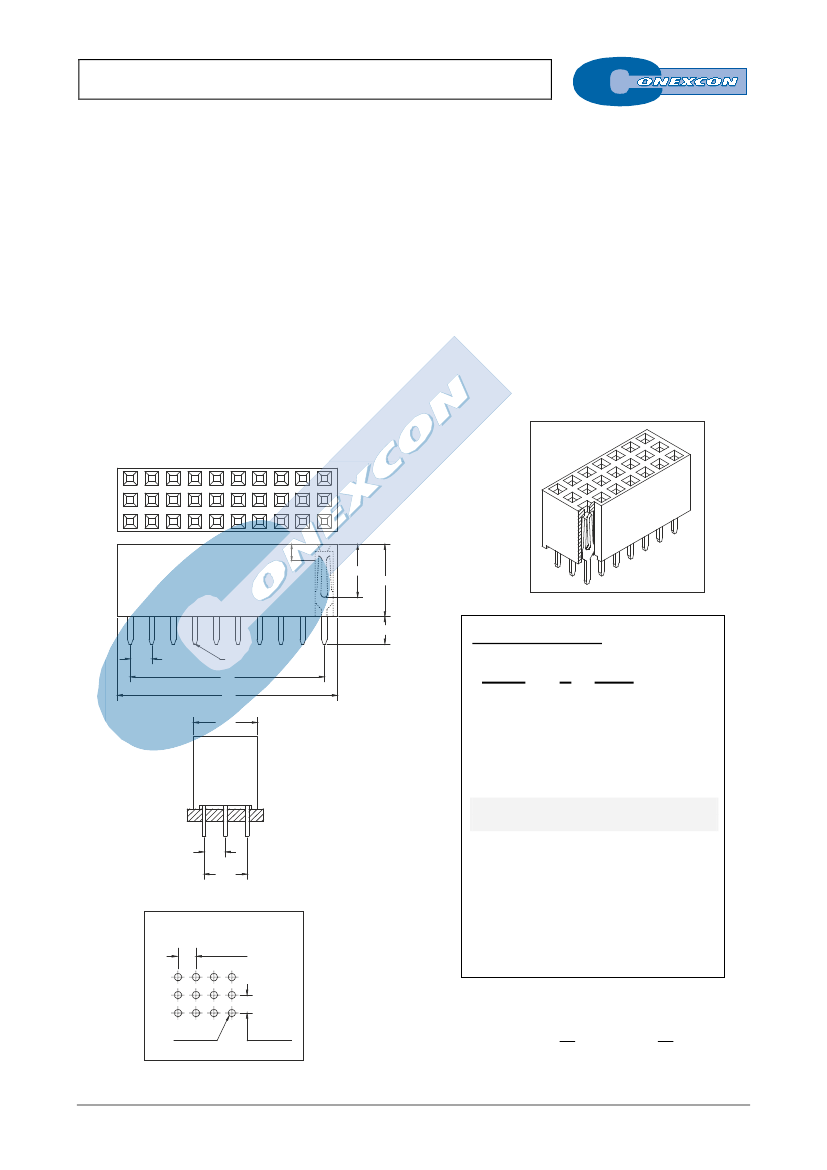

DUAL ROW VERTICAL SOCKET

3453 SERIES.

2.54 mm (0.100”) pitch.

General Features

Electrical Features



Available in 6 through 120 circuits

Mates with pin header 2.54 mm pitch 3558 and 3559

Accept 0.64 square pin

8.50 mm. high

U contact with different plating



Voltage rating: < 250V

Current rating: < 3 A

Contact resistance: < 20 mΩ

Dielectric withstanding voltage: 600 V AC/minute

Insulation resistance: >1000 MΩ

Capacitance: < 2 pF at 1 KHz

Materials

Mechanical Features



Insulator: PBT UL 94 V-0

Contact: Phosphor bronze

Operating temperature: -40ºC to +105ºC

RoHS compliant



Insertion force receptacle/plug: < 0,40 Kgf/pin

Unmating force receptacle/plug: > 0,03 Kgf/pin

Contact retention force to housing: > 0,50 Kgf/pin

Durability: 50 cycles

Dimension Information

1.95

6.2±0.2

8.50

3.20

Ordering Information:

2.54

PIN 0.65X0.4

A

B

7.50

3453 -

1

T- XXX

2

3

1. Connector Series

2. (T) Contact Plating



T =

2.

Tin plated



T =

3.

Gold flash over nickel

Recommended Finish

2.54

5.08



T =

5.

15µ” gold over nickel

T =

6.

30µ” gold over nickel

T =

13.

Sel. gold flash over nickel overall

T =

15.

15µ" sel. gold over nickel overall

T =

16.

30µ" sel. gold over nickel overall

RECOMMENDED HOLE PATTERN

2.54±0.05

.100±.002

3. (XX) Number of circuits



Available in 6 through 120 circuits

DIMENSIONS

1.02±0.05

.040±.002

2.54±0.05

.100±.002





XX

A

=

2.54







3

−

1







(XX) = Number of circuits



XX



B

=

2.54







3

 +

0.50





E-XX
