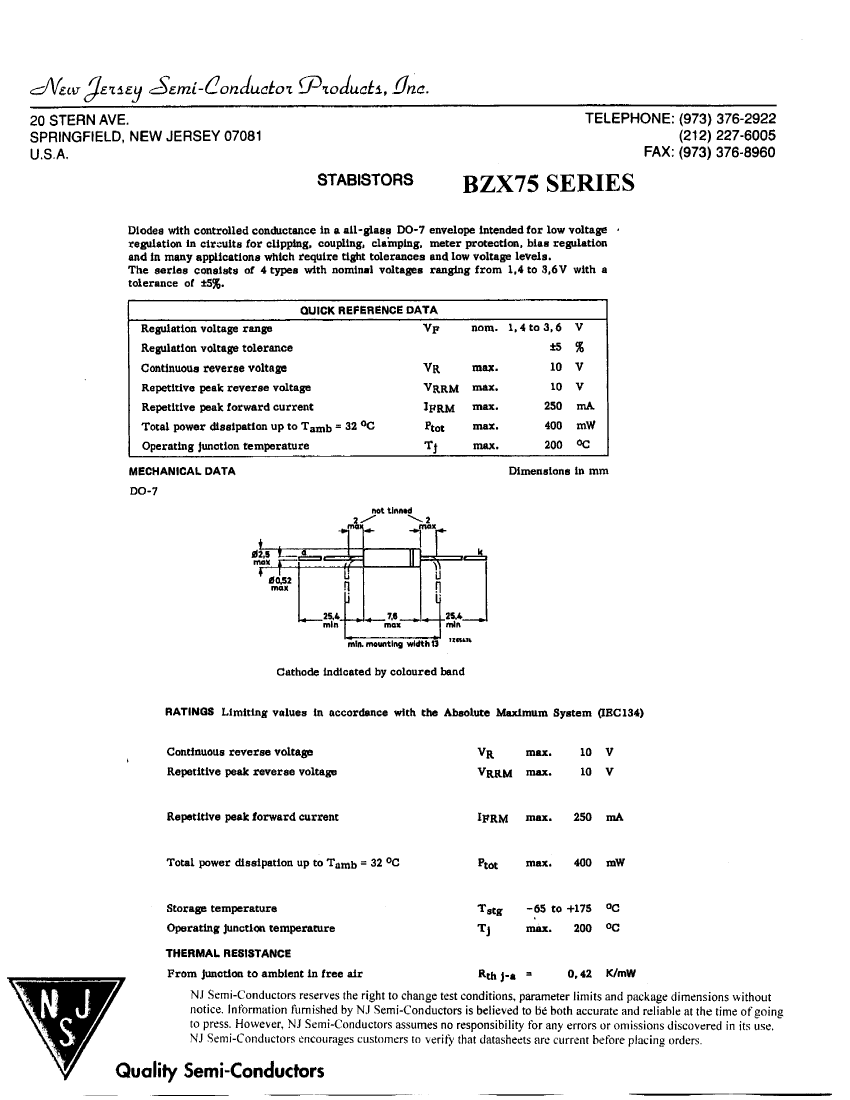

STABISTORS
RZX75 SERIES
Diodea with controlled conductance in a all-glass DO-7 envelope Intended for low voltage
regulation in circuits for clipping, coupling, clamping, meter protection, bias regulation
and in many applications which require tight tolerances and low voltage levels.
The series consists of 4 types with nominal voltages ranging from 1,4 to 3,6V with a
tolerance of ±5%.
QUICK REFERENCE DATA
Regulation voltage range
Regulation voltage tolerance
Continuous reverse voltage
Repetitive peak reverse voltage
Repetitive peak forward current
Total power dissipation up to T
am
b = 32 °C
Operating Junction temperature
MECHANICAL DATA
v
F
VR
VRRM
IFRM
Ptot
Tj
nom. 1,4 to 3,6
max.
max.
max.
max.
max.
10
10
250
400
200
V
V
V
mA.
±5
%
mW
OG
Dimensions in mm
net tinmd
DO-7
*
*
*4«
i
max
i
f" T
T
—
a
'
.*
_
1
if
T ,
n
^
.
las.*
1 itnft
00.52
max
•
1
.
25.4
- mln
7.8
rnox
mln. mounting width 13
Cathode indicated by coloured band
RATINGS Limiting values in accordance with Che Absolute Maximum System (IEC134)
Continuous reverse voltage
Repetitive peak reverse voltage
VR
max.
max.
10
10
V
V
Repetitive peak forward current
IFRM
max.
250
mA
Total power dissipation up to T
am
b = 32 °C
Ptot
max.
400
mW
Storage temperature
Operating Junction temperature
THERMAL RESISTANCE
T
stg
-65 to +175
°C
Tj
max.
200 °C
From junction to ambient in free air
R
thJ-a
0,42
K/mW
