SG-9101CA170.0000M-D40PHBAB3 datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> SG-9101CA170.0000M-D40PHBAB3

SG-9101CA170.0000M-D40PHBAB3: DescriptionCMOS Output Clock Oscillator,; CategoryPassive components oscillator; File Size3MB，37 Pages; ManufacturerSeiko Epson Corporation; Environmental Compliance

Download Datasheet Parametric Compare View All

SG-9101CA170.0000M-D40PHBAB3 Overview

CMOS Output Clock Oscillator,

SG-9101CA170.0000M-D40PHBAB3 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	7138276108
package instruction	DILCC4,.2,200
Reach Compliance Code	compliant
Other features	ENABLE/DISABLE FUNCTION
maximum descent time	3 ns
Frequency Adjustment - Mechanical	NO
frequency stability	50%
JESD-609 code	e4
Installation features	SURFACE MOUNT
Number of terminals	4
Nominal operating frequency	170 MHz
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Oscillator type	CMOS
Output load	15 pF
Encapsulate equivalent code	DILCC4,.2,200
physical size	7.0mm x 5.0mm x 1.3mm
longest rise time	3 ns
Maximum slew rate	8.3 mA
Maximum supply voltage	3.63 V
Minimum supply voltage	1.62 V
surface mount	YES
maximum symmetry	55/45 %
Terminal surface	Gold (Au)

Preview

Download Datasheet

View All

Programmable Spread Spectrum Crystal Oscillator:

SG-9101CG/SG-9101CE/SG-9101CB/SG-9101CA

Features

●

Spread Spectrum Crystal oscillator (Programmable)

Output frequency: 0.67 MHz to 170 MHz (1 × 10

-6

Step)

CMOS

Output:

1.62 V to 3.63 V

Supply voltage:

Configurable spread spectrum settings:

2 kinds of spread type, 6 kinds of spread width

4 kinds of modulation frequency, 3 kinds of spread profile

SG-9101CG

SG-9101CE

SG-9101CB

SG-9101CA

Description

Epson’s SG-9101 series are Programmable Crystal Oscillator series with CMOS output.

While this series offer the same easy programmability of frequencies and other parameters as comparable earlier

Epson products, they also have a wider operating temperature range, with a top-end limit of 105 °C. In addition to

a 2.5 × 2.0 mm package that will enable electronics manufacturers to save board space, the oscillators will also

be available in the following popular package sizes: 3.2 × 2.5 mm, 5.0 × 3.2 mm and 7.0 × 5.0 mm.

Users will be able to program the products to the required output frequency, as well as to the required spread

spectrum settings, with an Epson SG-Writer II (sold separately).

This will also significantly contribute to performance, lower power requirements, fast development cycles, and

low-volume production.

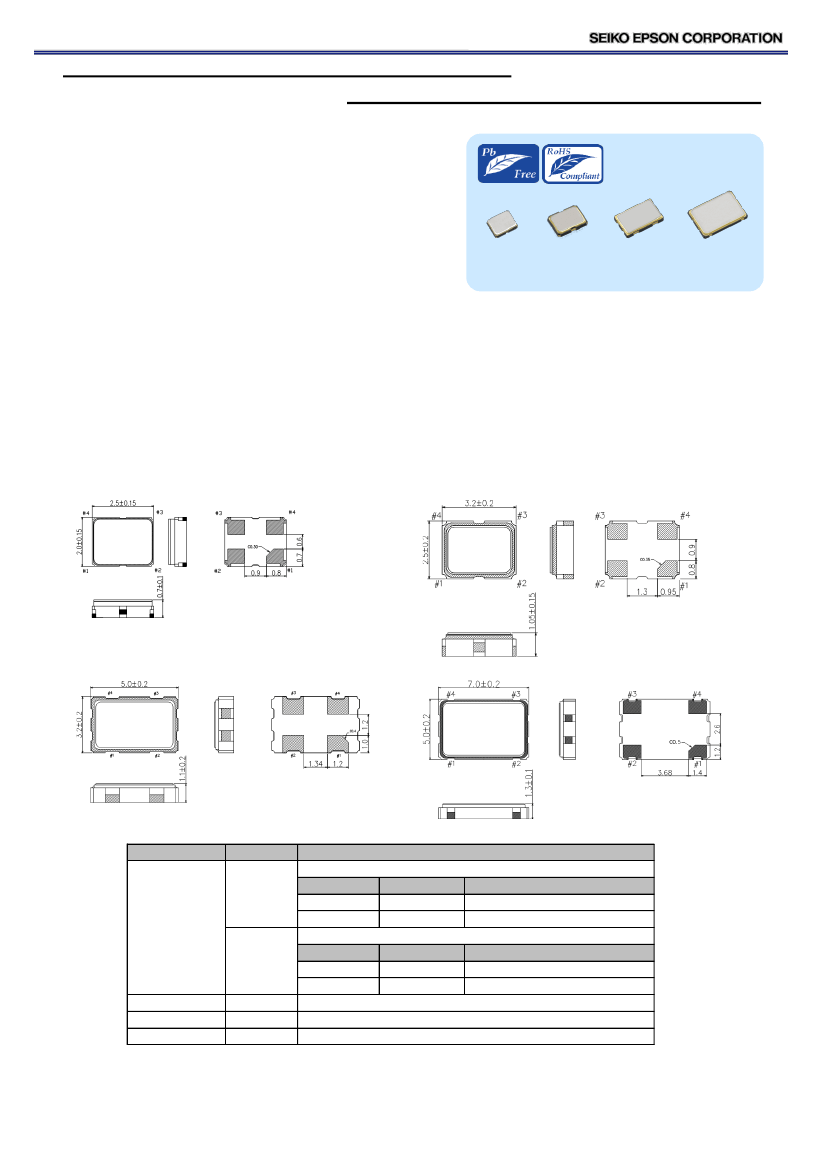

Outline Drawing and Terminal Assignment

SG-9101CG

SG-9101CE

SG-9101CB

SG-9101CA

Terminal Assignment

Pin #

Connection

OE terminal

OE *

ST *

̅ ̅

OE function

“H”

“L”

ST terminal

̅ ̅

ST function

̅ ̅

“H”

“L”

GND

OUT

GND terminal

Output terminal

terminal

Osc. Circuit

Oscillation

Osc. Circuit

Oscillation

Oscillation stop

Output

Specified frequency: Enable

Low (weak pull down): Disable

Output

Specified frequency: Enable

Low (weak pull down): Disable

Function

* Please do not use the OE/ST terminal in the open state.

̅ ̅

Page 1 / 37

Spec No : SG-9101series_E_Ver1.02

SG-9101CA170.0000M-D40PHBAB3 Related Products

	SG-9101CA170.0000M-D40PHBAB3	SG-9101CA0.6700M-C02PHBAB3	SG-9101CA170.0000M-C05PGBBC3	SG-9101CA170.0000M-D05PGDBA3	SG-9101CB170.0000M-C20PGDBA3	SG-9101CB170.0000M-D10SHAAC3
Description	CMOS Output Clock Oscillator,	CMOS Output Clock Oscillator,	CMOS Output Clock Oscillator,	CMOS Output Clock Oscillator,	CMOS Output Clock Oscillator,	CMOS Output Clock Oscillator,
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
Objectid	7138276108	7138266172	7138271692	7138273900	7138283836	7138284940
package instruction	DILCC4,.2,200	DILCC4,.2,200	DILCC4,.2,200	DILCC4,.2,200	DILCC4,.12	DILCC4,.12
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
Other features	ENABLE/DISABLE FUNCTION	ENABLE/DISABLE FUNCTION	ENABLE/DISABLE FUNCTION	ENABLE/DISABLE FUNCTION	ENABLE/DISABLE FUNCTION; REEL WITH OTHER QTY ALSO AVAILABLE	STANDBY; ENABLE/DISABLE FUNCTION; REEL WITH OTHER QTY ALSO AVAILABLE
Frequency Adjustment - Mechanical	NO	NO	NO	NO	NO	NO
frequency stability	50%	50%	50%	50%	50%	50%
JESD-609 code	e4	e4	e4	e4	e4	e4
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of terminals	4	4	4	4	4	4
Nominal operating frequency	170 MHz	0.67 MHz	170 MHz	170 MHz	170 MHz	170 MHz
Maximum operating temperature	105 °C	105 °C	85 °C	85 °C	85 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Oscillator type	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Output load	15 pF	15 pF	15 pF	15 pF	15 pF	15 pF
Encapsulate equivalent code	DILCC4,.2,200	DILCC4,.2,200	DILCC4,.2,200	DILCC4,.2,200	DILCC4,.12	DILCC4,.12
physical size	7.0mm x 5.0mm x 1.3mm	7.0mm x 5.0mm x 1.3mm	7.0mm x 5.0mm x 1.3mm	7.0mm x 5.0mm x 1.3mm	5.0mm x 3.2mm x 1.1mm	5.0mm x 3.2mm x 1.1mm
Maximum supply voltage	3.63 V	3.63 V	3.63 V	3.63 V	3.63 V	3.63 V
Minimum supply voltage	1.62 V	1.62 V	1.62 V	1.62 V	1.62 V	1.62 V
surface mount	YES	YES	YES	YES	YES	YES
maximum symmetry	55/45 %	55/45 %	55/45 %	55/45 %	55/45 %	55/45 %
Terminal surface	Gold (Au)	Gold (Au)	Gold (Au)	Gold (Au)	Gold (Au)	Gold (Au)
maximum descent time	3 ns	3 ns	-	3 ns	3 ns	-
longest rise time	3 ns	3 ns	-	3 ns	3 ns	-
