BF095-16-C-C-0280-N-D datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> BF095-16-C-C-0280-N-D

Preview

BF095-16-C-C-0280-N-D: DescriptionBoard Connector, 16 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Plug,; CategoryThe connector The connector; File Size146KB，1 Pages; ManufacturerGlobal Connector Technology; Environmental Compliance

Download Datasheet Parametric View All

BF095-16-C-C-0280-N-D Overview

Board Connector, 16 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Plug,

BF095-16-C-C-0280-N-D Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	304450426
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.157 inch
subject depth	0.157 inch
body length	0.654 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
insulator material	NYLON
JESD-609 code	e3
Manufacturer's serial number	BF095
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Rated current (signal)	2 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.11 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	16

Preview

Download Datasheet

View All

3

1

2

4

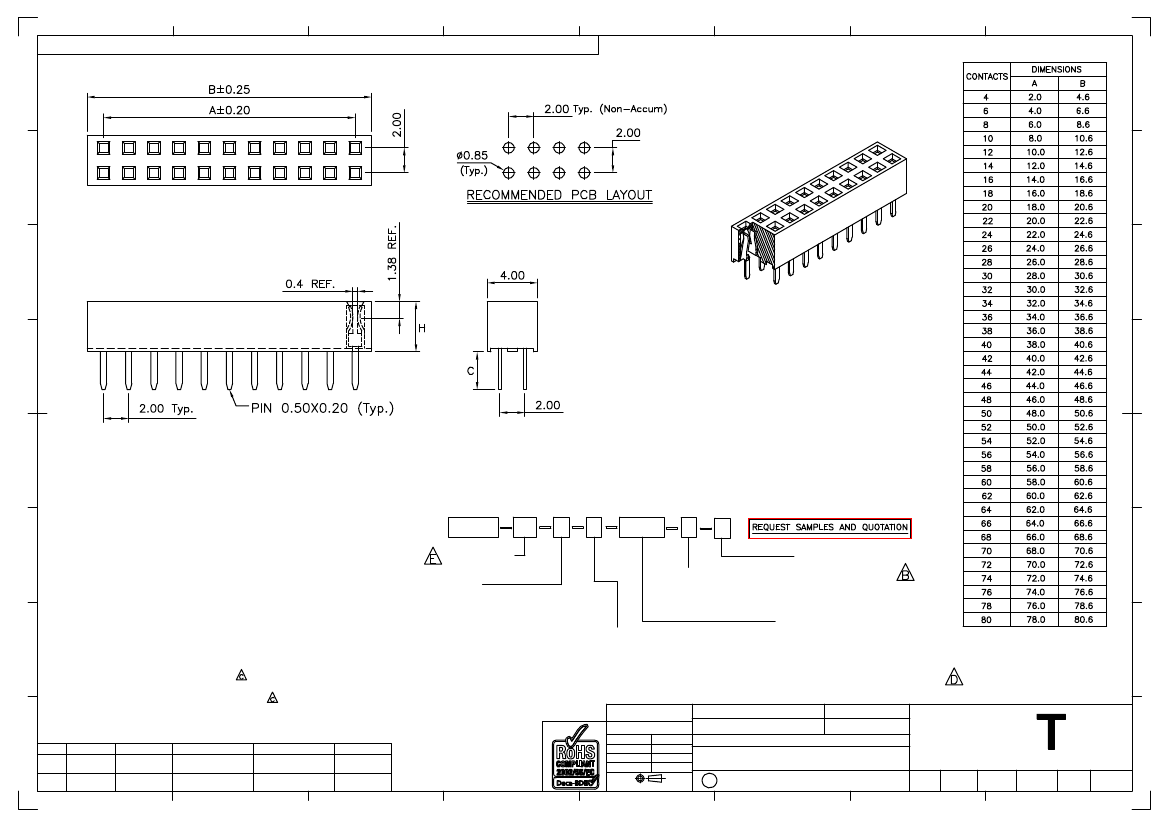

Global Connector Technology Ltd. - BF095: 2.0mm PITCH SOCKET, DUAL ROW, THROUGH HOLE, VERTICAL

A

5

6

7

8

A

B

C

D

E

SPECIFICATIONS

规格

CURRENT RATING

电流额定值

: 2.0 AMPERE

INSULATION RESISTANCE

绝缘电阻值

: 1000M

Ω

Min.

CONTACT RESISTANCE

接触电阻值

: 20m

Ω

Max.

DIELECTRIC WITHSTANDING

耐电压

: 500V AC

F

OPERATING TEMPERATURE

工½温度

: -40°C TO +105°C

CONTACT MATERIAL

端子物料

: COPPER ALLOY

INSULATOR MATERIAL

绝缘½物料

:

STANDARD

标准物料

: POLYAMIDE

聚醯胺

, NYLON 6T, UL 94-V0

OPTIONS

可选物料

: POLYESTER

聚酯

, LCP, UL 94-V0

SOLDERING PROCESS

可焊性

:

NYLON 6T (STANDARD

标准物料

) -

IR REFLOW

回流焊

: 260°C for 10 sec.

WAVE

波峰焊

:230°C for 5-10 sec.

G

MANUAL SOLDER

人工焊接

: 350°C for 3-5 sec

LCP (OPTION

可选物料

) -

IR REFLOW

回流焊

: 260°C for 10 sec.

WAVE

波峰焊

:250°C for 5-10 sec.

MANUAL SOLDER

人工焊接

: 350°C for 3-5 sec

MATES WITH

配套之母座

(SUBJECT TO PIN LENGTH

在端子长度适合的条件下

):

BF030

BF045

BF050

BF055

BF060

BF135

BF140

BF145

E

Ordering Grid

BF095

No. of Contacts

04 to 80

XX

X

XXXX

X

Packing Options

D = Tube (Standard)

E = Tube with Cap

F = Tube with Film

G = Plastic Box

Dimension C (1/100mm)

(Tail Length)

'H' = 4.00mm: Standard - 2.80mm = 0280

'H' = 4.30mm: Standard - 2.40mm = 0240

Or specify Dimension C

e.g. 2.50mm = 0250

TOL +/- 0.2mm

Part Number:-

Date:-

F

Contact Plating

A = Gold Flash All Over

B = Selective Gold Flash Contact Area/

Tin On Tail

C = Tin All Over

G = 10µ" Gold Contact Area/Tin On Tail

I = 30µ" Gold Contact Area/Tin On Tail

Standard = Gold Flash All Over

Insulator Material

N = Nylon 6T (Standard)

L = LCP

Insulator

Height 'H'

C = 4.00mm

D = 4.30mm

Standard = 4.30mm

Tolerances

(Except as noted)

G

Dimensions in mm

X.°±5°

X.X ± 0.20

.X°±2°

X.XX ± 0.15 .XX°±1°

X.XXX ± 0.10 .XXX°±0.5°

Third Angle Projection

X. ± 0.30

BF095

Description:-

31 OCT 07

H

By

DETAIL

REV

DATE

LYH

DRAWING

RELEASE

A

31/10/07

CB

PACKING OPTIONS

CHANGED

DR

AE

SA

1

B

27/04/09

CHANGE TO SOLDER

CHANGE TO DIMENSION CHANGE TO NO.

C STANDARDS

OF CONTACTS

TEMP. INFORMATION

D

C

E

25/11/09

05/08/09

15/01/10

2.0mm PITCH SOCKET, DUAL ROW,

THROUGH HOLE, VERTICAL

www.globalconnectortechnology.com

Scale

NTS

GC

Material

See Note

H

Sheet No.

E & OE

1/1

C

THIS DRAWING IS CONFIDENTIAL AND MUST NOT BE

COPIED OR DISCLOSED WITHOUT WRITTEN CONSENT

Revision

E

Drawn by

LYH

2

3

4

5

6

7

8
