A-41681-A14A197

Description
KK® 396 PCB Breakaway Header, , Vertical, Polarizing Wall, 14 Circuits, Tin (Sn) Plating
File Size50KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet View All

A-41681-A14A197 Overview

KK® 396 PCB Breakaway Header, , Vertical, Polarizing Wall, 14 Circuits, Tin (Sn) Plating

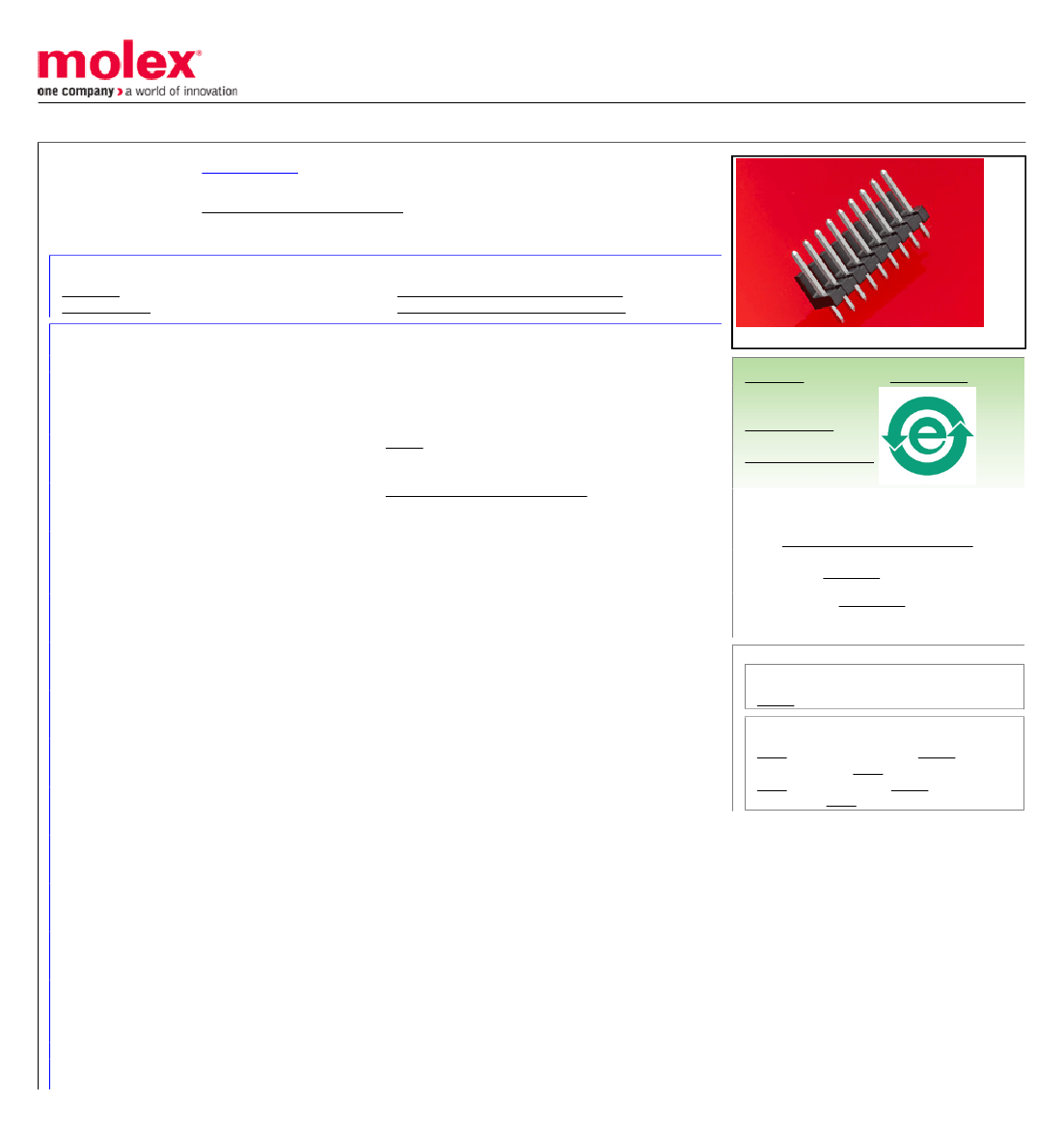

This document was generated on 07/08/2014
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
26-48-1143
Active
KK® Interconnect System - Molex
KK® 396 PCB Breakaway Header, , Vertical, Polarizing Wall, 14 Circuits, Tin (Sn)
Plating
Documents:
3D Model
Drawing (PDF)
Product Specification PS-08-50 (PDF)
RoHS Certificate of Compliance (PDF)
Series
image - Reference only
LR19980
E29179
EU RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Low-Halogen Status
Not Low-Halogen
China RoHS
Agency Certification
CSA
UL
General
Product Family
Series
Application
Application Tooling Part Link
Overview
Product Name
UPC
PCB Headers
41681
Power, Wire-to-Board
11-20-0901
KK® Interconnect System - Molex
KK® 396
800754385725
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
Flammability
Glow-Wire Compliant
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Resin
Net Weight
Number of Rows
Orientation
PC Tail Length
PCB Locator
PCB Retention
PCB Thickness - Recommended
Packaging Type
Pitch - Mating Interface
Pitch - Termination Interface
Polarized to Mating Part
Polarized to PCB
Shrouded
Stackable
Temperature Range - Operating
Termination Interface: Style
Yes
14
14
Black
25
94V-0
No
None
Brass
Tin
Polyester
6.741/g
1
Vertical
4.37mm
No
None
1.60mm
Bag
3.96mm
3.96mm
No
No
No
No
See Product Specification
Through Hole
Search Parts in this Series
41681Series
Mates With
2139 KK® Crimp Housing, 41695 KK®
Crimp Housing, 6442 KK® Crimp Housing,
2145 PCB Connector, 41815 PCB
Connector, 3069 KK® Crimp Housing
Electrical
Current - Maximum per Contact
Voltage - Maximum
7A
250V
Solder Process Data
