BG190-26-A-1-N-D datasheet, PDF

Datasheet> All Categories > The connector> The connector> BG190-26-A-1-N-D

BG190-26-A-1-N-D: DescriptionBoard Connector, 26 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Plug,; CategoryThe connector The connector; File Size164KB，1 Pages; ManufacturerGlobal Connector Technology; Environmental Compliance

Download Datasheet Parametric Compare View All

BG190-26-A-1-N-D Overview

Board Connector, 26 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Plug,

BG190-26-A-1-N-D Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	304441742
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.2 inch
subject depth	0.197 inch
body length	1.32 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	600VAC V
Insulation resistance	1000000000 Ω
insulator material	NYLON
JESD-609 code	e4
Manufacturer's serial number	BG190
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	FLASH inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	26

Preview

Download Datasheet

View All

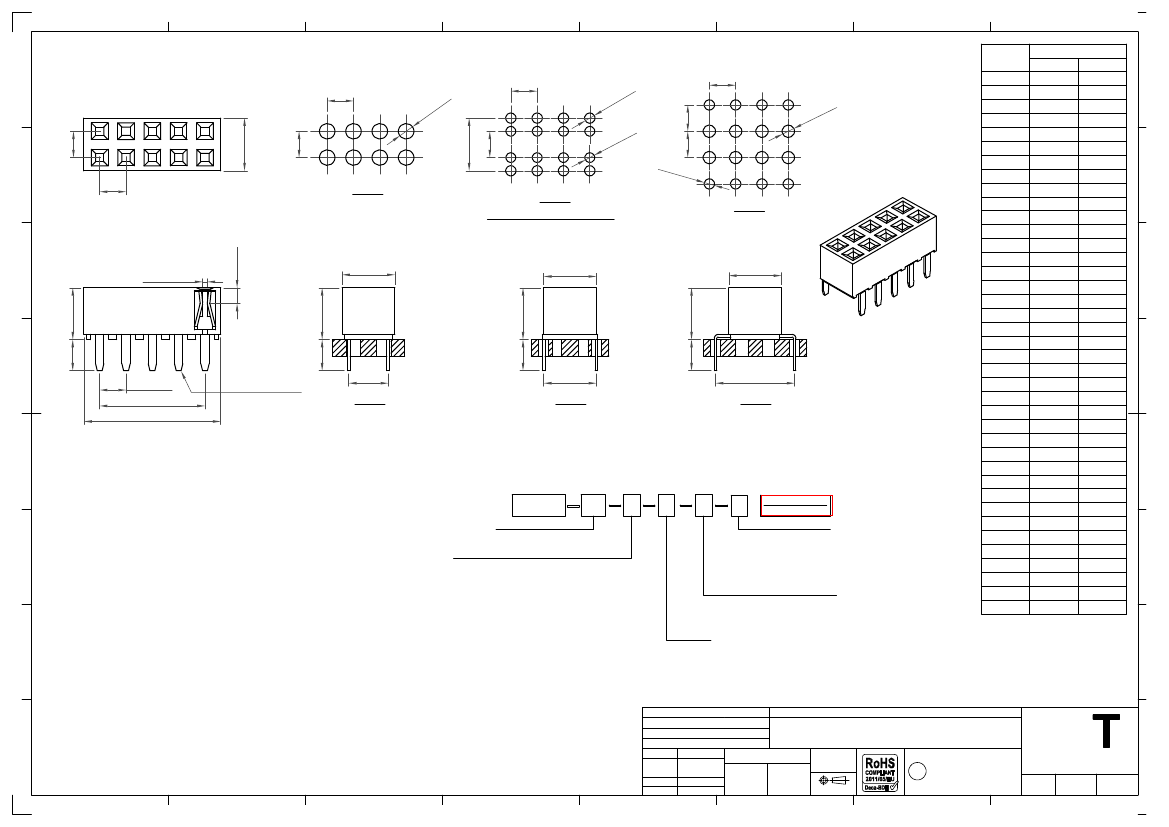

CONTACTS

DIMENSIONS

2.54

5.08

7.62

10.16

12.70

15.24

17.78

20.32

22.86

25.40

27.94

30.48

33.02

35.56

38.10

40.64

43.18

45.72

48.26

50.80

53.34

55.88

58.42

60.96

63.50

66.04

68.58

71.12

73.66

76.20

78.74

81.28

83.82

86.36

88.90

91.44

93.98

96.52

99.06

5.58

8.12

10.66

13.20

15.74

18.28

20.82

23.36

25.90

28.44

30.98

33.52

36.06

38.60

41.14

43.68

46.22

48.76

51.30

53.84

56.38

58.92

61.46

64.00

66.54

69.08

71.62

74.16

76.70

79.24

81.78

84.32

86.86

89.40

91.94

94.48

97.02

99.56

102.10

2.54

.50

Ø1

2.54

1 .0

.2 0

2.54

5.08

2.54

Ø1 .0

Type 1

Type 2

Recommended PCB Layouts

2.54

.95

Ø0

2.54

Ø1

Type 3

(Minimum Insertion Depth)

1.37

0.40 REF.

5.08

5.00

3.00

2.54 Typ.

A±0.25

B±0.38

Pin 0.70 x 0.25 pin

3.00

Type 1

Type 2

Type 3

Specifications

规格

Material

物料

Contact

端子

: Copper Alloy

Insulator Material

绝缘½

Standard

标准

: Polyamide, Nylon 6T, UL 94V-0

Options

可选

: Polyester, LCP, UL 94V-0

Polyester, PBT, UL94-V0

Electrical

电气

Current Rating

电流额定值

: 3 Amp

Insulator Resistance

绝缘电阻值

: 1000 MΩ min.

Contact Resistance

接触电阻值

: 20 mΩ max.

Dielectric Withstanding

耐电压

: AC 600 V

Ordering Grid

BG190

Request Samples

and Quotation

No. of Contacts

04 to 80

Contact Plating

A = Gold Flash All Over

(Standard)

B = Selective Gold Flash Contact

Area/Tin On Tail

C = Tin All Over

G = 10µ" Gold Contact Area/Tin On Tail

I = 30µ" Gold Contact Area/Tin On Tail

Packing Options

D = Tube

(Standard)

E = Tube with Cap

F = Tube with Film

G = Plastic Box

Insulator Material

N = Nylon 6T

(Standard)

P = PBT

L = LCP

Environmental & Mechanical

机械

环境

Operating Temperature

工½温度

: -40° to +105°C

Soldering Process

可焊性

Nylon 6T (Standard

标准物料

) -

IR Reflow

回流焊

: 260°C for 10 sec.

Wave

波峰焊

: 230°C for 5-10 sec.

Manual Solder

人工焊接

: 350°C for 3-5 sec

LCP (Option

可选物料

) -

IR Reflow

回流焊

: 260°C for 10 sec.

Wave

波峰焊

: 250°C for 5-10 sec.

Manual Solder

人工焊接

: 350°C for 3-5 sec

PBT (Option

可选物料

) - Manual Solder

人工焊接

: 330°C for 3-5 sec.

(Not

suitable for hi-temp process

不适合高温处理

)

Type

1 = Type 1, Width = 3.80mm

2 = Type 2, Width = 5.08mm

3 = Type 3, Width = 7.62mm

Part Number

Product Description

BG190

Drawing Date

Mates with

配套之母座

(Subject

to pin length

在端子长度适合的条件下

)

BG025

BG040

BG045

BG050

BG065

BG070

BG085

30th October 2006

Detail

Revision

Date

AJO

BG190

F PCN

22/07/15

Length

2.54mm Pitch Socket

Dual Row, Through-Hole, Dual Entry, Vertical

Tolerances

(Except as Noted)

Angle

X.° ± 5°

X. ± 0.30

X.X° ± 2°

X.X ± 0.20

X.XX° ± 1°

X.XX ± 0.15

X.XXX ± 0.10 X.XXX° ± 0.5°

Units:

Metric (mm)

3rd Angle Projection

This drawing is confidential and

Technology, Ltd (GCT).

This drawing must not be copied

or disclosed without written

consent. E & OE

Global Connector Technology

Drawn By

LYH

www.gct.co

Not to

Scale

Sheet No.

1/1

BG190-26-A-1-N-D Related Products

	BG190-26-A-1-N-D	BG190-38-B--N-E	BG190-78-I-2-P-F	BG190-36-A-1-N-D
Description	Board Connector, 26 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Plug,	Headers and Edge Type Connector,	Headers and Edge Type Connector,	Board Connector, 36 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Plug,
Is it Rohs certified?	conform to	conform to	conform to	conform to
Objectid	304441742	145001439196	145001435516	304441747
Reach Compliance Code	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
