0990HFL222008 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 0990HFL222008

0990HFL222008: DescriptionBoard Connector, 8 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle; CategoryThe connector The connector; File Size66KB，2 Pages; ManufacturerRatioplast Electronics

Download Datasheet Parametric View All

0990HFL222008 Overview

Board Connector, 8 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle

0990HFL222008 Parametric

Parameter Name	Attribute value
Objectid	304377867
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.291 inch
subject depth	0.291 inch
body length	0.5 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Insulator color	BLACK
insulator material	NYLON
Manufacturer's serial number	099
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	FLASH inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.15 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	8

Preview

Download Datasheet

View All

Ratioplast-Electronics

Serie

Homepage: www.ratioplast.de / E-Mail: info@ratioplast.de

Tel.: +49 (0) 5741 / 23 661-0 / Fax: +49 (0) 5741 / 23 661-20

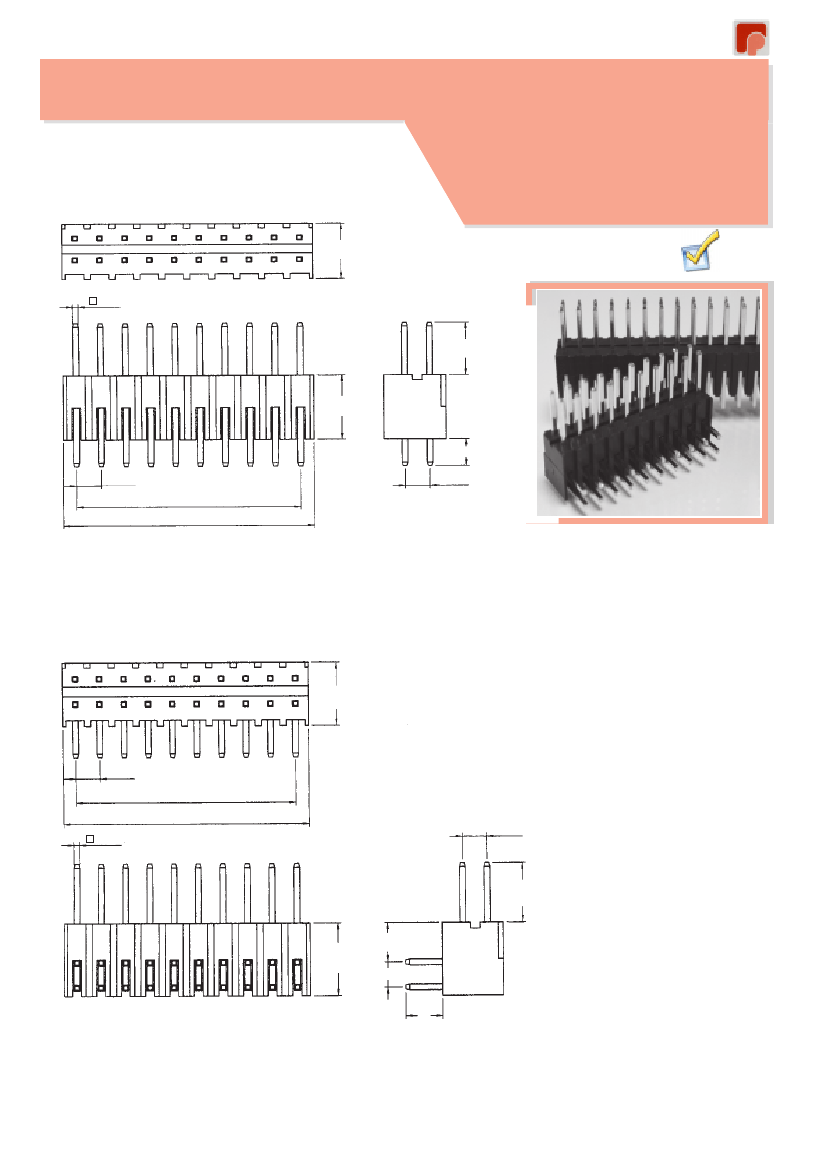

099

STIFTLEISTEN

PIN HEADERS

2-REIHIG, GERADE, GEWINKELT, Raster 2,54 mm

2-ROW, STRAIGHT, RIGHT ANGLED, Pitch 2,54 mm

Stiftleiste mit speziellem Isolierkörper

7,4 x 6,4mm und Vierkantstiften 0,64 mm

Pin header with special insulator

7,4 x 6,4mm and square contacts 0,64 mm

6,4

RoHs

0,64

7,0

7,4

3,6

2,54

(N/2)x 2,54

(N/2+1)x 2,54

2,54

7,4

2,54

(N/2)x 2,54

(N/2+1)x 2,54

0,64

2,54

7,0

3,86

7,4

2,54

3,8

176

Ratioplast-Electronics,

H.Wiedemann GmbH 2006 Sonderanfertigungen und andere Veredelungen auf Anfrage / Customer Designs and special platings on request

Die Vervielfältigung dieser Unterlagen durch Kopieren oder Nachdruck ist nur mit ausdrücklicher Genehmigung des Herausgebers gestattet.

Zuwiderhandlung verplichtet zu Schadensersatz. Design und technische Änderung vorbehalten.
