RGX227200T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> RGX227200T

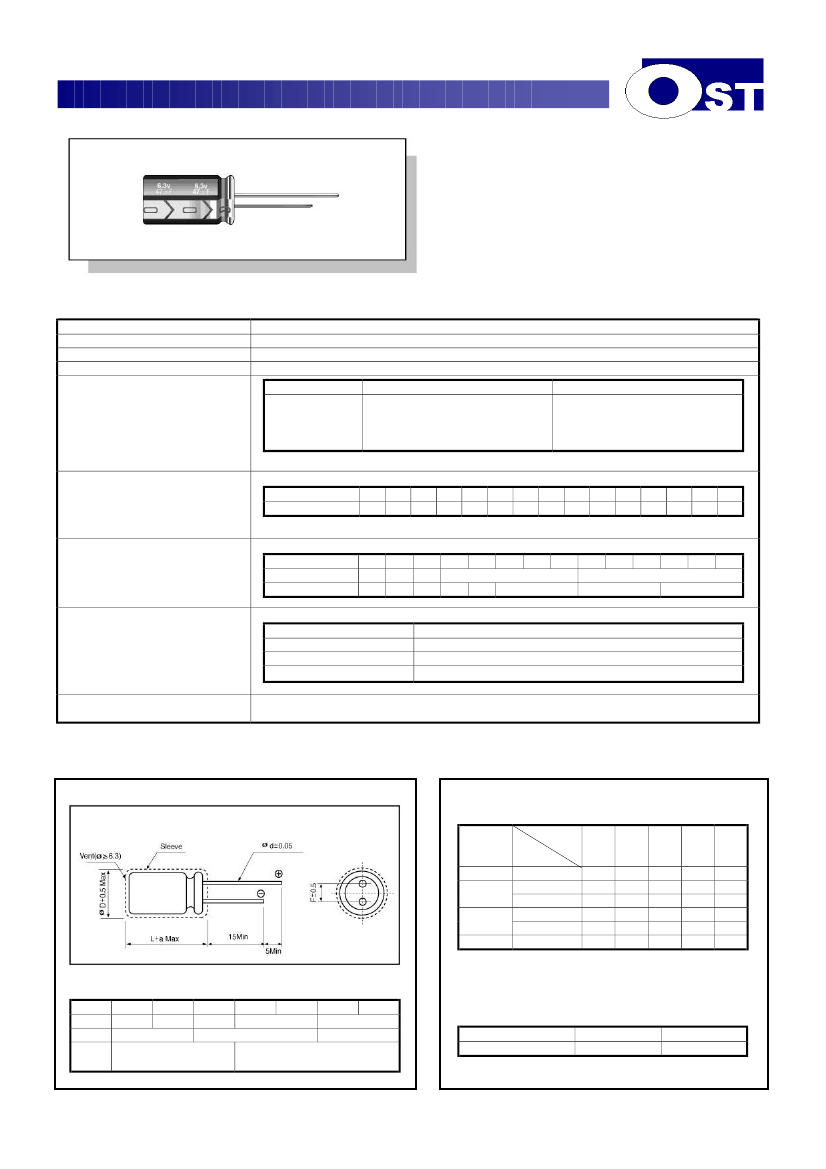

RGX227200T: DescriptionCAP,AL2O3,220UF,200VDC,20% -TOL,20% +TOL; CategoryPassive components capacitor; File Size94KB，2 Pages; ManufacturerTekcon Electronics Corp

Download Datasheet Parametric View All

RGX227200T Overview

CAP,AL2O3,220UF,200VDC,20% -TOL,20% +TOL

RGX227200T Parametric

Parameter Name	Attribute value
Objectid	1225045579
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
Manufacturer's serial number	RGX(200V)

Preview

Download Datasheet

View All

Operating Temperature Range

Rated Voltage Range

Capacitance Range

Capacitance Tolerance

Rated Voltage

Leakage Current

-40~+85°C

6.3 ~ 450V

0.1 ~ 22000uF

±20% (at 25°C, 120Hz)

6.3~100

0.03CV or 4uA whichever is greater

(at 25°C, 1 minute)

0.01CV or 3uA whichever is greater

(at 25°C, 2 minutes)

160~450

CV 1000:0.1CV+40uA

(at 25°C, 1 minute)

CV > 1000:0.04CV+100uA

(at 25°C, 1 minute)

V: Rated Voltage (V)

C: Nominal Capacitance (uF)

Dissipation Factor

(at 25°C, 120Hz)

Rated Voltage (V) 6.3 10 16 25 35 50 63 100 160 200 250 315 350 400 450

tanδ

0.28 0.24 0.20 0.16 0.14 0.12 0.10 0.08 0.20 0.20 0.20 0.24 0.24 0.24 0.24

0.02 is added to each 1000uF increase over 1000 uF

Temperature Characteristics

(Impedance Ratio at 120Hz)

W.V

Z(-25°C)/Z(+20°C)

Z(-40°C)/Z(+20°C)

6.3

100 160 200 250 350 400 450

Load Life (+85°C)

Time

Capacitance Change

Dissipation Factor

Leakage Current

2000 hours

Within± 20% of the initial value

200% of the specified value or less

The specified value or less

Shelf Life (+85°C)

1000 hours. No voltage applied. After leaving the capacitor under on load at 85°C for 1000 hours,

they meet the specified value for load life characteristics listed above.

Frequency Coefficient

Rated

Voltage

(V)

6.3~16

Freq(Hz)

50,60 120

0.8

1.1

1.5

1.2

1.6

1.2

1.3

10K 100K

1.2

1.7

1.3

1.9

1.3

1.5

1.2

1.7

1.3

1.9

1.3

1.6

CV(uF,WV)

ALL CV Value

1000

25~35

1000<

1000

50~100

1000<

160~450 ALL CV Value

ΦD

Φd

2.0

0.5

6.3

2.5

1.0

3.5

5.0

0.6

12.5

7.5

0.8

Temperature Coefficient

Temperature(°C)

Factor

+70

1.35

+85

1.0

L<16:1.5

L16:2.0
