5086P13VP04 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 5086P13VP04

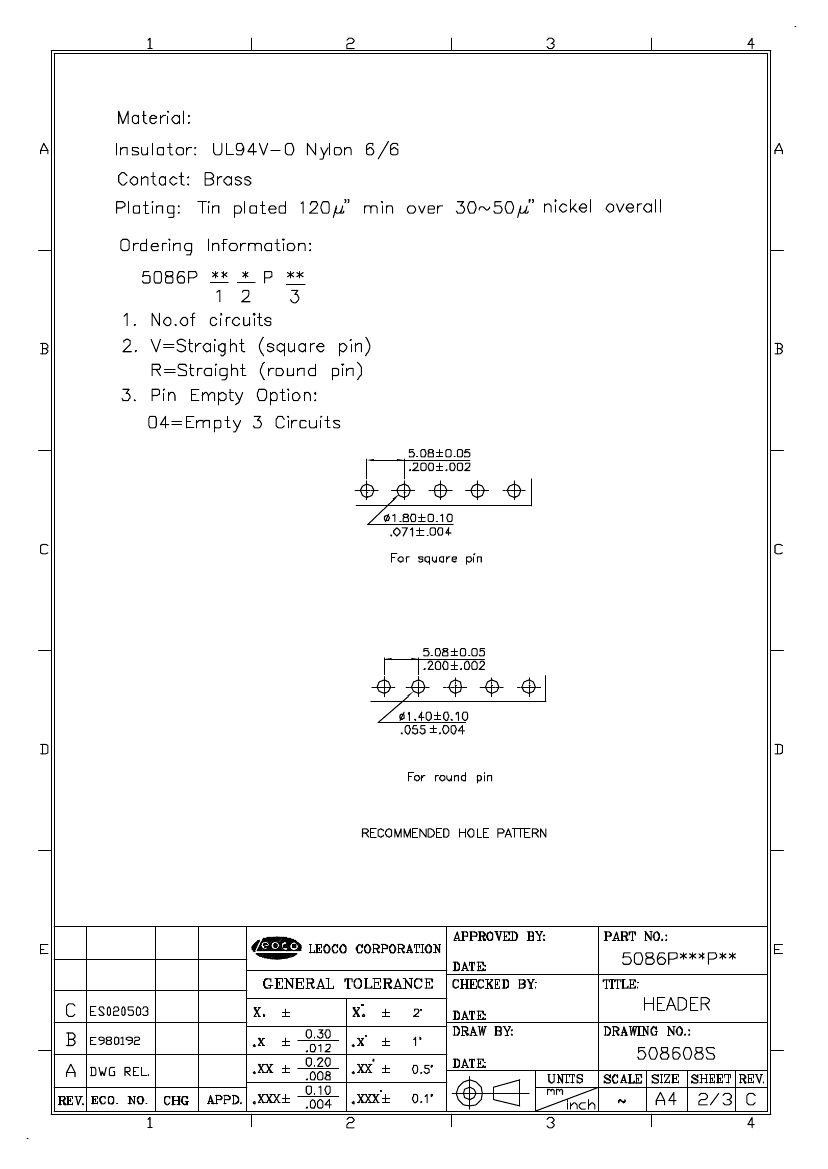

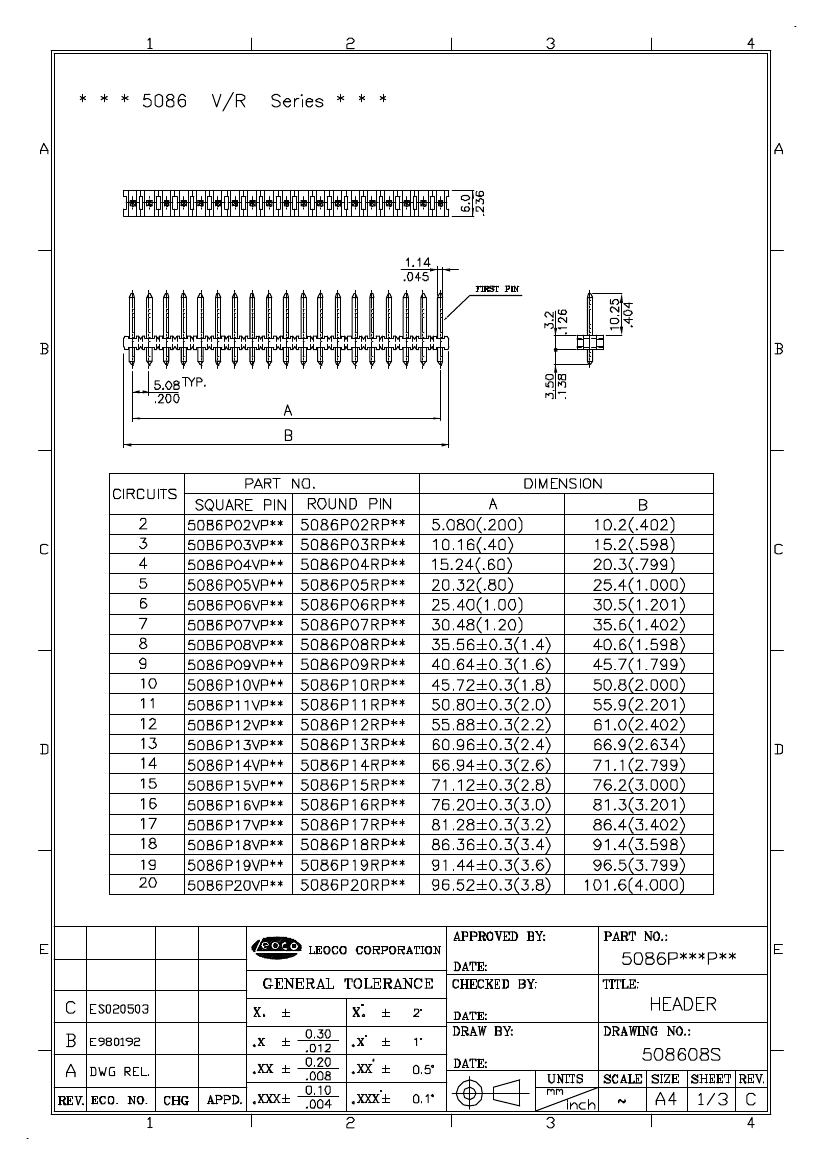

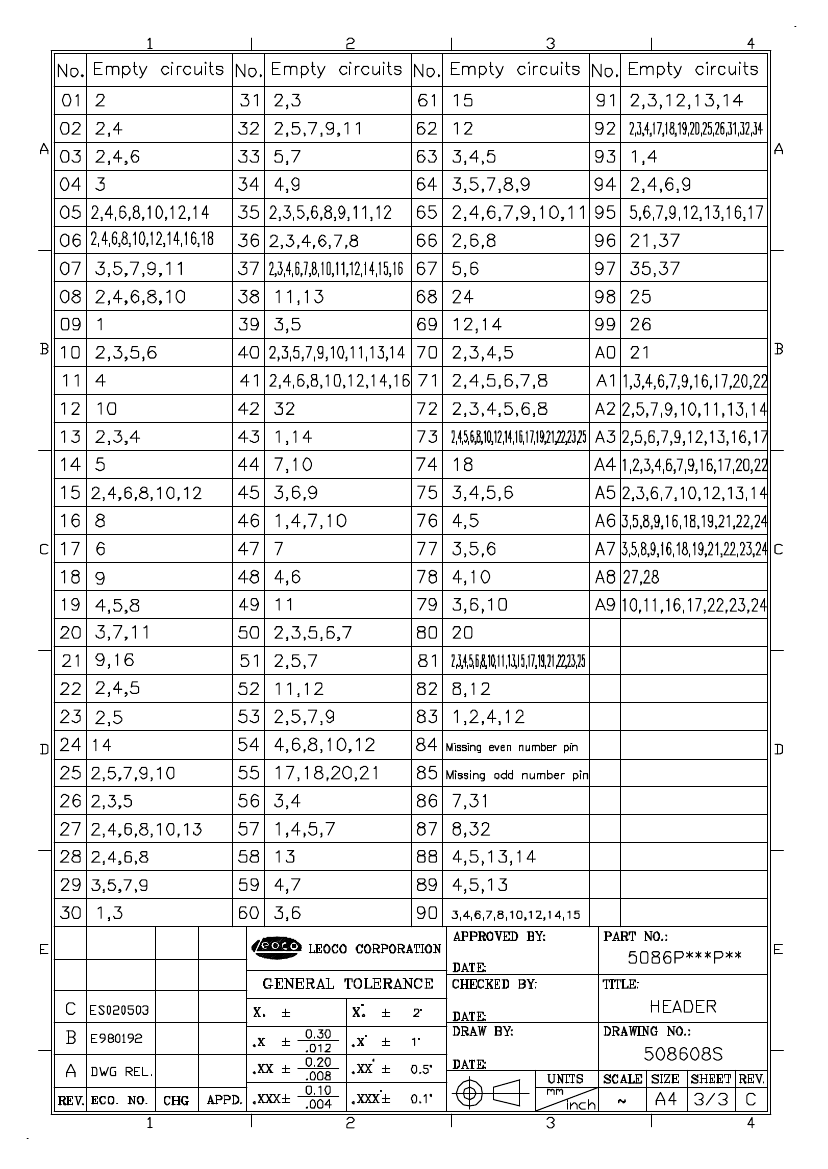

5086P13VP04: DescriptionBoard Connector, 13 Contact(s), 1 Row(s), Male, Straight, 0.2 inch Pitch, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size125KB，3 Pages; ManufacturerLeoco USA Corp; Websitehttp://www.leoco.com.tw

Download Datasheet Parametric Compare View All

5086P13VP04 Overview

Board Connector, 13 Contact(s), 1 Row(s), Male, Straight, 0.2 inch Pitch, Solder Terminal, Receptacle

5086P13VP04 Parametric

Parameter Name	Attribute value
Objectid	303564529
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	WITH STANDOFF,EMPTY CKT NO.3
body width	0.236 inch
subject depth	0.126 inch
body length	2.634 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	40 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1500VAC V
Insulation resistance	500000000 Ω
insulator material	NYLON
Manufacturer's serial number	5086P
Plug contact pitch	0.2 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-25 °C
PCB contact pattern	RECTANGULAR
Plating thickness	120u inch
Rated current (signal)	5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.138 inch
Terminal pitch	5.08 mm
Termination type	SOLDER
Total number of contacts	13

Preview

Download Datasheet

View All

5086P13VP04 Related Products

	5086P13VP04	5086P09VP04	5086P15VP04	5086P11VP04	5086P12VP04	5086P17VP04
Description	Board Connector, 13 Contact(s), 1 Row(s), Male, Straight, 0.2 inch Pitch, Solder Terminal, Receptacle	Board Connector, 9 Contact(s), 1 Row(s), Male, Straight, 0.2 inch Pitch, Solder Terminal, Receptacle	Board Connector, 15 Contact(s), 1 Row(s), Male, Straight, 0.2 inch Pitch, Solder Terminal, Receptacle	Board Connector, 11 Contact(s), 1 Row(s), Male, Straight, 0.2 inch Pitch, Solder Terminal, Receptacle	Board Connector, 12 Contact(s), 1 Row(s), Male, Straight, 0.2 inch Pitch, Solder Terminal, Receptacle	Board Connector, 17 Contact(s), 1 Row(s), Male, Straight, 0.2 inch Pitch, Solder Terminal, Receptacle
Reach Compliance Code	unknown	unknow	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	WITH STANDOFF,EMPTY CKT NO.3	WITH STANDOFF,EMPTY CKT NO.3	WITH STANDOFF,EMPTY CKT NO.3	WITH STANDOFF,EMPTY CKT NO.3	WITH STANDOFF,EMPTY CKT NO.3	WITH STANDOFF,EMPTY CKT NO.3
body width	0.236 inch	0.236 inch	0.236 inch	0.236 inch	0.236 inch	0.236 inch
subject depth	0.126 inch	0.126 inch	0.126 inch	0.126 inch	0.126 inch	0.126 inch
body length	2.634 inch	1.799 inch	3 inch	2.201 inch	2.402 inch	3.402 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	SN ON NI	SN ON NI	SN ON NI	SN ON NI	SN ON NI	SN ON NI
Contact completed and terminated	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	40 mΩ	40 mΩ	40 mΩ	40 mΩ	40 mΩ	40 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	1500VAC V	1500VAC V	1500VAC V	1500VAC V	1500VAC V	1500VAC V
Insulation resistance	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω
insulator material	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON
Manufacturer's serial number	5086P	5086P	5086P	5086P	5086P	5086P
Plug contact pitch	0.2 inch	0.2 inch	0.2 inch	0.2 inch	0.2 inch	0.2 inch
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	1	1	1	1	1	1
Number of rows loaded	1	1	1	1	1	1
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Plating thickness	120u inch	120u inch	120u inch	120u inch	120u inch	120u inch
Rated current (signal)	5 A	5 A	5 A	5 A	5 A	5 A
Guideline	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.138 inch	0.138 inch	0.138 inch	0.138 inch	0.138 inch	0.138 inch
Terminal pitch	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	13	9	15	11	12	17
