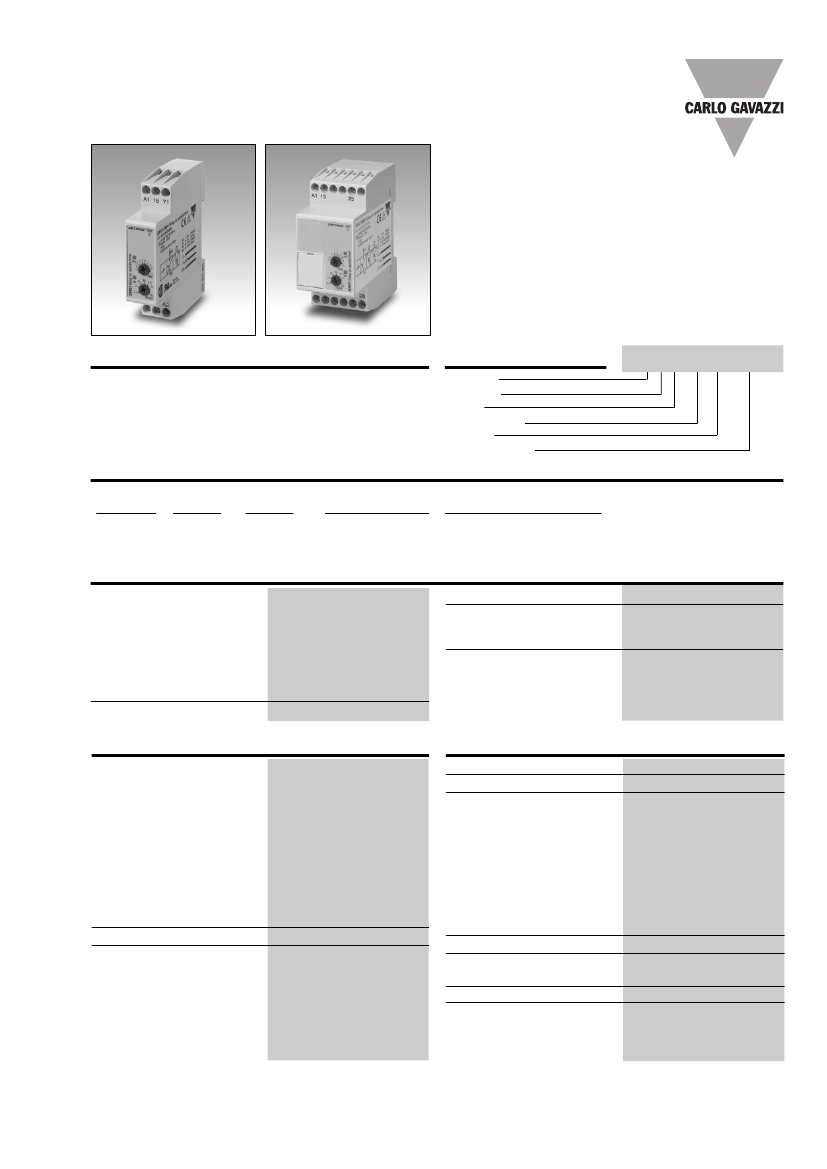

Timers
Delay on Operate
Types DAA51, DAA71
Time range 0.1 s to 100 h
Knob selection of time range
Knob adjustable time setting
Automatic start
Repeatability:
≤
0.2%
Output: 5 A SPDT or 5 A DPDT relays
For mounting on DIN-rail in accordance with
DIN/EN 50 022
• 17.5 mm (DAA51C) or 35.5 mm (DAA71D) DIN-rail
housing (DIN 43880)
• Combined AC and DC power supply
• LED indication for relay status and power supply ON
•
•
•
•
•
•
•
DAA51
DAA71
Product Description
Multi-voltage delay on oper-
ate timer with 7 selectable
time ranges within 0.1 s and
100 h. For mounting on DIN-
rail
Housing 17.5 mm wide for
SPDT version and 35.5 mm
for DPDT version, suitable
both for back and front panel
mounting.
Ordering Key
Housing
Function
Type
Item number
Output
Power supply
DAA 51 C M24
Type Selection
Mounting
DIN-rail
DIN-rail
Output
SPDT
DPDT
Housing
Mini-D
Mini-D
Supply:
12 to 240 VAC/DC
DAA 71 D W24
Supply:
24 VDC and 24 to 240 VAC
DAA 51 C M24
DAA 71 D M24
Time Specifications
Time ranges
Knob selectable
0.1 to
1 to
6 to
60 to
0.1 to
1 to
10 to
≤
5%
1s
10 s
60 s
600 s
1h
10 h
100 h
Repeatability
Time variation
Within rated power supply
Within ambient temperature
Reset
Power supply interruption
≤
0.2%
≤
0.05%/V
≤
0.2%/°C
≥
200 ms
Setting accuracy
Supply Specifications
Power supply
Rated operational voltage
through terminals:
A1, A2 M24
(DAA51C)
(DAA71D)
A1, A2
M24
W24
Overvoltage cat. II
(IEC 60664, IEC 60038)
24 VDC ± 15% and
24 to 240 VAC + 10% -15%,
45 to 65 Hz
24 to 240 VAC +10% -15%,
45 to 65 Hz
12 to 240 VDC +10% -15%
and
12 to 240 VAC +10% -15%,
45 to 65 Hz
≤
10 ms
4 VA
1.5 W
5.5 VA
2W
Output Specifications
Output
Rated insulation voltage
Contact Ratings
(AgSnO
2
)
DAA51 (SPDT):
Resistive loads
AC 1
DC 12
Small inductive loads AC 15
DC 13
DAA71 (DPDT)
Resistive loads
AC 1
Small inductive loads AC 15
DC 13
Mechanical life
Electrical life
Operating frequency
Dielectric strength
Dielectric voltage
Rated impulse withstand
voltage
SPDT or DPDT relays
250 VAC (rms)
µ
5 A @ 250 VAC
5 A @ 24 VDC
2.5 A @ 250 VAC
2.5 A @ 24 VDC
5 A @ 250 VAC
3 A @ 250 VAC
3 A @ 24 VDC
≥
30 x 10
6
operations
≥
10
5
operations
(at 5 A, 250 V, cos
ϕ
= 1)
< 7200 operations/h
2 kVAC (rms)
2.5 kV (1.2/50 µs)
Voltage interruption
Rated operational power
(DAA51C)
AC supply
DC supply
(DAA71D)
AC supply
DC supply
Specifications are subject to change without notice (28.07.06)
1
DAA51, DAA71
General Specifications
Power ON delay
Indication for
Power supply ON
Output relays ON
Environment
Degree of protection
Pollution degree
Operating temperature
Storage temperature
Housing
(DAA51C)
Dimesions
(DAA71D)
Material
Weight
Screw terminals
Tightening torque
Approvals
CE Marking
EMC
Immunity
Emission
≤
100 ms
LED, green
LED, yellow
(flashing when timing)
(EN 60529)
IP 20
2 (IEC 60664)
-20° to +60°C, R.H. < 95%
-30° to +80°C, R.H. < 95%
17.5 x 81 x 67.2 mm
35.5 x 81 x 67.2 mm
PA66
75 g
Max. 0.5 Nm according to
IEC EN 60947
UL, CSA
RINA (DAA51 only)
Yes
Electromagnetic Compatibillity
According to EN 61000-6-2
According to EN 61000-6-3
Mode of Operation
The yellow LED, flashing
when timing, is ON as soon
as the relay turns ON.
The set delay period begins
as soon as the power supply
is connected. At the end of
the set delay the relay oper-
ates and does not release
until the power supply is
interrupted for at least 200
ms. If the power supply is
interrupted for at least 200
ms before the relay operates
the time is set to zero and
the circuit is ready for a new
time period.
Time Setting
Centre knob:
Time setting on relative
scale: From 1 to 10 with
respect to the chosen range.
Lower knob:
Setting of time range

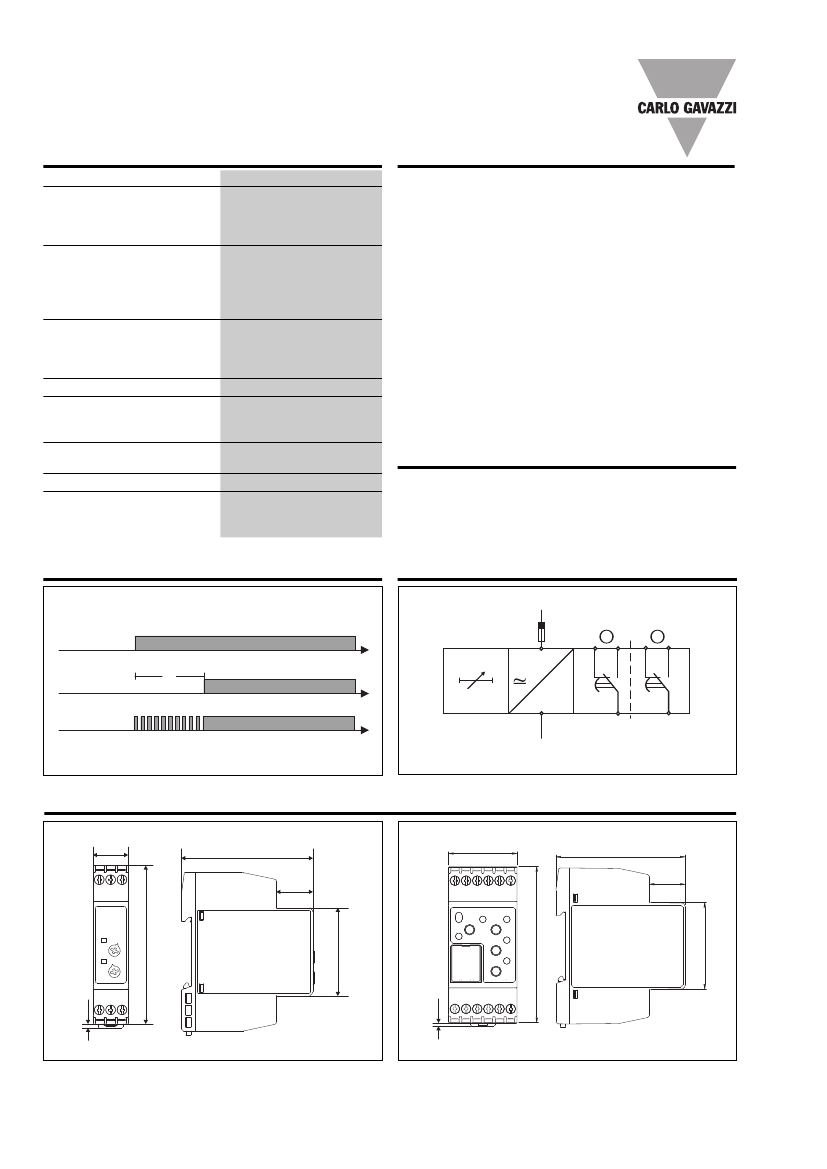

Operating Diagram
Wiring Diagram
Power Supply
alimentazione
A1
ON
Tensione di
L(+)
16
m
18 26
m
28
Relay
Relè
OFF
T
A2
15
25
LED
N(-)
DAA51C... DAA71D...
DAA01C... DAA01D...
DAA01D...
DAA71D...
Dimensions
DAA51
17.5
67.2
18.7
DAA71
35.5
67.2
18.7
81
81
45
2
2
2
