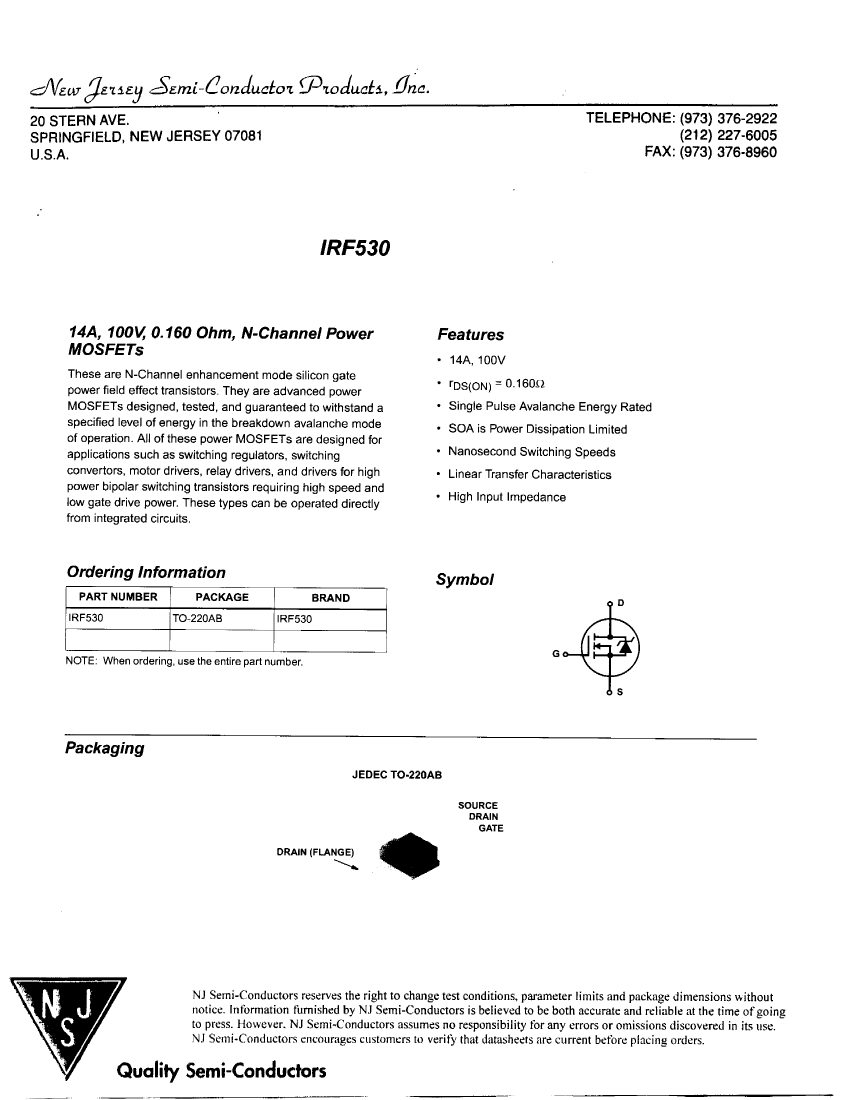

power field effect transistors. They are advanced power
MOSFETs designed, tested, and guaranteed to withstand a
specified level of energy in the breakdown avalanche mode
of operation. All of these power MOSFETs are designed for
applications such as switching regulators, switching
converters, motor drivers, relay drivers, and drivers for high
power bipolar switching transistors requiring high speed and
low gate drive power. These types can be operated directly
from integrated circuits.
Features
•
14A, 100V
' r
DS(ON)
= 0
• Single Pulse Avalanche Energy Rated
• SOA is Power Dissipation Limited
• Nanosecond Switching Speeds
• Linear Transfer Characteristics
• High Input Impedance
Ordering Information
PART NUMBER
IRF530
PACKAGE
TO-220AB
IRF530
BRAND
Symbol
oD
Go
NOTE: When ordering, use the entire part number.
6S
Packaging
JEDEC TO-220AB
SOURCE
DRAIN
GATE
DRAIN (FLANGE)
NJ Semi-Conductors reserves the right to change test conditions, parameter limits and package dimensions without
notice. Information furnished by NJ Semi-Conductors is believed to be both accurate and reliable at the time of going
to press. However. NJ Semi-Conductors assumes no responsibility for any errors or omissions discovered in its use.
NJ Semi-Conductors encourages customers to verity that datasheets are current before placing orders.
Quality Semi-Conductors
IRF530

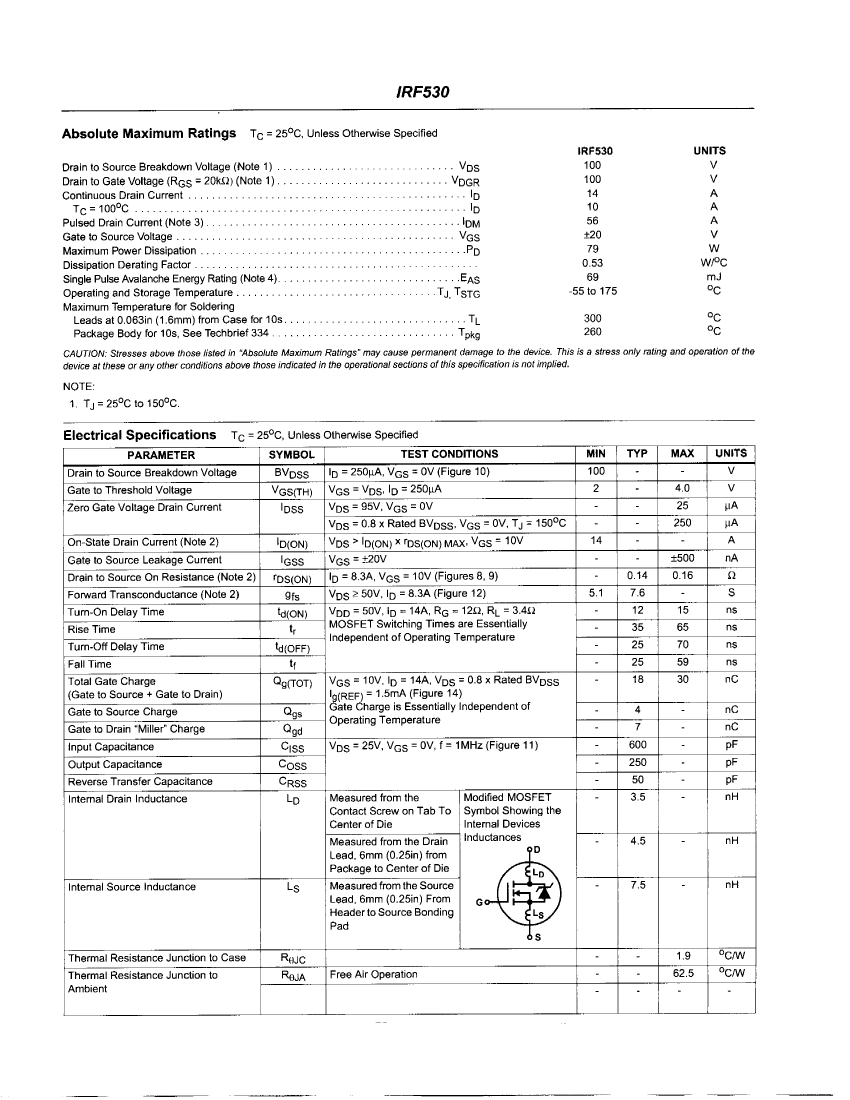

Absolute Maximum Ratings
T
c
=
25°C, Unless Otherwise Specified
VDS
V
DG
R
ID
ID
IDM
V
G
§
PD
EAS
Tj TSTG
T|_
T
p
^
g
IRF530
100
100
14
10
56
±20
79
0.53
69
-55 to 175
300
260
Drain to Source Breakdown Voltage (Note 1)
Drain to Gate Voltage (R
G
s = 20kl3) (Note 1)
Continuous Drain Current
T
C
= 100°C
Pulsed Drain Current (Note 3)
Gate to Source Voltage
Maximum Power Dissipation
Dissipation Derating Factor
Single Pulse Avalanche Energy Rating (Note 4)
Operating and Storage Temperature
Maximum Temperature for Soldering
Leads at 0.063in (1.6mm) from Case for 10s
Package Body for 10s, See Techbrief 334
UNITS
V
V
A
A
A
V
W
W/°C
mJ
°C
°C
°C
CAUTION: Stresses above those listed In "Absolute Maximum Ratings" may cause permanent damage to the device. This Is a stress only rating and operation of the
device at these or any other conditions above those indicated in the operational sections of this specification is not implied.
