A1272WV-2X13P

Description
Board Connector, 26 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Receptacle
CategoryThe connector    The connector
File Size94KB,1 Pages
ManufacturerJoint Tech Electronic Industrial Co., Ltd.
Download Datasheet Parametric View All

A1272WV-2X13P Overview

Board Connector, 26 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Receptacle

A1272WV-2X13P Parametric

Parameter NameAttribute value
Objectid304420079
Reach Compliance Codeunknown
ECCN codeEAR99
body width0.134 inch
subject depth0.079 inch
body length0.65 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU
Contact point genderMALE
Contact materialBRASS
contact modeRECTANGULAR
Contact resistance20 mΩ
Contact styleSQ PIN-SKT
Dielectric withstand voltage500VAC V
Insulation resistance5000000000 Ω
insulator materialNYLON
Manufacturer's serial numberA1272
Plug contact pitch0.05 inch
Match contact row spacing0.05 inch
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature85 °C
Minimum operating temperature-25 °C
PCB contact patternRECTANGULAR
PCB contact row spacing1.27 mm
Plating thicknessFLASH inch
Rated current (signal)1 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.102 inch
Terminal pitch1.27 mm
Termination typeSOLDER
Total number of contacts26

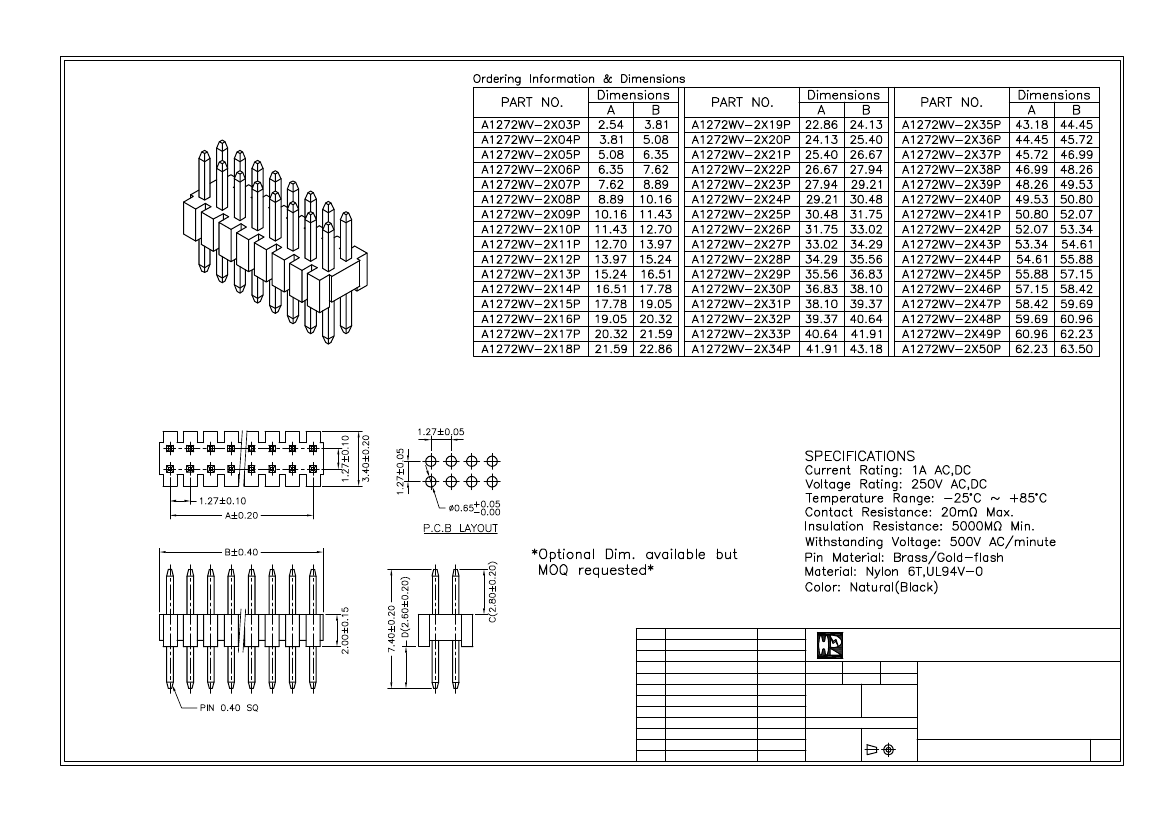

JOINT TECH ELECTRONIC IND. CO., LTD.
JOY DAY INDUSTRIAL CO., LTD.
UNIT
SCALE
SHEET
TITLE:
mm
1 of 1
DRAWN BY
APPROVED BY
董正一
董正一
2002.05.29 2002.05.29
GENERAL TOLERANCE
ANGLE±
X.X±0.25
X.XX±0.15
DRAW NO.:
X.XXX±0.05
A1272WV-2XNP
B1
B0
REVISE
NEW RELEASE
2006.12.03
2005.11.22
1.27mm PITCH
180°DUAL ROW
PIN HEADER
REV.
B1
REV.
DESCRIPTION
DATE
