PHA001-PTA1901GF datasheet, PDF

PHA001-PTA1901GF: DescriptionBoard Connector, 19 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Receptacle; CategoryThe connector The connector; File Size100KB，1 Pages; ManufacturerMMT Corp; Websitehttp://www.mmtmachrone.com

Download Datasheet Parametric View All

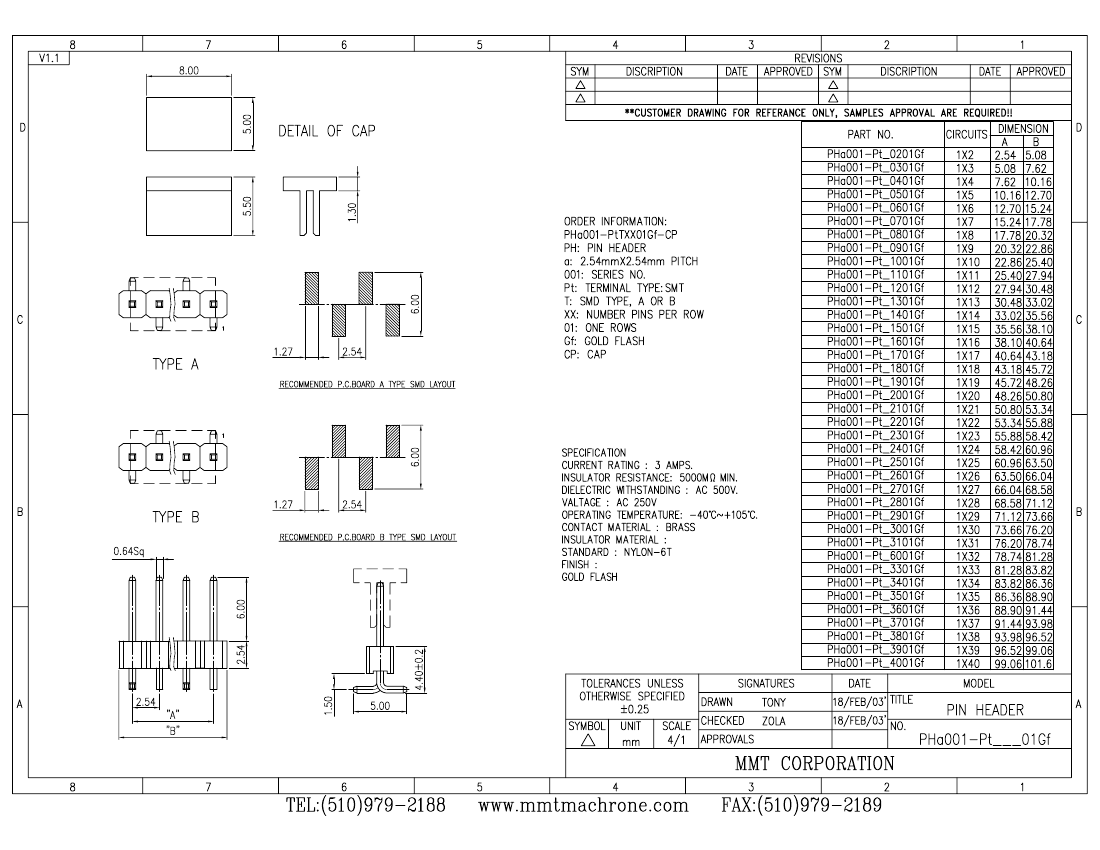

PHA001-PTA1901GF Overview

Board Connector, 19 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Receptacle

Parameter Name	Attribute value
Objectid	304313957
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.1 inch
subject depth	0.173 inch
body length	1.9 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	5000000000 Ω
insulator material	NYLON
Manufacturer's serial number	PHA001
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	STAGGERED
Plating thickness	FLASH inch
Rated current (signal)	3 A
reliability	COMMERCIAL
Terminal pitch	5.08 mm
Termination type	SURFACE MOUNT
Total number of contacts	19
