P0544NLT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> P0544NLT

P0544NLT: DescriptionPULSE TRANSFORMER FOR GATE DRIVE APPLICATION(S); CategoryPower/power management; File Size138KB，3 Pages; ManufacturerPulse A Technitrol Company; Websitehttp://www.pulseeng.com

Download Datasheet Parametric Compare View All

P0544NLT Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	P0544NLT	-	-	View	Buy Now

P0544NLT Overview

PULSE TRANSFORMER FOR GATE DRIVE APPLICATION(S)

P0544NLT Parametric

Parameter Name	Attribute value
Maximum operating temperature	130 Cel
Minimum operating temperature	-40 Cel
Number of functions	1
Processing package description	ROHS COMPLIANT
Lead-free	Yes
state	ACTIVE
Installation features	surface mount
Dimensions	L9.0XB8.6XH7.6 (mm)/L0.354XB0.339XH0.299 (inch)
Manufacturer Series	P0544NL
application	GATE DRIVE
minimum equivalent product	45.1 V-us
Isolation voltage	1500 kV
Primary inductance	3300 mH
Transformer type	pulse transformer
匝数比NP:NS	1:1:1

Preview

Download Datasheet

View All

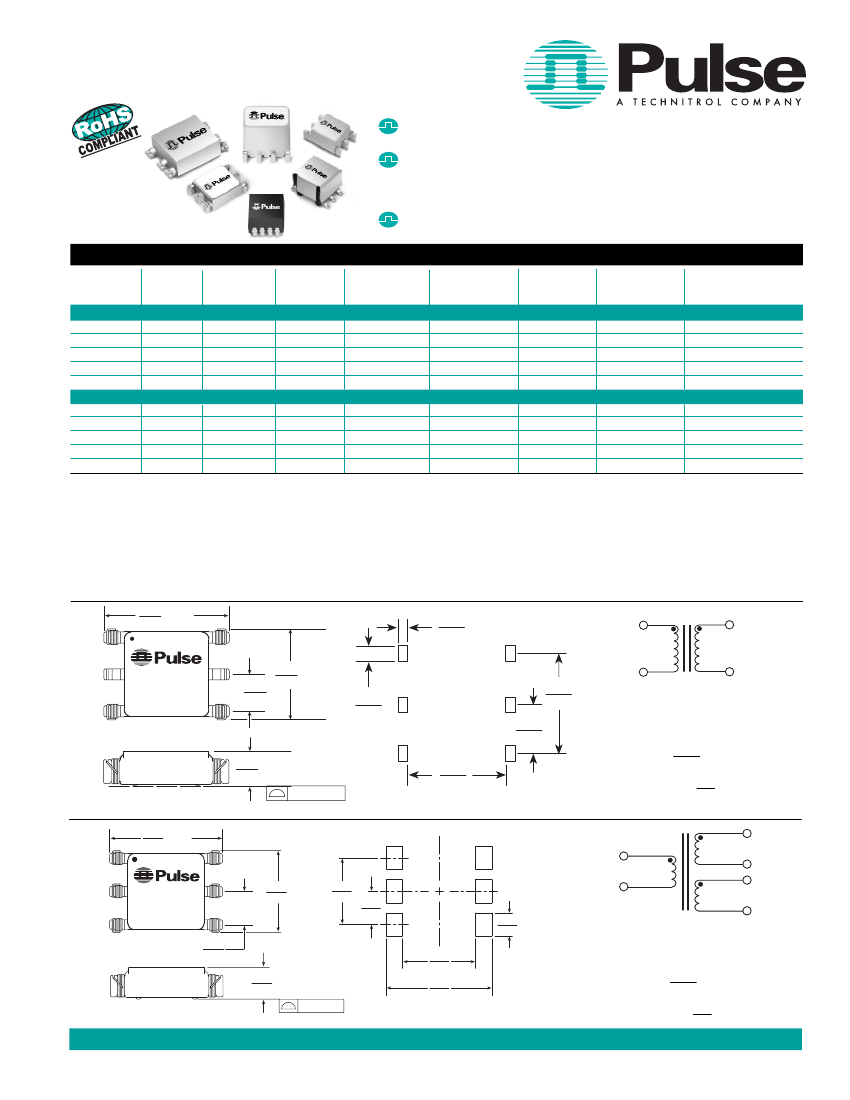

SMT GATE DRIVE TRANSFORMERS

1500V

Basic and Operational Insulation

1500V

isolation between Gate and Drive

Basic insulation (1.4mm creepage/clearance)

and operational available

Operating frequency: 50kHz and up

Electrical Specifications @ 25°C — Operating Temperature -40°C to 130°C

Part

3,4

Number

Turns

Ratio

Pri-Sec

Insulation

)

MAX

V*µsec

Primary

Inductance

(µH MIN)

Leakage

Inductance

(µH MAX)

DCR

Primary

(Ω MAX)

0.60

2.00

1.60

0.80

0.75

0.62

0.88

0.91

DCR

Secondary

(Ω MAX)

0.60

2.00

1.60

0.80

0.75

0.88

0.62

0.91

0.46

0.380

Package Size

(L x W x H)

(mm MAX)

8.6 x 6.7 x 2.5

8.0 x 6.6 x 5.3

9.0 x 8.6 x 7.6

7.2 x 6.1 x 3.8

8.6 x 6.7 x 3.6

11.8 x 8.8 x 4.0

9.0 x 8.6 x 7.6

PERATIONAL

NSULATION

PE-68386NL

1:1

1500

9.7

785

0.46

P0926NL

1:1:1

1500

23.8

300

0.50

P0544NL

1:1:1

1500

45.1

3300

0.70

P2033

1:1

1500

9.3

500

17.00

PA0264NL

1:1:1

1500

12.7

1140

0.65

ASIC

NSULATION

(1.4

MM CREEPAGE AND CLEARANCE BETWEEN

RIMARY AND

ECONDARY

)

PA0173NL

1:1:1

1500 Vrms

17.2

980

0.75

PA0185NL

1:1

1500 Vrms

17.2

980

0.75

PA0184NL

1:1

1500 Vrms

27.2

1200

0.50

PA0297NL

2:1:1

1500 Vrms

27.2

1200

0.60

PA0510NL

2.5:1:1

1500 Vrms

27.2

1200

0.68

NOTES:

1.The maximum volt-µsec rating limits the peak flux density to 2200 Gauss when used

in a unipolar drive application. For bi-polar drive applications a maximum volt-µsec of

two times this rating is acceptable (ie: 2* (volt*µsec rating) Volt*µsec = (voltage

applied to the primary) * dutycycle / Frequecy = V * alpha / Freq_Hz = V * µsec

2. Leakage inductance is measured at primary terminals with all secondaries shorted.

3.Optional Tape & Reel packaging can be ordered by adding a "T" suffix to the part

number (i.e. P0544NL becomes P0544NLT). Pulse complies to industry standard

tape and reel specification EIA481.

4.The "NL" suffix indicates an RoHS-compliant part number. Non-NL suffixed parts are

not necessarily RoHS compliant, but are electrically and mechanically equivalent to NL

versions. If a part number does not have the "NL" suffix, but an RoHS compliant version

is required, please contact Pulse for availability.

5.The temperature of the component (ambient plus temperature rise) must be within

the stated operating temperature range.

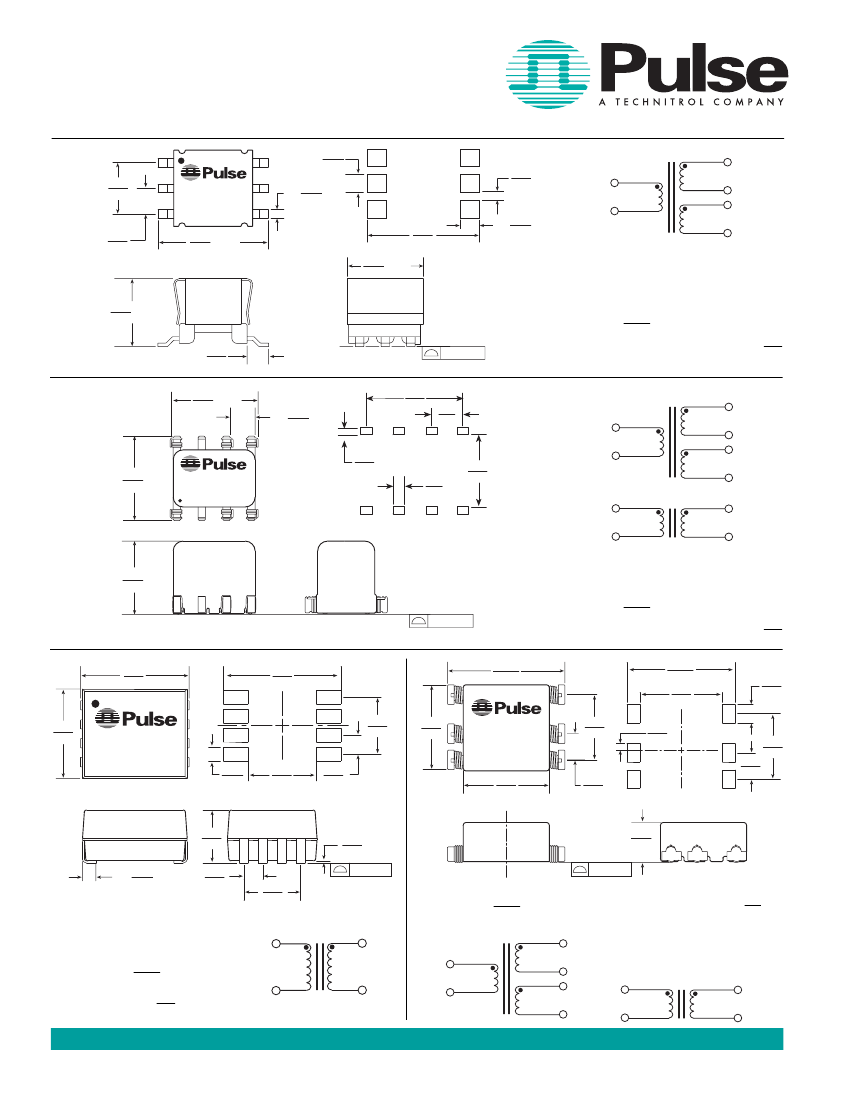

Mechanical

.340 MAX

8,64

Schematic

.050

1,27

PE-68386

Date Code

Country of Origin

4X .100

2,54

.265 MAX

6,73

.060

1,52

.200

5,08

.100

2,54

Weight

. . . . . . . . . . . . . .0.28 grams

Tape & Reel

. . . . . . . . . . .1500/reel

Tube

. . . . . . . . . . . . . . . . . .60/tube

Dimensions:

Inches

Unless otherwise specified,

all tolerances are ± .010

0,25

.098 MAX

2,49

.005/0,13

4 SURFACES

.225

5,71

SUGGESTED PAD LAYOUT

.340 MAX

8,64

P0264

Date Code

Country of Origin

4X .100

2,54

.140 MAX

3,56

.005/0,13

6 SURFACES

.265 MAX

6,73

.200

5,08 .100

2,54

.070

1,78

.220

5,59

.320

8,13

Weight

. . . . . . . . . . . . . .0.23 grams

Tape & Reel

. . . . . . . . . . . .800/reel

Tube

. . . . . . . . . . . . . . . . . .75/tube

Dimensions:

Inches

Unless otherwise specified,

all tolerances are ± .010

0,25

SUGGESTED PAD LAYOUT

USA 858 674 8100

•

Germany 49 7032 7806 0

•

Singapore 65 6287 8998

•

Shanghai

86 21 54643211 / 2

•

China 86 755 33966678

•

Taiwan 886 3 4641811

www.pulseeng.com

113

SPM2007 (6/08)

P0544NLT Related Products

	P0544NLT	PA0264T	OPERATIONAL	PA0184T
Description	PULSE TRANSFORMER FOR GATE DRIVE APPLICATION(S)	PULSE TRANSFORMER FOR GATE DRIVE APPLICATION(S)	PULSE TRANSFORMER FOR GATE DRIVE APPLICATION(S)	PULSE TRANSFORMER FOR GATE DRIVE APPLICATION(S)
Maximum operating temperature	130 Cel	130 Cel	130 Cel	130 Cel
Minimum operating temperature	-40 Cel	-40 Cel	-40 Cel	-40 Cel
Number of functions	1	1	1	1
Processing package description	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Lead-free	Yes	Yes	Yes	Yes
state	ACTIVE	ACTIVE	ACTIVE	ACTIVE
Installation features	surface mount	surface mount	surface mount	surface mount
Dimensions	L9.0XB8.6XH7.6 (mm)/L0.354XB0.339XH0.299 (inch)	L8.6XB6.7XH2.5 (mm)/L0.339XB0.264XH0.098 (inch)	L8.6XB6.7XH2.5 (mm)/L0.339XB0.264XH0.098 (inch)	L8.6XB6.7XH2.5 (mm)/L0.339XB0.264XH0.098 (inch)
Manufacturer Series	P0544NL	PE-68386NL	PE-68386NL	PE-68386NL
application	GATE DRIVE	GATE DRIVE	GATE DRIVE	GATE DRIVE
minimum equivalent product	45.1 V-us	9.7 V-us	9.7 V-us	9.7 V-us
Isolation voltage	1500 kV	1500 kV	1500 kV	1500 kV
Primary inductance	3300 mH	785 mH	785 mH	785 mH
Transformer type	pulse transformer	pulse transformer	pulse transformer	pulse transformer
匝数比NP:NS	1:1:1	1:1	1:1	1:1
EU RoHS regulations	-	Yes	Yes	Yes
terminal coating	-	MATTE Tin(500) OVER Nickel(100)	MATTE Tin(500) OVER Nickel(100)	MATTE Tin(500) OVER Nickel(100)
