8005F-822

Description
Telecom and Datacom Connector, 8 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle
CategoryThe connector    The connector
File Size29KB,1 Pages
ManufacturerSouth Sea Terminal Co., Ltd.
Download Datasheet Parametric View All

8005F-822 Overview

Telecom and Datacom Connector, 8 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle

8005F-822 Parametric

Parameter NameAttribute value
Objectid303804856
Reach Compliance Codeunknown
ECCN codeEAR99
Board mount optionsSPLIT BOARD LOCK
body width0.524 inch
subject depth0.81 inch
body length0.687 inch
Body/casing typeRECEPTACLE
Connector typeTELECOM AND DATACOM CONNECTOR
Contact to complete cooperationAU ON NI
Contact point genderMALE
Contact styleTELCOM, MODULAR
insulator materialGLASS FILLED POLYESTER
Manufacturer's serial number8005
Installation option 1LOCKING
Installation option 2MOUNTING FLANGE
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of ports1
PCB contact patternSTAGGERED
Plating thickness15u inch
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.126 inch
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts8

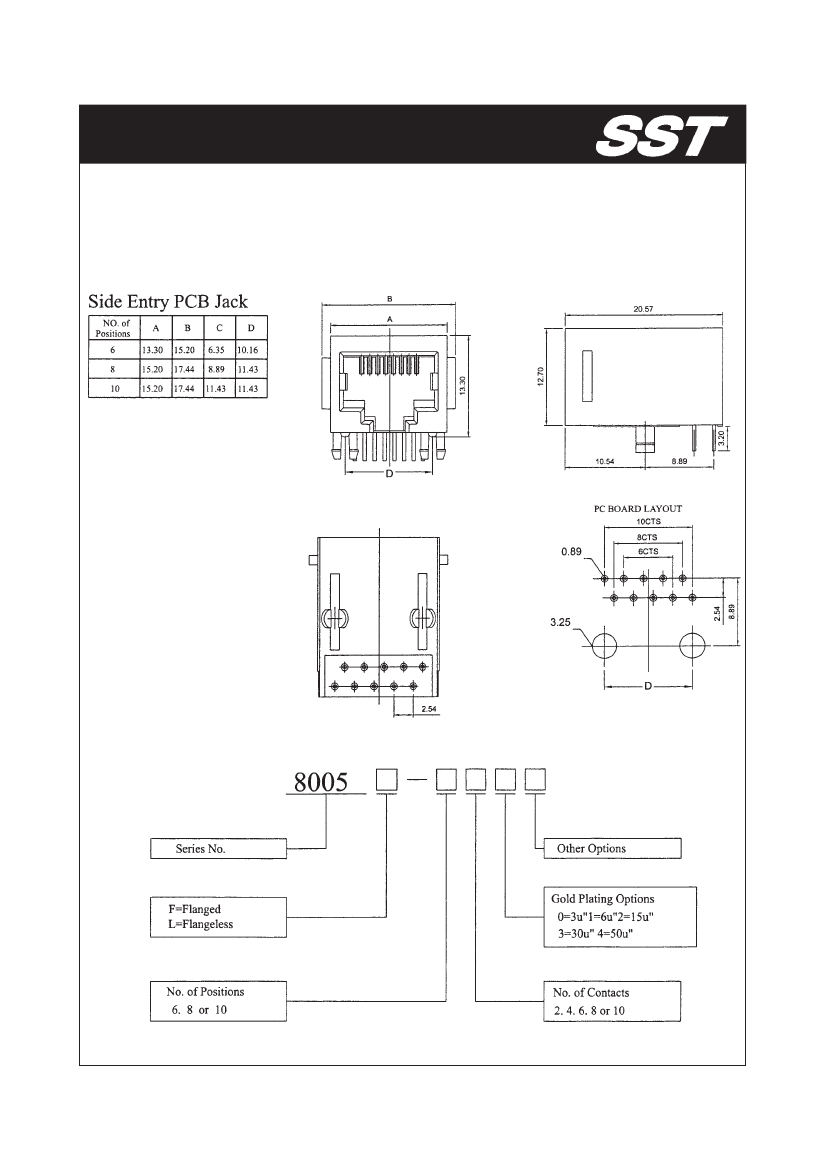

8005 SERIES MODULAR JACK
Side Entry type
HOUSING : GLASS FILLED POLYESTER UL 94V-0
CONTACT : 0.46 MM DIAMETER ALLOY. GOLD PLATED OVER NICKET IN CONTACT AREA
GOLD PLATED : SELECTIVE GOLD PLATED.
