DD09ST

Description
D Type Connector, 9 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, Hole .112-.124, Plug
CategoryThe connector    The connector
File Size65KB,1 Pages
ManufacturerAUK Contractors Co., Ltd.
Download Datasheet Parametric View All

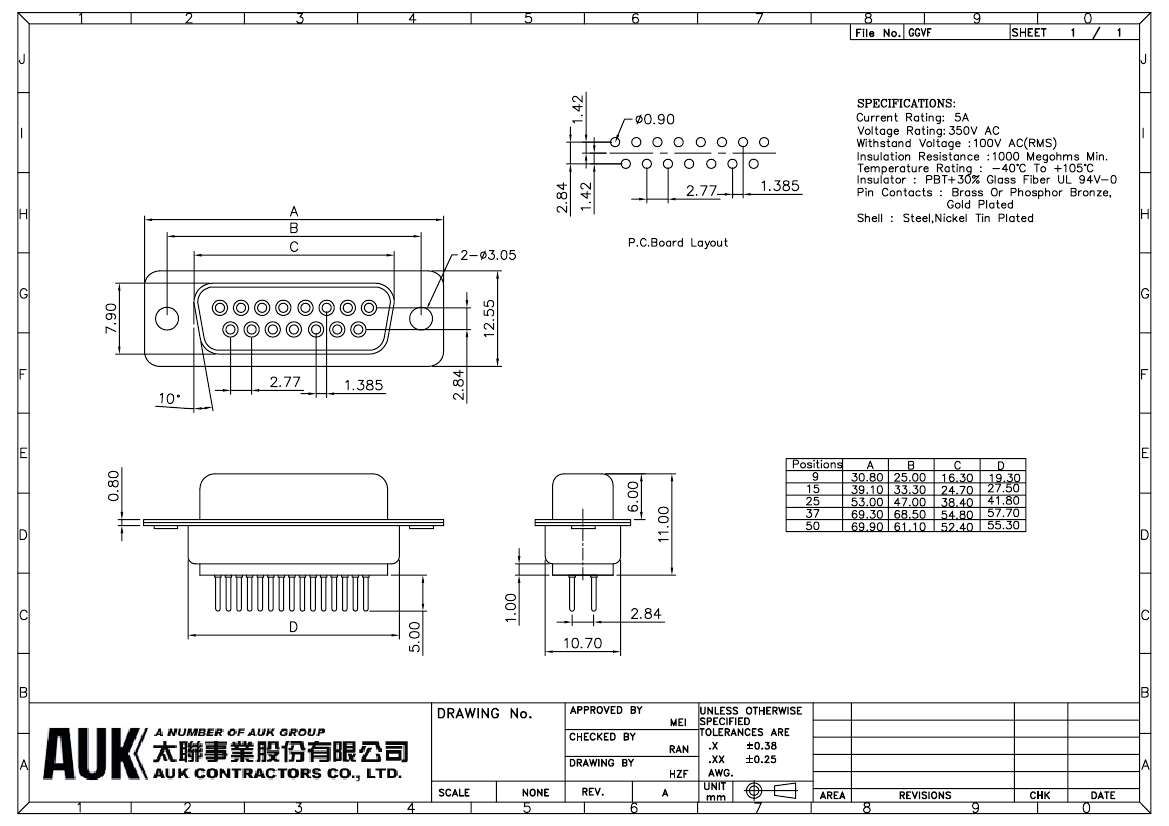

DD09ST Overview

D Type Connector, 9 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, Hole .112-.124, Plug

DD09ST Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
Objectid303782847
Reach Compliance Codeunknown
ECCN codeEAR99
body width0.494 inch
subject depth0.197 inch
body length1.213 inch
Body/casing typePLUG
Contact to complete cooperationAU
Contact point genderFEMALE
contact modeSTAGGERED
Contact styleRND PIN-SKT
Dielectric withstand voltage100VAC V
Insulation resistance1000000000 Ω
Insulator colorWHITE
insulator materialGLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial numberDD
Plug contact pitch0.109 inch
Match contact row spacing0.112 inch
Installation option 1HOLE .112-.124
Installation option 2LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
PCB row number2
Number of rows loaded2
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
PCB contact patternSTAGGERED
PCB contact row spacing2.8448 mm
Rated current (signal)5 A
GuidelineUL
reliabilityCOMMERCIAL
Shell surfaceTIN
Shell materialSTEEL
Terminal length0.197 inch
Terminal pitch2.7686 mm
Termination typeSOLDER
Total number of contacts9
DD09ST
