DS09SNT datasheet, PDF - EEWORLD Datasheet

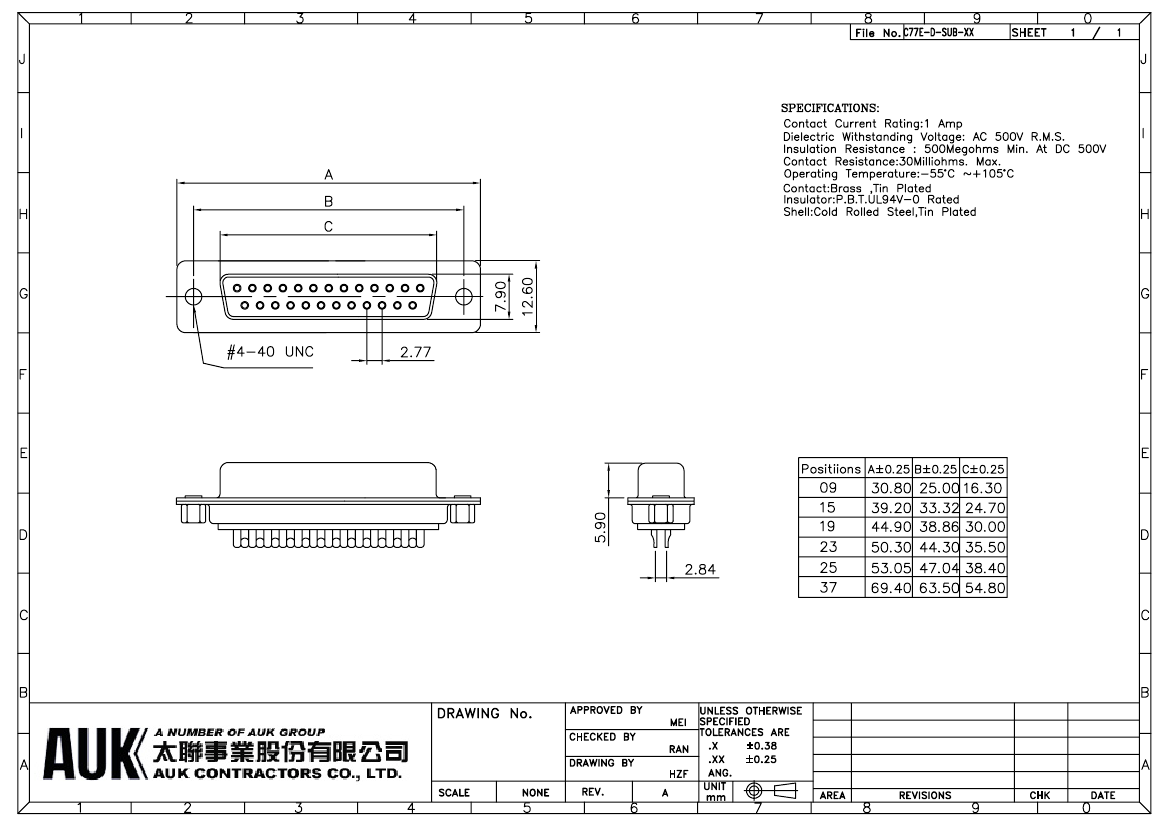

DS09SNT: DescriptionD Type Connector, 9 Contact(s), Female, 0.109 inch Pitch, Solder Lug Terminal, #4-40, Plug; CategoryThe connector The connector; File Size62KB，1 Pages; ManufacturerAUK Contractors Co., Ltd.

Download Datasheet Parametric Compare View All

DS09SNT Overview

D Type Connector, 9 Contact(s), Female, 0.109 inch Pitch, Solder Lug Terminal, #4-40, Plug

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	303783227
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	TRAY PACKAGING
body width	0.496 inch
body length	1.213 inch
Body/casing type	PLUG
Contactor design	PREASSEM CONN
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	BRASS
contact mode	STAGGERED
Contact resistance	30 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	500000000 Ω
Insulator color	BLUE
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	DS
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	#4-40
Installation option 2	RIVET
Installation type	PANEL
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Termination type	SOLDER LUG
Total number of contacts	9

DS09SKN

	DS09SNT	DS09SKN
Description	D Type Connector, 9 Contact(s), Female, 0.109 inch Pitch, Solder Lug Terminal, #4-40, Plug	D Type Connector, 9 Contact(s), Female, 0.109 inch Pitch, Solder Lug Terminal, #4-40, Plug
Is it Rohs certified?	incompatible	incompatible
Objectid	303783227	303783230
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Other features	TRAY PACKAGING	BAG PACKAGING
body width	0.496 inch	0.496 inch
body length	1.213 inch	1.213 inch
Body/casing type	PLUG	PLUG
Contactor design	PREASSEM CONN	PREASSEM CONN
Contact to complete cooperation	SN	SN
Contact completed and terminated	TIN	TIN
Contact point gender	FEMALE	FEMALE
Contact material	BRASS	BRASS
contact mode	STAGGERED	STAGGERED
Contact resistance	30 mΩ	30 mΩ
Contact style	RND PIN-SKT	RND PIN-SKT
Dielectric withstand voltage	500VAC V	500VAC V
Insulation resistance	500000000 Ω	500000000 Ω
Insulator color	BLUE	BLACK
insulator material	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	DS	DS
Plug contact pitch	0.109 inch	0.109 inch
Match contact row spacing	0.112 inch	0.112 inch
Installation option 1	#4-40	#4-40
Installation option 2	RIVET	RIVET
Installation type	PANEL	PANEL
Number of rows loaded	2	2
Maximum operating temperature	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C
Rated current (signal)	1 A	1 A
Guideline	UL	UL
reliability	COMMERCIAL	COMMERCIAL
Shell surface	TIN	TIN
Shell material	STEEL	STEEL
Termination type	SOLDER LUG	SOLDER LUG
Total number of contacts	9	9
