MPV1X10 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> MPV1X10

MPV1X10: DescriptionBoard Connector, 10 Contact(s), 1 Row(s), Female, 0.079 inch Pitch, Crimp Terminal, Locking, Plug; CategoryThe connector The connector; File Size208KB，1 Pages; ManufacturerAUK Contractors Co., Ltd.

Download Datasheet Parametric Compare View All

MPV1X10 Overview

Board Connector, 10 Contact(s), 1 Row(s), Female, 0.079 inch Pitch, Crimp Terminal, Locking, Plug

MPV1X10 Parametric

Parameter Name	Attribute value
Objectid	304401790
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.079 inch
subject depth	0.28 inch
body length	0.803 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact point gender	FEMALE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
insulator material	POLYAMIDE
Manufacturer's serial number	MPV
Plug contact pitch	0.079 inch
Installation option 1	LOCKING
Installation type	CABLE
Number of rows loaded	1
polarization key	POLARIZED HOUSING
Guideline	UL
reliability	COMMERCIAL
Termination type	CRIMP
Total number of contacts	10

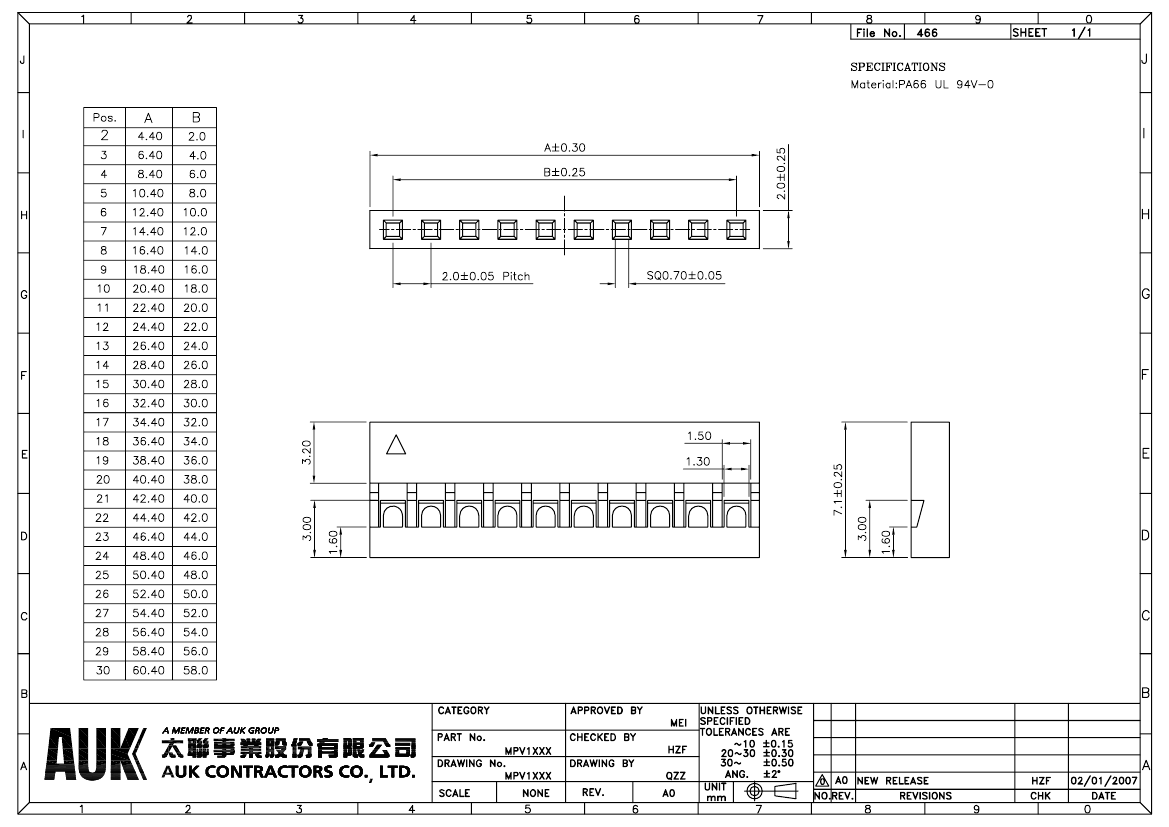

Preview

Download Datasheet

View All

MPV1X10 Related Products

	MPV1X10	MPV1X09	MPV1X06	MPV1X11	MPV1X04
Description	Board Connector, 10 Contact(s), 1 Row(s), Female, 0.079 inch Pitch, Crimp Terminal, Locking, Plug	Board Connector, 9 Contact(s), 1 Row(s), Female, 0.079 inch Pitch, Crimp Terminal, Locking, Plug	Board Connector, 6 Contact(s), 1 Row(s), Female, 0.079 inch Pitch, Crimp Terminal, Locking, Plug	Board Connector, 11 Contact(s), 1 Row(s), Female, 0.079 inch Pitch, Crimp Terminal, Locking, Plug	Board Connector, 4 Contact(s), 1 Row(s), Female, 0.079 inch Pitch, Crimp Terminal, Locking, Plug
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
body width	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch
subject depth	0.28 inch	0.28 inch	0.28 inch	0.28 inch	0.28 inch
body length	0.803 inch	0.724 inch	0.488 inch	0.882 inch	0.331 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contactor design	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
insulator material	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE
Manufacturer's serial number	MPV	MPV	MPV	MPV	MPV
Plug contact pitch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE
Number of rows loaded	1	1	1	1	1
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Guideline	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Termination type	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP
Total number of contacts	10	9	6	11	4
Maker	-	AUK Contractors Co., Ltd.	AUK Contractors Co., Ltd.	AUK Contractors Co., Ltd.	AUK Contractors Co., Ltd.
