3F3SPA12S43A30X datasheet, PDF

Datasheet> All Categories > The connector> The connector> 3F3SPA12S43A30X

3F3SPA12S43A30X: DescriptionD Subminiature Connector; CategoryThe connector The connector; File Size85KB，1 Pages; ManufacturerCONEC; Websitehttp://www.conec.com

Download Datasheet Parametric View All

3F3SPA12S43A30X Overview

D Subminiature Connector

3F3SPA12S43A30X Parametric

Parameter Name	Attribute value
Objectid	1308551393
Reach Compliance Code	compliant
Connector type	D SUBMINIATURE CONNECTOR
Manufacturer's serial number	3F3S

Preview

Download Datasheet

View All

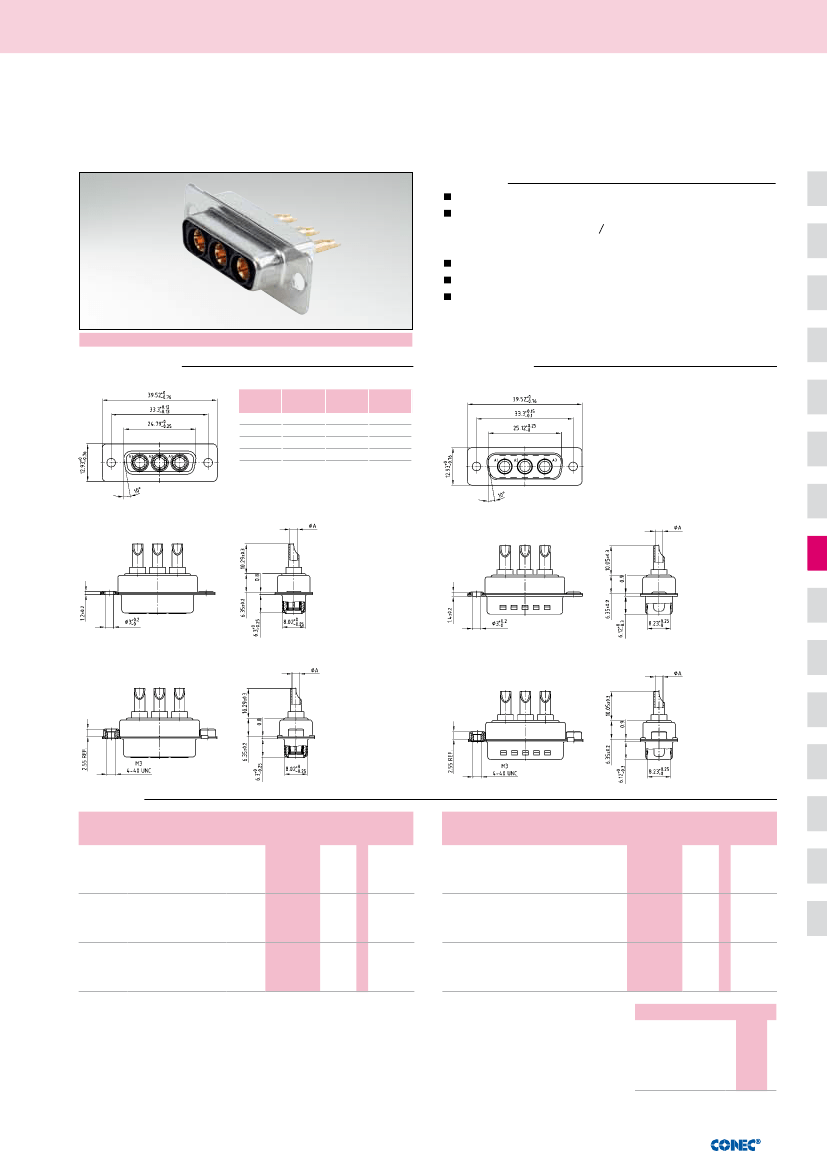

C- Filte r C omb inat ion D -SU B C on ne c t o r s

C-Filter Combination D-SUB

3W3

Solder cup – Precision machined contacts – For wire size AWG 8…20

Description

707 VDC (other DWV on request)

Mounting styles:

- with through-hole, Ø .118” 3 mm

- with 4-40 UNC or M3 threaded insert

Quality class 3 (also available in quality class 1)

Shell: Steel tin plated, optionally brass tin plated

Selective gold plated contacts available on request

RoHS compliant – UL listed, File No.: E228329

Socket connector

Termination

code

Plug connector

Current

rating

10A

20A

30A

40A

Wire size

AWG 16-20

AWG 12-14

AWG 10-12

AWG 8-10

ØA

1.80

2.70

3.50

4.80

Mounting style: Through-hole

Mounting style: Threaded insert

Order data

Socket connector

Type

3W3

Plug connector

AWG

16…20

12…14

10…12

8…10

16…20

12…14

10…12

8…10

16…20

12…14

10…12

8…10

Mounting style

Through-hole

4-40 UNC Threaded insert

M3 Threaded insert

Capacitance Part Number

47 nF

3F3S SA 22 S41A10

3F3S SA 22 S42A10

3F3S SA 22 S43A10

3F3S SA 22 S44A10

3F3S SA 22 S41A30

3F3S SA 22 S42A30

3F3S SA 22 S43A30

3F3S SA 22 S44A30

3F3S SA 22 S41A20

3F3S SA 22 S42A20

3F3S SA 22 S43A20

3F3S SA 22 S44A20

Type

3W3

Mounting style

Through-hole

4-40 UNC Threaded insert

M3 Threaded insert

AWG Capacitance Part Number

16…20

12…14

10…12

8…10

16…20

12…14

10…12

8…10

16…20

12…14

10…12

8…10

47 nF

3F3S PA 22 S41A10

3F3S PA 22 S42A10

3F3S PA 22 S43A10

3F3S PA 22 S44A10

3F3S PA 22 S41A30

3F3S PA 22 S42A30

3F3S PA 22 S43A30

3F3S PA 22 S44A30

3F3S PA 22 S41A20

3F3S PA 22 S42A20

3F3S PA 22 S43A20

3F3S PA 22 S44A20

For other capacitance values refer to the part number creator.

Capacitance value

100 nF

47 nF

12 nF

10 nF

5 nF

1.3 nF

Code

8| 7
