11S251T1D-11-XLY-60 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 11S251T1D-11-XLY-60

11S251T1D-11-XLY-60: DescriptionBoard Connector, 11 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Plug; CategoryThe connector The connector; File Size224KB，1 Pages; ManufacturerGSN Electronics

Download Datasheet Parametric Compare View All

11S251T1D-11-XLY-60 Overview

Board Connector, 11 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Plug

11S251T1D-11-XLY-60 Parametric

Parameter Name	Attribute value
Objectid	304408227
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.1 inch
subject depth	0.197 inch
body length	1.1 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
insulator material	THERMOPLASTIC
Manufacturer's serial number	11S251T1D
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Plating thickness	FLASH inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	11

Preview

Download Datasheet

View All

GSN

board to board

Total Process Quality

11S251T1E

11S251T1F

11S251T1N

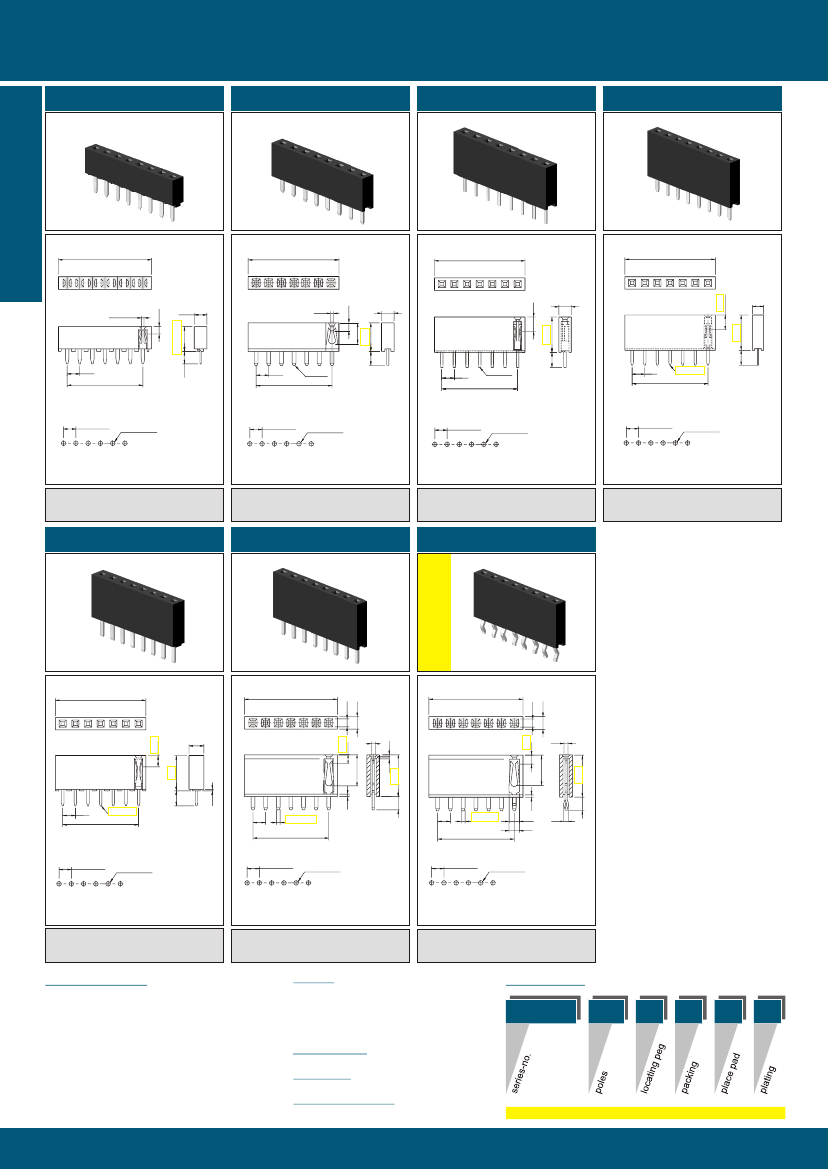

female header vertical single row THT 2.54

11S251T1D

2.54 x n ±0.20

(2.54 x n) +0.7 ±0.20

2.54 x n

(2.54 x n) +0.4

0.48±0.05

1.50

2.54±0.05

5.00±0.10

0.50

1.75

2.54

4.20

1.80

2.50

2.60

2.50

5.70

7.10

2.54

2.54 x (n -1) ±0.10

3.00

2.54

0.7x0.4

2.54 x (n -1)

2.54

0.5x0.25

2.54 x (n -1)

0.6x0.25

2.54

2.54 x (n -1)

2.54±0.05

Ø1.02±0.05

2.54±0.05

Ø1.02±0.05

2.54±0.05

Ø1.02±0.05

2.54±0.05

Ø1.02±0.05

available pole no.:

03 to 40

available pole no.:

02 to 40

available pole no.:

03 to 40

available pole no.:

03 to 40

mates with male header:

0.635x0.635

mates with male header:

0.635x0.635

mates with male header:

0.635x0.635

mates with male header:

0.635x0.635

11S251T1H

11S251T1G

kinked pins

11S251T1P

(2.54 x n) +0.9

(2.54 x n) +0.5 ±0.20

1.60

2.54

(2.54 x n)+0.5 ±0.20

1.60

2.54

2.50

2.10

2.50

0.40

8.50

6.04

0.40

3.00

0.80

8.5

6.04

3.5

0.5

3.15

0.50

0.8x0.25

2.54

2.54 x (n -1)

0.50

2.54

0.64x0.4

2.54 x (n -1)

2.54

0.64x0.4

2.54 x (n -1)

2.00

2.08

1.0

2.54±0.05

Ø1.02±0.05

2.54±0.05

Ø1.02±0.05

2.54±0.05

Ø1.02±0.05

available pole no.:

03 to 40

available pole no.:

02 to 40

available pole no.:

02 to 40

mates with male header:

0.635x0.635

mates with male header:

0.635x0.635

mates with male header:

0.635x0.635

technical data

contact material

insulator

flammability

dielectric strength

current rating

insulation resistance

contact resistance

operating temperature

soldering temperature

: phosphor bronze

: thermoplastic

: UL 94V-0

500V AC for 1 minute

1000 meg Ohm min

20 milli Ohm max

plating

00=

30=

50=

60=

flash gold

selective gold 0.75µm

tin

selective flash gold

X=without

Y=without, P=with

order code

11S251T1-

06 -

Y-

locating peg

place pad

: -40°C to +105°C

: 260°C max / 10 sec

possible packing

L=loose,

P=tray,

T=tube

other dimensions / materials are available, please contact us

A41

support@gsn.sg

3.15

8.50

2.90

2.8

8.40
