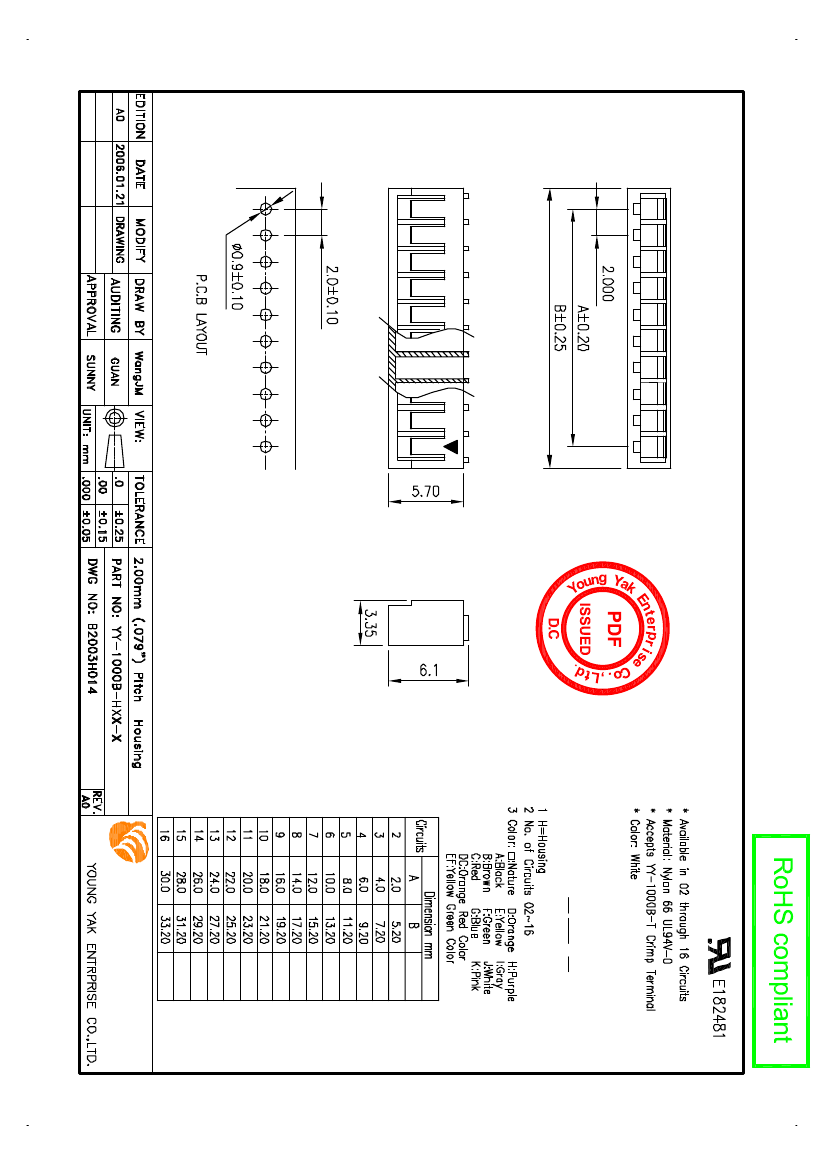

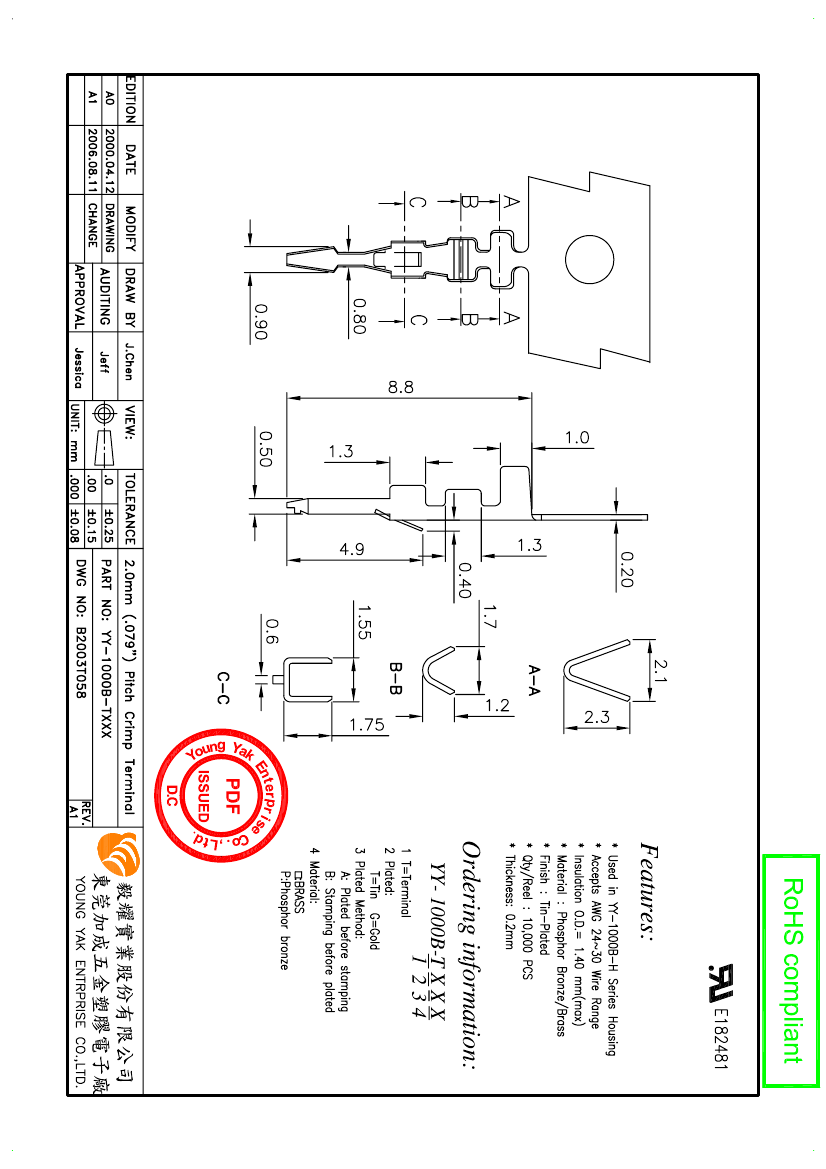

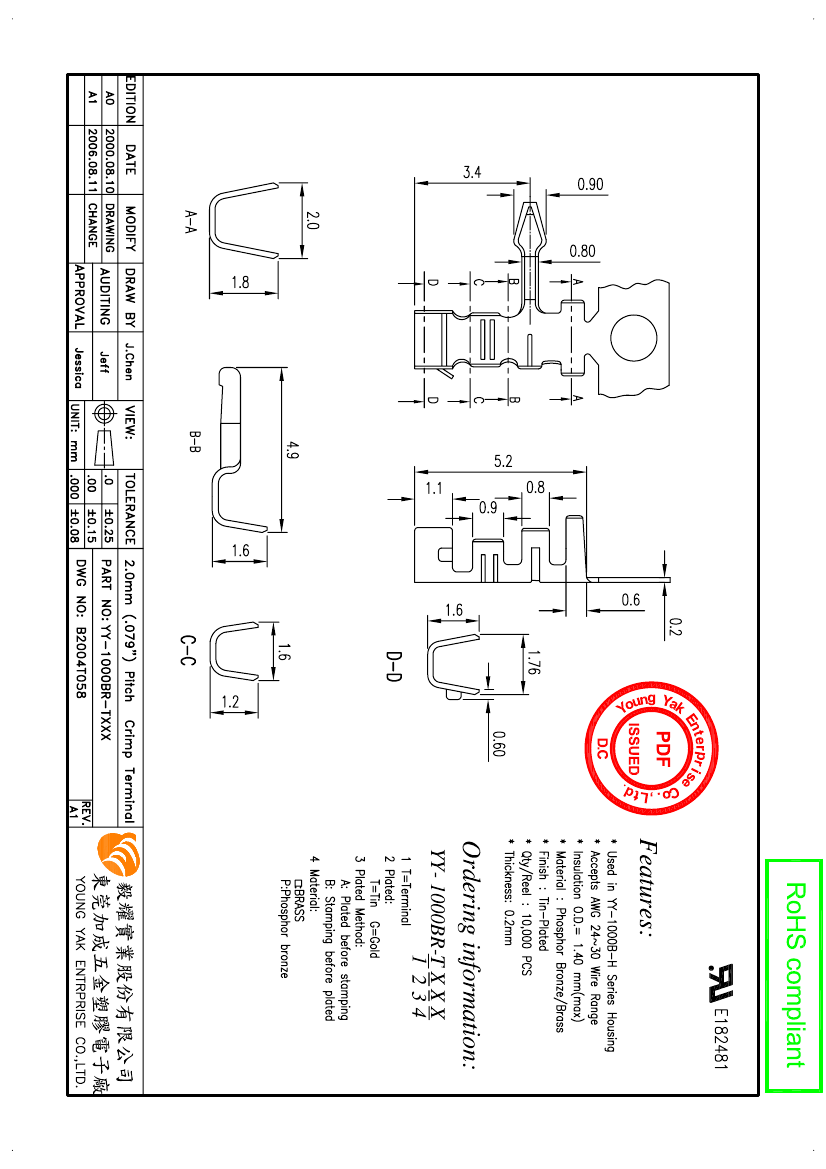

Board Connector, 10 Contact(s), 1 Row(s), Female, 0.079 inch Pitch, Crimp Terminal, Locking, Plug
| Parameter Name | Attribute value |
| Objectid | 1299310426 |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| Other features | NONE |
| body width | 0.132 inch |
| subject depth | 0.24 inch |
| body length | 0.835 inch |
| Body/casing type | PLUG |
| Connector type | BOARD CONNECTOR |
| Contactor design | STAMPED, STRIP |
| Contact point gender | FEMALE |
| contact mode | RECTANGULAR |
| Contact style | SQ PIN-SKT |
| Dielectric withstand voltage | 800VAC V |
| Insulation resistance | 1000000000 Ω |
| insulator material | NYLON |
| Manufacturer's serial number | YY-1000B-H |
| Plug contact pitch | 0.079 inch |
| Installation option 1 | LOCKING |
| Installation type | CABLE |
| Number of rows loaded | 1 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -25 °C |
| polarization key | POLARIZED HOUSING |
| Rated current (signal) | 3 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Termination type | CRIMP |
| Total number of contacts | 10 |
| Maximum wire diameter | 24 AWG |
| Minimum wire diameter | 30 AWG |
| YY-1000B-H10-A | YY-1000B-H09-A | YY-1000B-H04-A | YY-1000B-H14 | YY-1000B-H15 | |
|---|---|---|---|---|---|
| Description | Board Connector, 10 Contact(s), 1 Row(s), Female, 0.079 inch Pitch, Crimp Terminal, Locking, Plug | Board Connector, 9 Contact(s), 1 Row(s), Female, 0.079 inch Pitch, Crimp Terminal, Locking, Plug | Board Connector, 4 Contact(s), 1 Row(s), Female, 0.079 inch Pitch, Crimp Terminal, Locking, Plug | Board Connector, 14 Contact(s), 1 Row(s), Female, 0.079 inch Pitch, Crimp Terminal, Locking, Plug | Board Connector, 15 Contact(s), 1 Row(s), Female, 0.079 inch Pitch, Crimp Terminal, Locking, Plug |
| Reach Compliance Code | compliant | compliant | compliant | compliant | compliant |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Other features | NONE | NONE | NONE | NONE | NONE |
| body width | 0.132 inch | 0.132 inch | 0.132 inch | 0.132 inch | 0.132 inch |
| subject depth | 0.24 inch | 0.24 inch | 0.24 inch | 0.24 inch | 0.24 inch |
| body length | 0.835 inch | 0.756 inch | 0.362 inch | 1.15 inch | 1.228 inch |
| Body/casing type | PLUG | PLUG | PLUG | PLUG | PLUG |
| Connector type | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR |
| Contactor design | STAMPED, STRIP | STAMPED, STRIP | STAMPED, STRIP | STAMPED, STRIP | STAMPED, STRIP |
| Contact point gender | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE |
| contact mode | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Contact style | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT |
| Dielectric withstand voltage | 800VAC V | 800VAC V | 800VAC V | 800VAC V | 800VAC V |
| Insulation resistance | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω |
| insulator material | NYLON | NYLON | NYLON | NYLON | NYLON |
| Manufacturer's serial number | YY-1000B-H | YY-1000B-H | YY-1000B-H | YY-1000B-H | YY-1000B-H |
| Plug contact pitch | 0.079 inch | 0.079 inch | 0.079 inch | 0.079 inch | 0.079 inch |
| Installation option 1 | LOCKING | LOCKING | LOCKING | LOCKING | LOCKING |
| Installation type | CABLE | CABLE | CABLE | CABLE | CABLE |
| Number of rows loaded | 1 | 1 | 1 | 1 | 1 |
| Maximum operating temperature | 85 °C | 85 °C | 85 °C | 85 °C | 85 °C |
| Minimum operating temperature | -25 °C | -25 °C | -25 °C | -25 °C | -25 °C |
| polarization key | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING |
| Rated current (signal) | 3 A | 3 A | 3 A | 3 A | 3 A |
| Guideline | UL | UL | UL | UL | UL |
| reliability | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Termination type | CRIMP | CRIMP | CRIMP | CRIMP | CRIMP |
| Total number of contacts | 10 | 9 | 4 | 14 | 15 |
| Maximum wire diameter | 24 AWG | 24 AWG | 24 AWG | 24 AWG | 24 AWG |
| Minimum wire diameter | 30 AWG | 30 AWG | 30 AWG | 30 AWG | 30 AWG |
| Maker | - | Young Yak Enterprise Co., Ltd. | Young Yak Enterprise Co., Ltd. | Young Yak Enterprise Co., Ltd. | - |
