YY-1140-H10 datasheet, PDF - EEWORLD Datasheet

YY-1140-H10: DescriptionBoard Connector, 10 Contact(s), 1 Row(s), Female, 0.079 inch Pitch, Crimp Terminal, Locking, Plug; CategoryThe connector The connector; File Size200KB，4 Pages; ManufacturerYoung Yak Enterprise Co., Ltd.

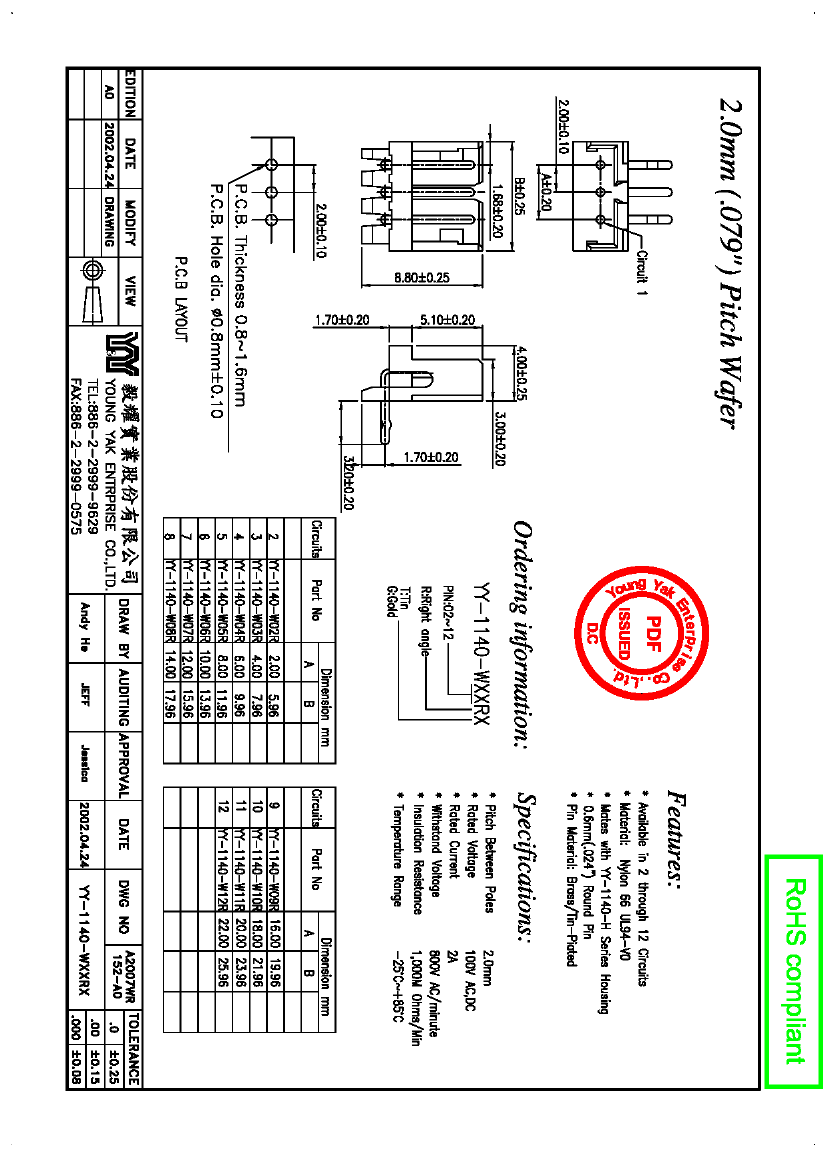

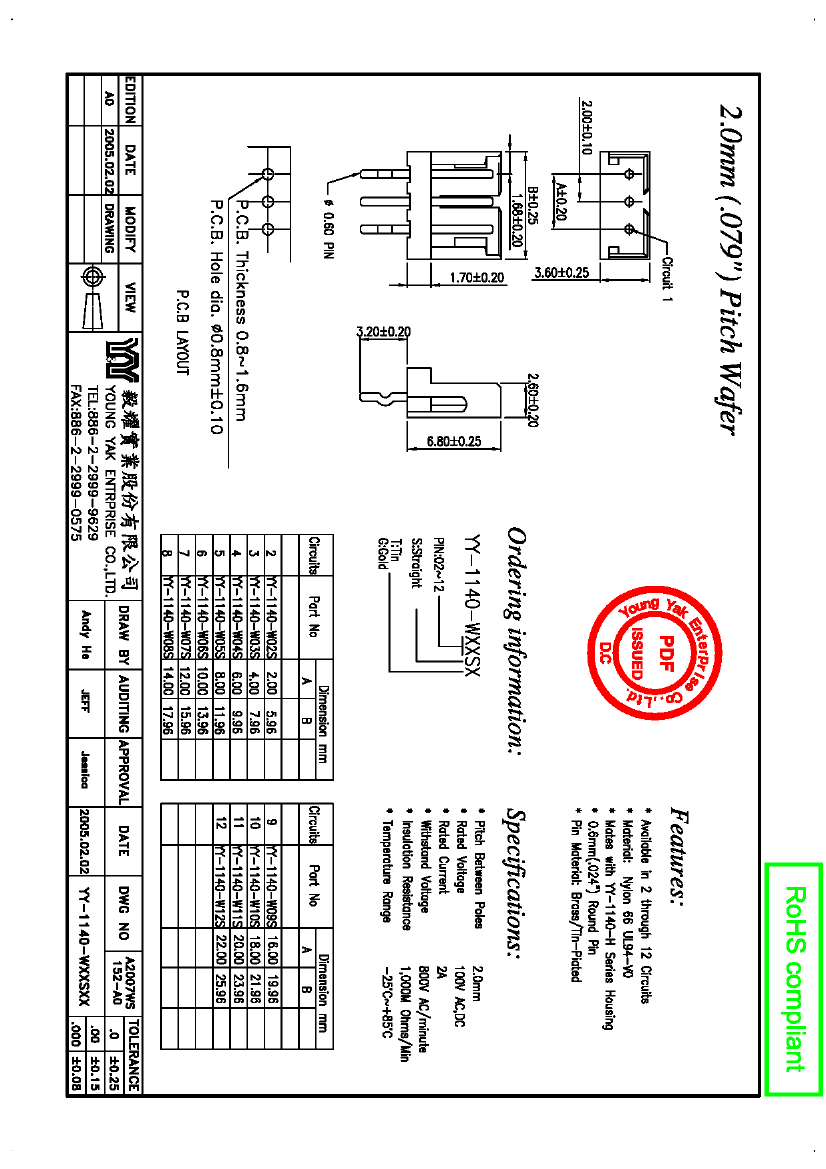

Download Datasheet Parametric View All

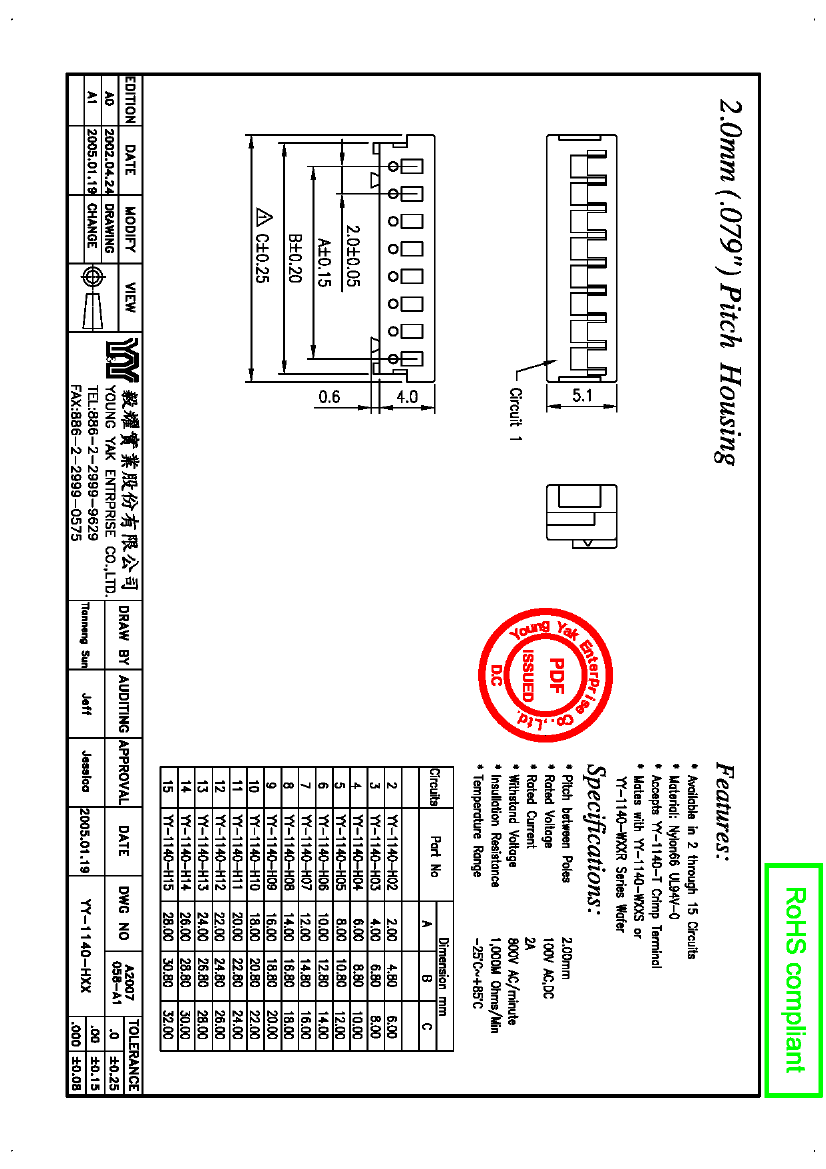

YY-1140-H10 Overview

Board Connector, 10 Contact(s), 1 Row(s), Female, 0.079 inch Pitch, Crimp Terminal, Locking, Plug

Parameter Name	Attribute value
Objectid	303977286
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.181 inch
subject depth	0.201 inch
body length	0.866 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact point gender	FEMALE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	800VAC V
Insulation resistance	1000000000 Ω
insulator material	NYLON
Manufacturer's serial number	YY-1140
Plug contact pitch	0.079 inch
Installation option 1	LOCKING
Installation type	CABLE
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
polarization key	POLARIZED HOUSING
Rated current (signal)	2 A
Guideline	UL
reliability	COMMERCIAL

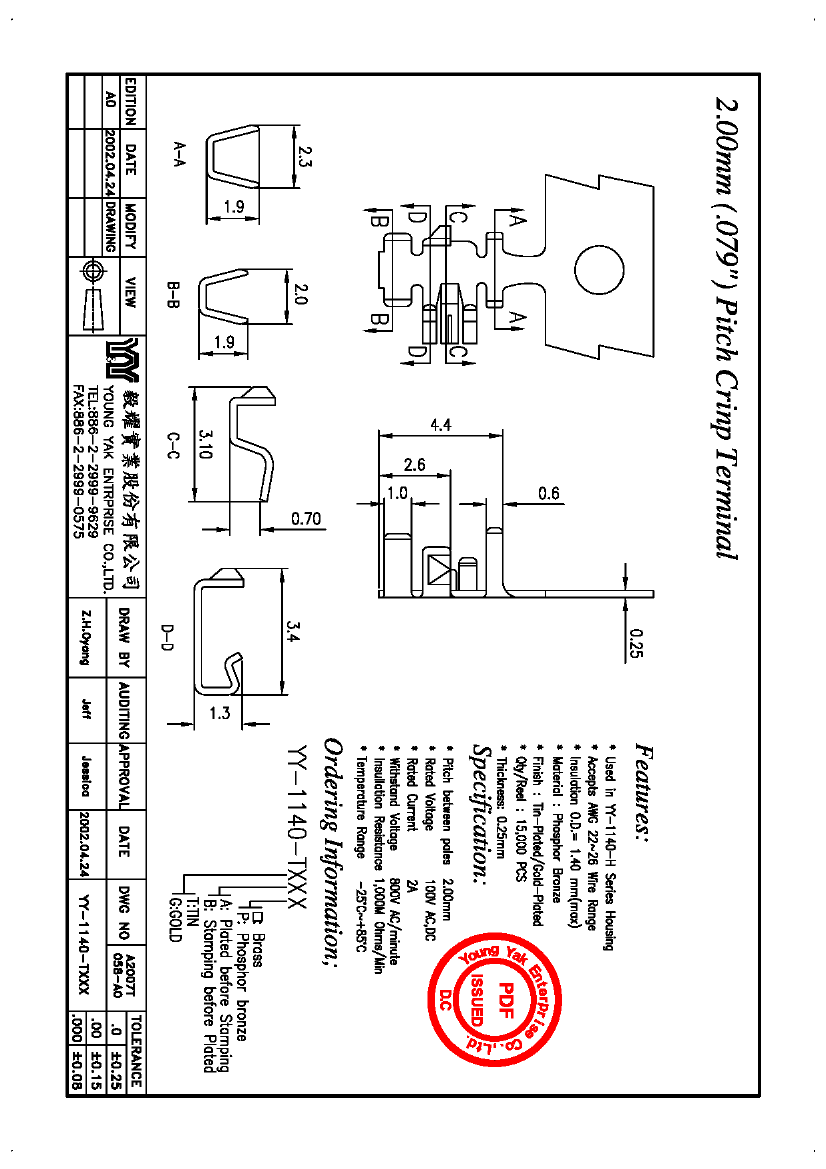

Termination type	CRIMP
Total number of contacts	10
