YY-2900-W12S datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> YY-2900-W12S

YY-2900-W12S: DescriptionBoard Connector, 12 Contact(s), 1 Row(s), Male, Straight, 0.2 inch Pitch, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size155KB，3 Pages; ManufacturerYoung Yak Enterprise Co., Ltd.

Download Datasheet Parametric Compare View All

YY-2900-W12S Overview

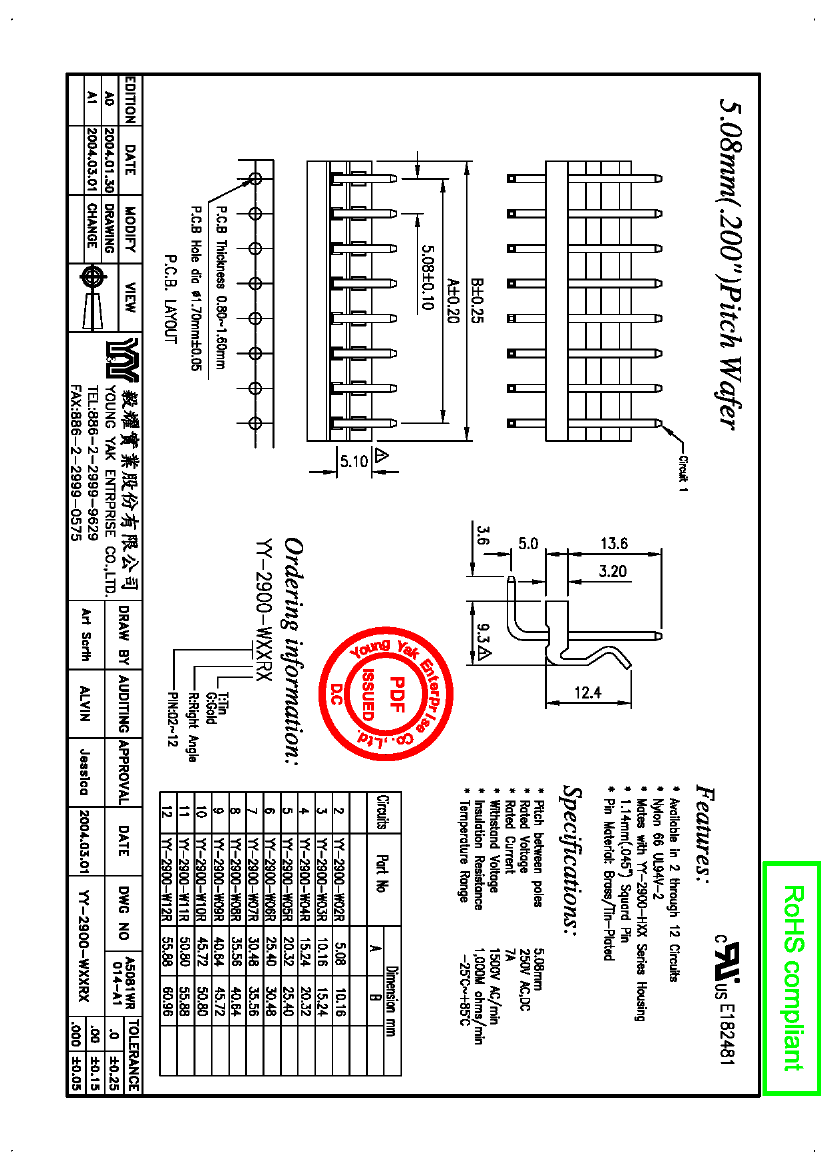

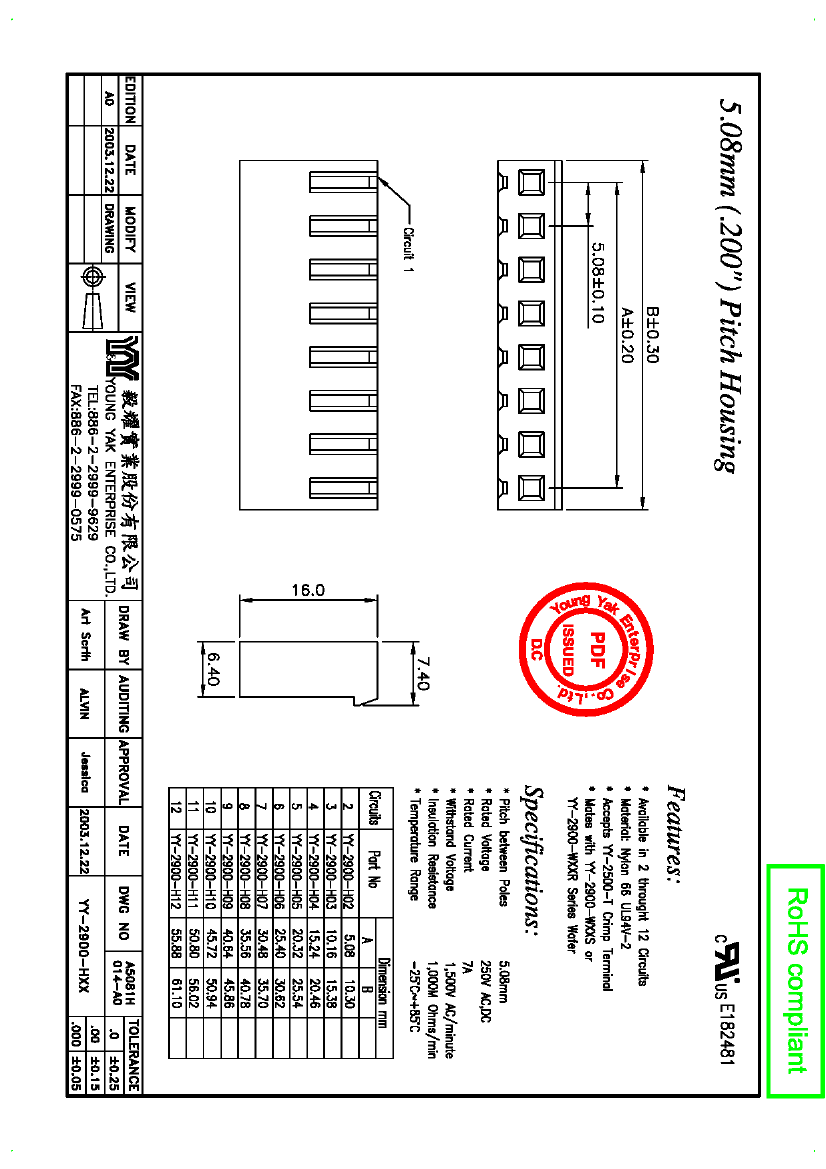

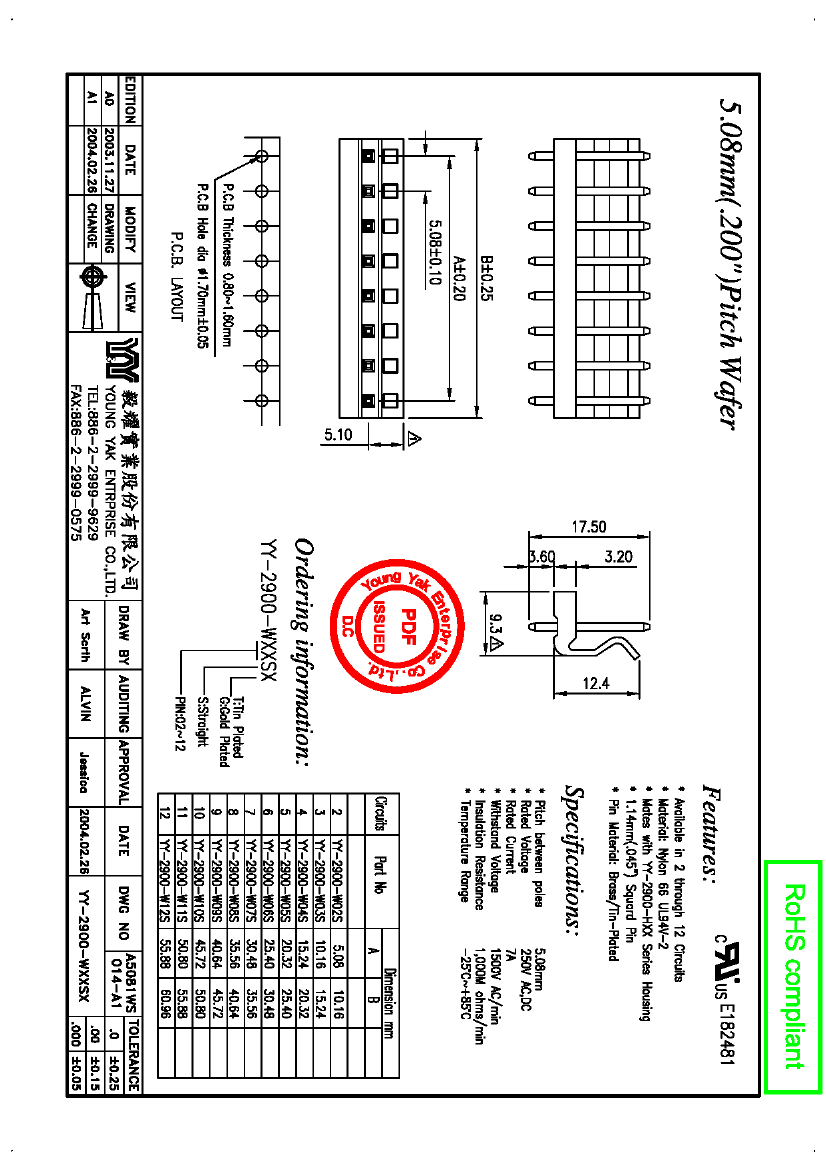

Board Connector, 12 Contact(s), 1 Row(s), Male, Straight, 0.2 inch Pitch, Solder Terminal, Receptacle

YY-2900-W12S Parametric

Parameter Name	Attribute value
Objectid	303992396
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	1.14MM (.045\") SQUARE PIN
body width	0.366 inch
subject depth	0.488 inch
body length	2.4 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1500VAC V
Insulation resistance	1000000000 Ω
insulator material	NYLON
Manufacturer's serial number	YY-2900
Plug contact pitch	0.2 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	RECTANGULAR
polarization key	POLARIZED HOUSING
Rated current (signal)	7 A
reliability	COMMERCIAL
Terminal length	0.142 inch
Terminal pitch	5.08 mm
Termination type	SOLDER
Total number of contacts	12

Preview

Download Datasheet

View All

YY-2900-W12S Related Products

	YY-2900-W12S	YY-2900-W04S	YY-2900-W10S	YY-2900-H04	YY-2900-W06S	YY-2900-H08	YY-2900-W11RT
Description	Board Connector, 12 Contact(s), 1 Row(s), Male, Straight, 0.2 inch Pitch, Solder Terminal, Receptacle	Board Connector, 4 Contact(s), 1 Row(s), Male, Straight, 0.2 inch Pitch, Solder Terminal, Receptacle	Board Connector, 10 Contact(s), 1 Row(s), Male, Straight, 0.2 inch Pitch, Solder Terminal, Receptacle	Board Connector, 4 Contact(s), 1 Row(s), Female, 0.2 inch Pitch, Crimp Terminal, Plug	Board Connector, 6 Contact(s), 1 Row(s), Male, Straight, 0.2 inch Pitch, Solder Terminal, Receptacle	Board Connector, 8 Contact(s), 1 Row(s), Female, 0.2 inch Pitch, Crimp Terminal, Plug	Board Connector, 11 Contact(s), 1 Row(s), Male, Right Angle, 0.2 inch Pitch, Solder Terminal, Receptacle
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	1.14MM (.045\") SQUARE PIN	1.14MM (.045\") SQUARE PIN	1.14MM (.045\") SQUARE PIN	NONE	1.14MM (.045\") SQUARE PIN	NONE	1.14MM (.045\") SQUARE PIN
body width	0.366 inch	0.366 inch	0.366 inch	0.291 inch	0.366 inch	0.291 inch	0.366 inch
subject depth	0.488 inch	0.488 inch	0.488 inch	0.63 inch	0.488 inch	0.63 inch	0.685 inch
body length	2.4 inch	0.8 inch	2 inch	0.806 inch	1.2 inch	1.606 inch	2.2 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	PLUG	RECEPTACLE	PLUG	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	MALE	MALE	MALE	FEMALE	MALE	FEMALE	MALE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	1500VAC V	1500VAC V	1500VAC V	1500VAC V	1500VAC V	1500VAC V	1500VAC V
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
insulator material	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON
Manufacturer's serial number	YY-2900	YY-2900	YY-2900	YY-2900	YY-2900	YY-2900	YY-2900
Plug contact pitch	0.2 inch	0.2 inch	0.2 inch	0.2 inch	0.2 inch	0.2 inch	0.2 inch
Installation type	BOARD	BOARD	BOARD	CABLE	BOARD	CABLE	BOARD
Number of rows loaded	1	1	1	1	1	1	1
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	7 A	7 A	7 A	7 A	7 A	7 A	7 A
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Termination type	SOLDER	SOLDER	SOLDER	CRIMP	SOLDER	CRIMP	SOLDER
Total number of contacts	12	4	10	4	6	8	11
Objectid	303992396	-	-	-	303992390	303982476	303992406
Contact to complete cooperation	SN	SN	SN	-	SN	-	SN
Contact completed and terminated	TIN	TIN	TIN	-	TIN	-	TIN
Contact material	BRASS	BRASS	BRASS	-	BRASS	-	BRASS
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	-	STRAIGHT	-	RIGHT ANGLE
Number of connectors	ONE	ONE	ONE	-	ONE	-	ONE
PCB row number	1	1	1	-	1	-	1
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	-	RECTANGULAR
Terminal length	0.142 inch	0.142 inch	0.142 inch	-	0.142 inch	-	0.142 inch
Terminal pitch	5.08 mm	5.08 mm	5.08 mm	-	5.08 mm	-	5.08 mm
