220M26Y8P: DescriptionBoard Connector, 26 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size570KB，3 Pages; ManufacturerATI Electronique & Interconnecxions; Environmental Compliance

Download Datasheet Parametric View All

220M26Y8P Overview

Board Connector, 26 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT

220M26Y8P Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	8059515004
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Other features	POLRIZED, SHROUDED
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	220
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	26

Preview

Download Datasheet

View All

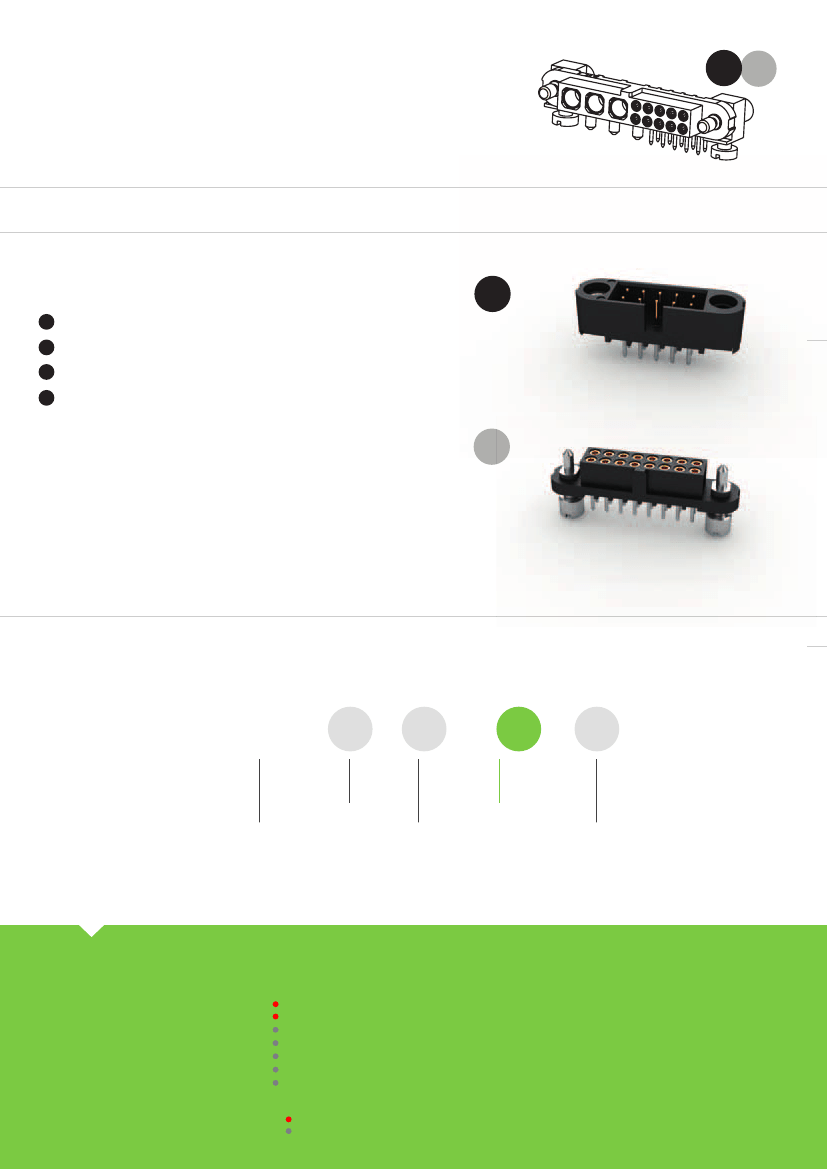

220

ATI ELECTRONIQUE

220 SERIES

1

2

3

4

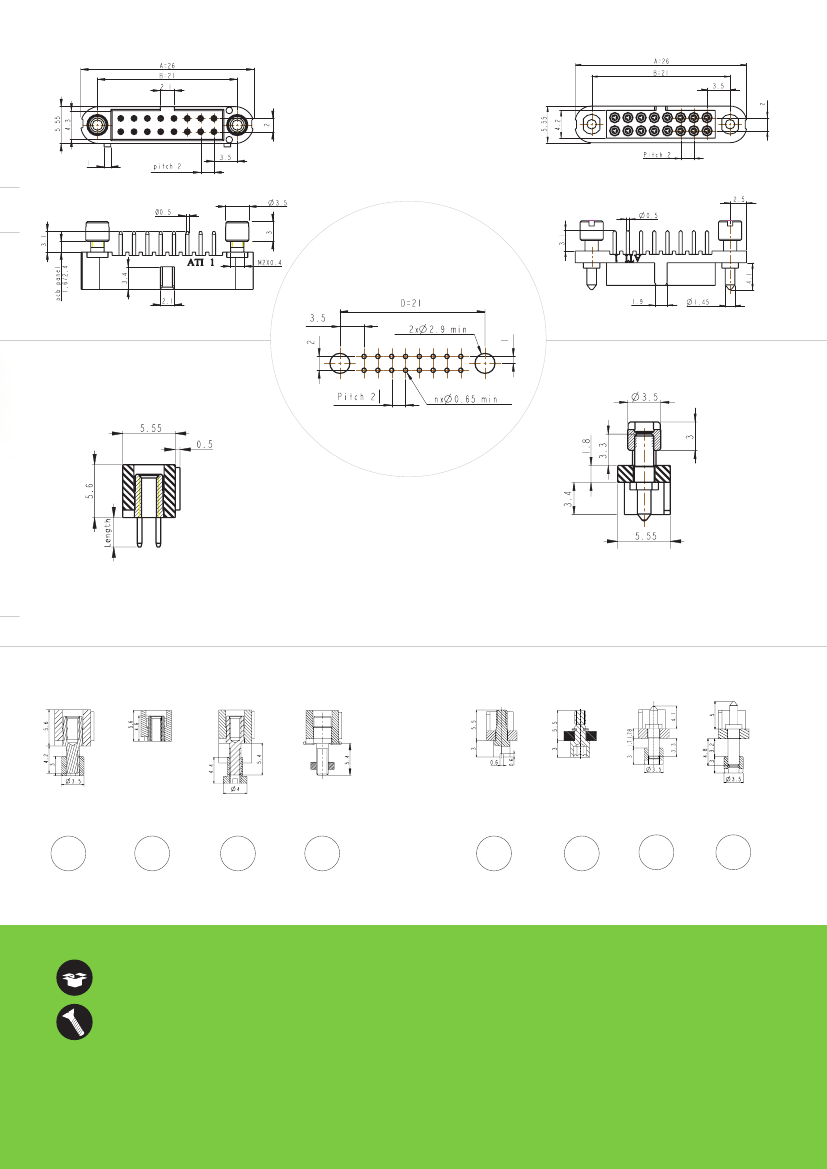

SERIES

male

female

PCB Connectors with straight LF contacts

male

Polarised mouldings

Fully shrouded contacts

Choice of PC Tail length

3 types of plating

female

HOW TO ORDER

/ ASSEMBLED

220

GENDER

SERIES CODE

NUMBER OF LF

CONTACTS

Y

LF CONTACT

STYLE

GUIDE

GLOSSARY

/ HOW TO ORDER

GENDER

F/Female

M/Male

NUMBER OF LF CONTACTS

04 to 50

GUIDES

Short list on the opposite page

Complete list, see technical index (page 96).

LF CONTACT STYLE

Y1/3.1mm Tails Gold + Tin/Lead

Y3/4.6mm Tails Gold + Tin/Lead

Y5/3.1mm Tails Gold

Y6/4.6mm Tails Gold

Y7/3.1mm Tails Gold + Tin

Y8/5.5mm Tails Gold

Y9/4.6mm Tails Gold + Tin

RoHS RULES (w/ lead) :

No RoHS (with lead)

RoHS (without lead)

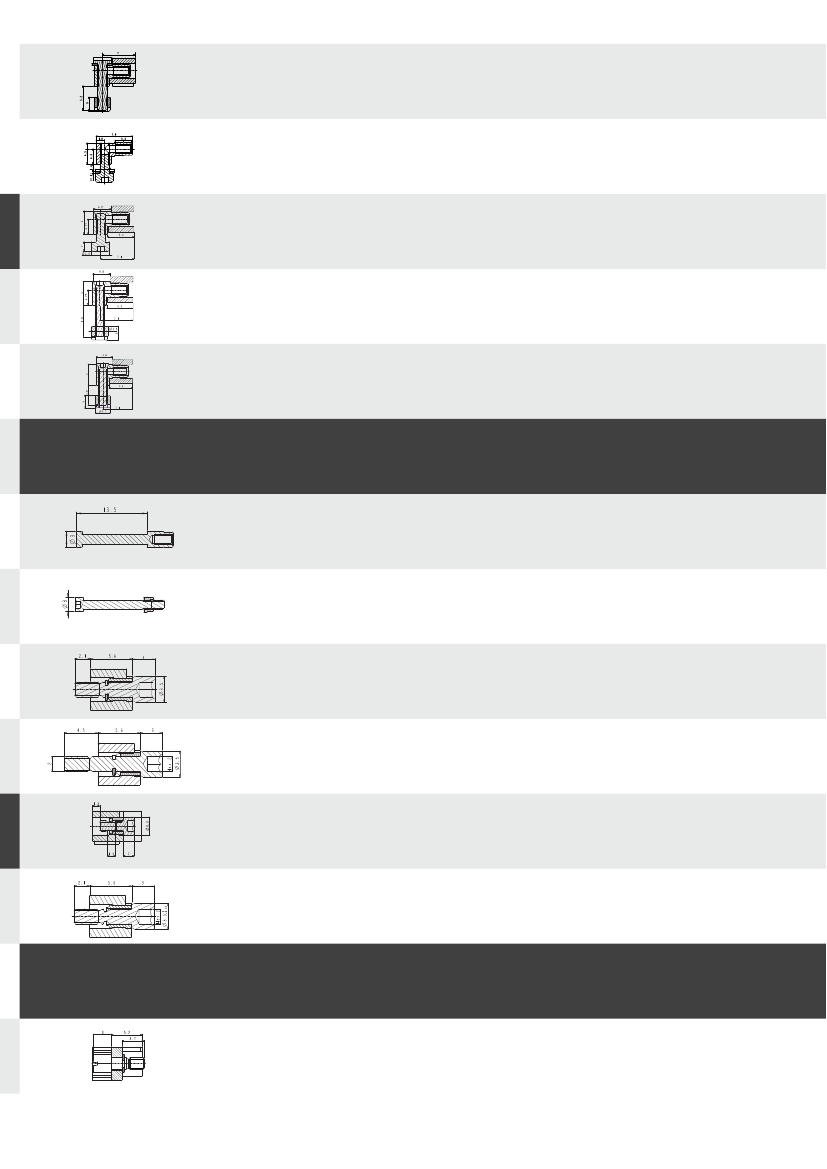

USUAL GUIDES

FOR FEMALE CONTACTS

B/3.3mm Jackscrew

C/5.1mm Jackscrew

H/With Hex. socket Jackscrew

J/

AP/With Hex. slotted Jackscrew

0/Without Jackscrews

USUAL GUIDES

FOR MALE CONTACTS

P/3.5mm Jackscrew

Q/5mm Jackscrew

Y/Only lockable

Z/

PZ/

QZ/

0/Without Jackscrews

ATI ELECTRONIQUE

34
