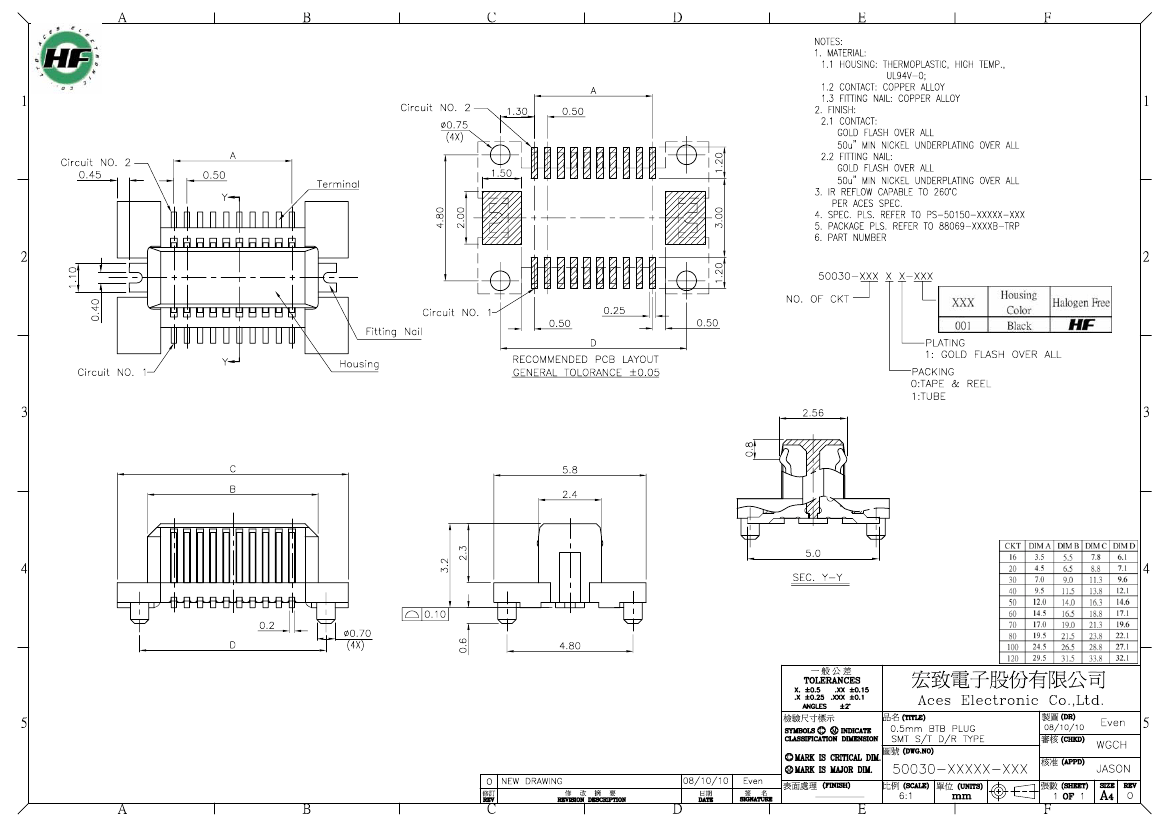

50030-01611-001

Description
Board Connector, 16 Contact(s), 2 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Black Insulator, Plug
CategoryThe connector    The connector
File Size137KB，1 Pages
ManufacturerAces Electronics Co., Ltd.
Environmental Compliance
Download Datasheet Parametric Compare View All

50030-01611-001 Overview

Board Connector, 16 Contact(s), 2 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Black Insulator, Plug

50030-01611-001 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid305555970
Reach Compliance Codeunknown
ECCN codeEAR99
Board mount optionsFITTING NAIL
body width0.228 inch
subject depth0.126 inch
body length0.307 inch
Body/casing typePLUG
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU ON NI
Contact completed and terminatedGold (Au) - with Nickel (Ni) barrier
Contact point genderFEMALE
Contact materialCOPPER ALLOY
contact modeRECTANGULAR
Contact resistance55 mΩ
Contact styleBELLOWED TYPE
Dielectric withstand voltage300VAC V
Durability30 Cycles
Insulation resistance500000000 Ω
Insulator colorBLACK
insulator materialTHERMOPLASTIC
JESD-609 codee4
Manufacturer's serial number50030
Plug contact pitch0.02 inch
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature80 °C
Minimum operating temperature-40 °C
PCB contact patternRECTANGULAR
PCB contact row spacing4.191 mm
Plating thicknessFLASH inch
Rated current (signal)0.5 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal pitch0.508 mm
Termination typeSURFACE MOUNT
Total number of contacts16

Preview

Download Datasheet

50030-01611-001 Related Products

50030-01611-001 50030-06011-001 50030-07001-001 50030-01601-001 50030-12011-001 50030-05001-001 50030-05011-001
Description Board Connector, 16 Contact(s), 2 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Black Insulator, Plug Board Connector, 60 Contact(s), 2 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Black Insulator, Plug Board Connector, 70 Contact(s), 2 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Black Insulator, Plug Board Connector, 16 Contact(s), 2 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Black Insulator, Plug Board Connector, 120 Contact(s), 2 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Black Insulator, Plug Board Connector, 50 Contact(s), 2 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Black Insulator, Plug Board Connector, 50 Contact(s), 2 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Black Insulator, Plug
Is it Rohs certified? conform to conform to conform to conform to conform to conform to conform to
Reach Compliance Code unknown unknown unknown unknown unknown unknown unknown
Board mount options FITTING NAIL FITTING NAIL FITTING NAIL FITTING NAIL FITTING NAIL FITTING NAIL FITTING NAIL
body width 0.228 inch 0.228 inch 0.228 inch 0.228 inch 0.228 inch 0.228 inch 0.228 inch
subject depth 0.126 inch 0.126 inch 0.126 inch 0.126 inch 0.126 inch 0.126 inch 0.126 inch
body length 0.307 inch 0.74 inch 0.839 inch 0.307 inch 1.331 inch 0.642 inch 0.642 inch
Body/casing type PLUG PLUG PLUG PLUG PLUG PLUG PLUG
Connector type BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR
Contact to complete cooperation AU ON NI AU ON NI AU ON NI AU ON NI AU ON NI AU ON NI AU ON NI
Contact completed and terminated Gold (Au) - with Nickel (Ni) barrier Gold (Au) - with Nickel (Ni) barrier Gold (Au) - with Nickel (Ni) barrier Gold (Au) - with Nickel (Ni) barrier Gold (Au) - with Nickel (Ni) barrier Gold (Au) - with Nickel (Ni) barrier Gold (Au) - with Nickel (Ni) barrier
Contact point gender FEMALE FEMALE FEMALE FEMALE FEMALE FEMALE FEMALE
Contact material COPPER ALLOY COPPER ALLOY COPPER ALLOY COPPER ALLOY COPPER ALLOY COPPER ALLOY COPPER ALLOY
contact mode RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Contact resistance 55 mΩ 55 mΩ 55 mΩ 55 mΩ 55 mΩ 55 mΩ 55 mΩ
Contact style BELLOWED TYPE BELLOWED TYPE BELLOWED TYPE BELLOWED TYPE BELLOWED TYPE BELLOWED TYPE BELLOWED TYPE
Dielectric withstand voltage 300VAC V 300VAC V 300VAC V 300VAC V 300VAC V 300VAC V 300VAC V
Durability 30 Cycles 30 Cycles 30 Cycles 30 Cycles 30 Cycles 30 Cycles 30 Cycles
Insulation resistance 500000000 Ω 500000000 Ω 500000000 Ω 500000000 Ω 500000000 Ω 500000000 Ω 500000000 Ω
Insulator color BLACK BLACK BLACK BLACK BLACK BLACK BLACK
insulator material THERMOPLASTIC THERMOPLASTIC THERMOPLASTIC THERMOPLASTIC THERMOPLASTIC THERMOPLASTIC THERMOPLASTIC
JESD-609 code e4 e4 e4 e4 e4 e4 e4
Manufacturer's serial number 50030 50030 50030 50030 50030 50030 50030
Plug contact pitch 0.02 inch 0.02 inch 0.02 inch 0.02 inch 0.02 inch 0.02 inch 0.02 inch
Installation method STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT
Installation type BOARD BOARD BOARD BOARD BOARD BOARD BOARD
Number of connectors ONE ONE ONE ONE ONE ONE ONE
PCB row number 2 2 2 2 2 2 2
Number of rows loaded 2 2 2 2 2 2 2
Maximum operating temperature 80 °C 80 °C 80 °C 80 °C 80 °C 80 °C 80 °C
Minimum operating temperature -40 °C -40 °C -40 °C -40 °C -40 °C -40 °C -40 °C
PCB contact pattern RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
PCB contact row spacing 4.191 mm 4.191 mm 4.191 mm 4.191 mm 4.191 mm 4.191 mm 4.191 mm
Plating thickness FLASH inch FLASH inch FLASH inch FLASH inch FLASH inch FLASH inch FLASH inch
Rated current (signal) 0.5 A 0.5 A 0.5 A 0.5 A 0.5 A 0.5 A 0.5 A
Guideline UL UL UL UL UL UL UL
reliability COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL
Terminal pitch 0.508 mm 0.508 mm 0.508 mm 0.508 mm 0.508 mm 0.508 mm 0.508 mm
Termination type SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT
Total number of contacts 16 60 70 16 120 50 50
Maker - Aces Electronics Co., Ltd. Aces Electronics Co., Ltd. Aces Electronics Co., Ltd. Aces Electronics Co., Ltd. - -
Base Number Matches - 1 1 1 1 1 1
