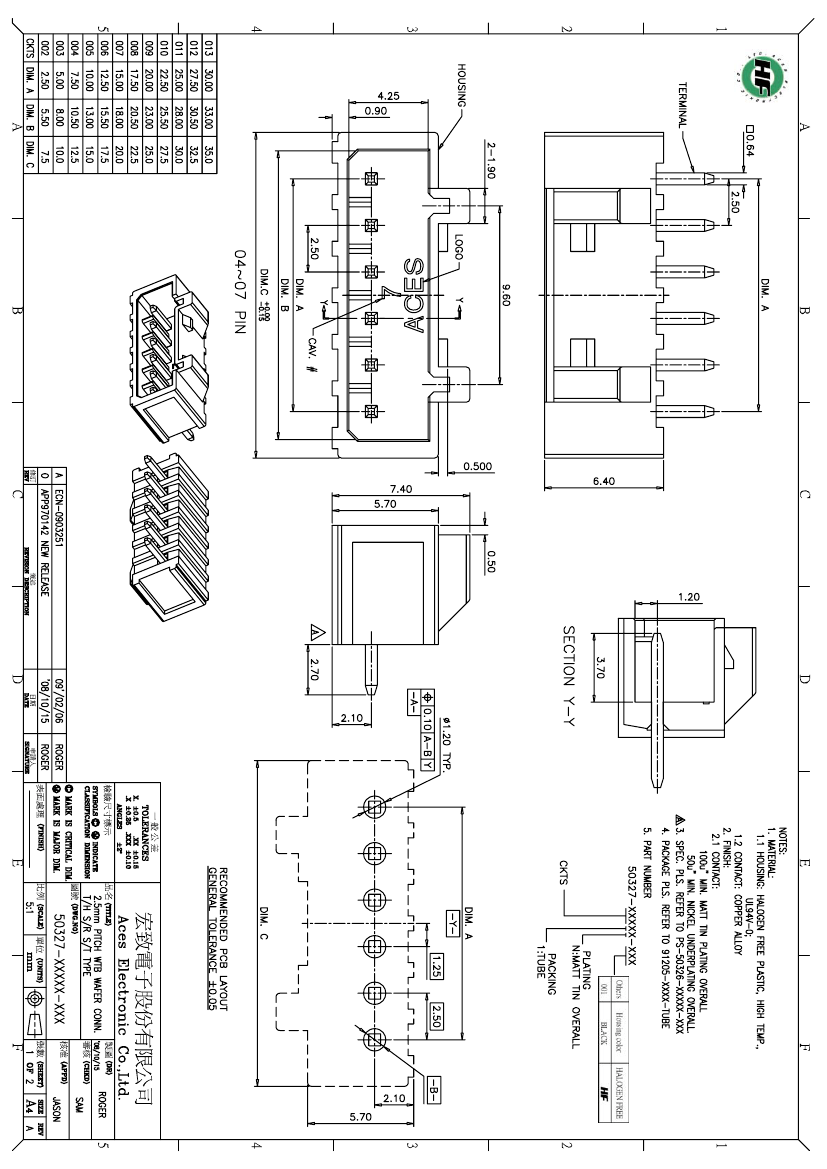

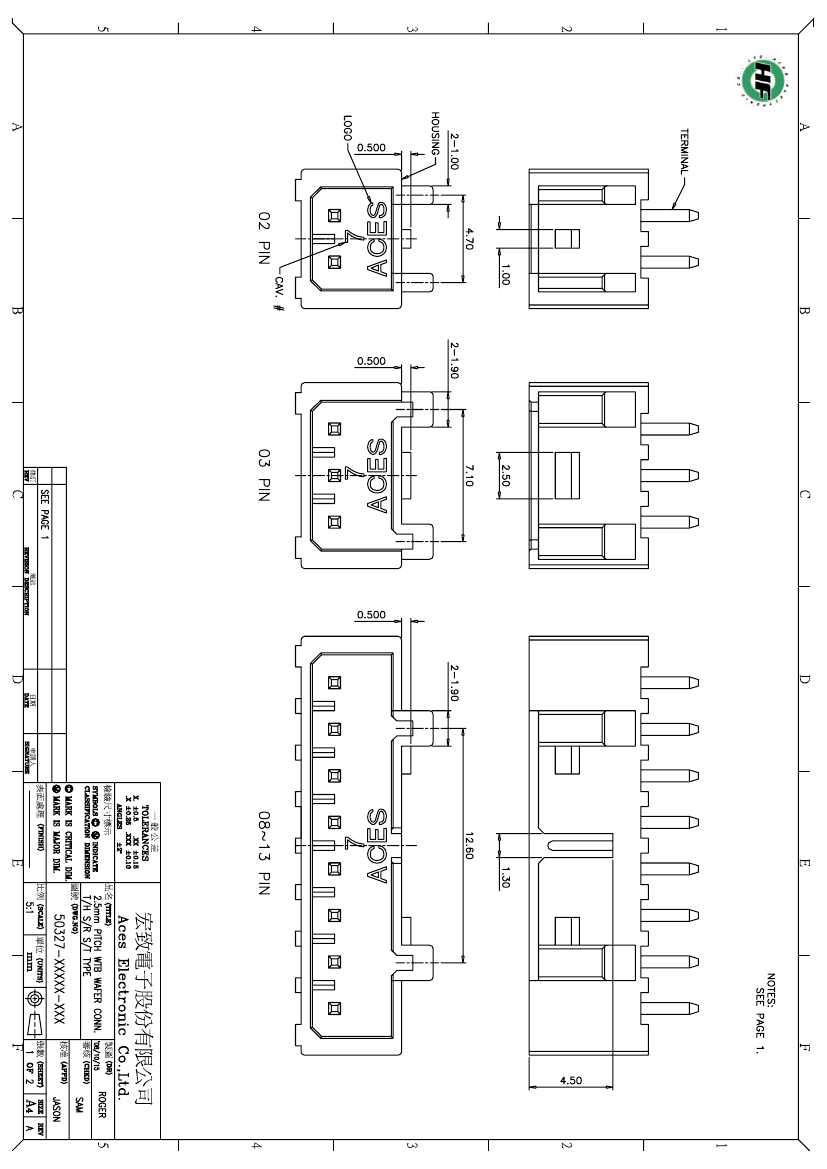

Board Connector, 12 Contact(s), 1 Row(s), Male, Straight, 0.098 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle
| Parameter Name | Attribute value |
| Objectid | 305567265 |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| body width | 0.291 inch |
| subject depth | 0.252 inch |
| body length | 1.28 inch |
| Body/casing type | RECEPTACLE |
| Connector type | BOARD CONNECTOR |
| Contact to complete cooperation | SN ON NI |
| Contact completed and terminated | TIN OVER NICKEL |
| Contact point gender | MALE |
| Contact material | COPPER ALLOY |
| contact mode | RECTANGULAR |
| Contact resistance | 10 mΩ |
| Contact style | SQ PIN-SKT |
| Durability | 50 Cycles |
| maximum insertion force | 19.5712 N |
| Insulation resistance | 1000000000 Ω |
| Insulator color | BLACK |
| Manufacturer's serial number | 50327 |
| Plug contact pitch | 0.098 inch |
| Installation option 1 | LOCKING |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 1 |
| Number of rows loaded | 1 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -25 °C |
| PCB contact pattern | RECTANGULAR |
| Plating thickness | 100u inch |
| polarization key | POLARIZED HOUSING |
| Rated current (signal) | 5 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Terminal length | 0.106 inch |
| Terminal pitch | 2.4892 mm |
| Termination type | SOLDER |
| Total number of contacts | 12 |
| 50327-0121N-001 | 50327-0071N-001 | 50327-0051N-001 | 50327-0041N-001 | 50327-0061N-001 | 50327-0081N-001 | 50327-0091N-001 | |
|---|---|---|---|---|---|---|---|
| Description | Board Connector, 12 Contact(s), 1 Row(s), Male, Straight, 0.098 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle | Board Connector, 7 Contact(s), 1 Row(s), Male, Straight, 0.098 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle | Board Connector, 5 Contact(s), 1 Row(s), Male, Straight, 0.098 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle | Board Connector, 4 Contact(s), 1 Row(s), Male, Straight, 0.098 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle | Board Connector, 6 Contact(s), 1 Row(s), Male, Straight, 0.098 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle | Board Connector, 8 Contact(s), 1 Row(s), Male, Straight, 0.098 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle | Board Connector, 9 Contact(s), 1 Row(s), Male, Straight, 0.098 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle |
| Reach Compliance Code | unknown | unknown | unknow | unknown | unknown | unknown | unknown |
| body width | 0.291 inch | 0.291 inch | 0.291 inch | 0.291 inch | 0.291 inch | 0.291 inch | 0.291 inch |
| subject depth | 0.252 inch | 0.252 inch | 0.252 inch | 0.252 inch | 0.252 inch | 0.252 inch | 0.252 inch |
| body length | 1.28 inch | 0.787 inch | 0.591 inch | 0.492 inch | 0.689 inch | 0.886 inch | 0.984 inch |
| Body/casing type | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE |
| Connector type | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR |
| Contact to complete cooperation | SN ON NI | SN ON NI | SN ON NI | SN ON NI | SN ON NI | SN ON NI | SN ON NI |
| Contact completed and terminated | TIN OVER NICKEL | TIN OVER NICKEL | TIN OVER NICKEL | TIN OVER NICKEL | TIN OVER NICKEL | TIN OVER NICKEL | TIN OVER NICKEL |
| Contact point gender | MALE | MALE | MALE | MALE | MALE | MALE | MALE |
| Contact material | COPPER ALLOY | COPPER ALLOY | COPPER ALLOY | COPPER ALLOY | COPPER ALLOY | COPPER ALLOY | COPPER ALLOY |
| contact mode | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Contact resistance | 10 mΩ | 10 mΩ | 10 mΩ | 10 mΩ | 10 mΩ | 10 mΩ | 10 mΩ |
| Contact style | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT |
| Durability | 50 Cycles | 50 Cycles | 50 Cycles | 50 Cycles | 50 Cycles | 50 Cycles | 50 Cycles |
| maximum insertion force | 19.5712 N | 19.5712 N | 19.5712 N | 19.5712 N | 19.5712 N | 19.5712 N | 19.5712 N |
| Insulation resistance | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω |
| Insulator color | BLACK | BLACK | BLACK | BLACK | BLACK | BLACK | BLACK |
| Manufacturer's serial number | 50327 | 50327 | 50327 | 50327 | 50327 | 50327 | 50327 |
| Plug contact pitch | 0.098 inch | 0.098 inch | 0.098 inch | 0.098 inch | 0.098 inch | 0.098 inch | 0.098 inch |
| Installation option 1 | LOCKING | LOCKING | LOCKING | LOCKING | LOCKING | LOCKING | LOCKING |
| Installation method | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT |
| Installation type | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD |
| Number of connectors | ONE | ONE | ONE | ONE | ONE | ONE | ONE |
| PCB row number | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of rows loaded | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Maximum operating temperature | 85 °C | 85 °C | 85 °C | 85 °C | 85 °C | 85 °C | 85 °C |
| Minimum operating temperature | -25 °C | -25 °C | -25 °C | -25 °C | -25 °C | -25 °C | -25 °C |
| PCB contact pattern | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Plating thickness | 100u inch | 100u inch | 100u inch | 100u inch | 100u inch | 100u inch | 100u inch |
| polarization key | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING |
| Rated current (signal) | 5 A | 5 A | 5 A | 5 A | 5 A | 5 A | 5 A |
| Guideline | UL | UL | UL | UL | UL | UL | UL |
| reliability | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal length | 0.106 inch | 0.106 inch | 0.106 inch | 0.106 inch | 0.106 inch | 0.106 inch | 0.106 inch |
| Terminal pitch | 2.4892 mm | 2.4892 mm | 2.4892 mm | 2.4892 mm | 2.4892 mm | 2.4892 mm | 2.4892 mm |
| Termination type | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER |
| Total number of contacts | 12 | 7 | 5 | 4 | 6 | 8 | 9 |
| ECCN code | EAR99 | - | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Maker | - | - | Aces Electronics Co., Ltd. | Aces Electronics Co., Ltd. | Aces Electronics Co., Ltd. | Aces Electronics Co., Ltd. | Aces Electronics Co., Ltd. |
