Part Number

Search

50476-01511-002

Description
Board Connector, 15 Contact(s), 1 Row(s), Female, 0.024 inch Pitch, IDC Terminal, Locking, Natural Insulator, Plug
CategoryThe connector    The connector
File Size239KB,2 Pages
ManufacturerAces Electronics Co., Ltd.
Environmental Compliance
Download Datasheet Parametric View All

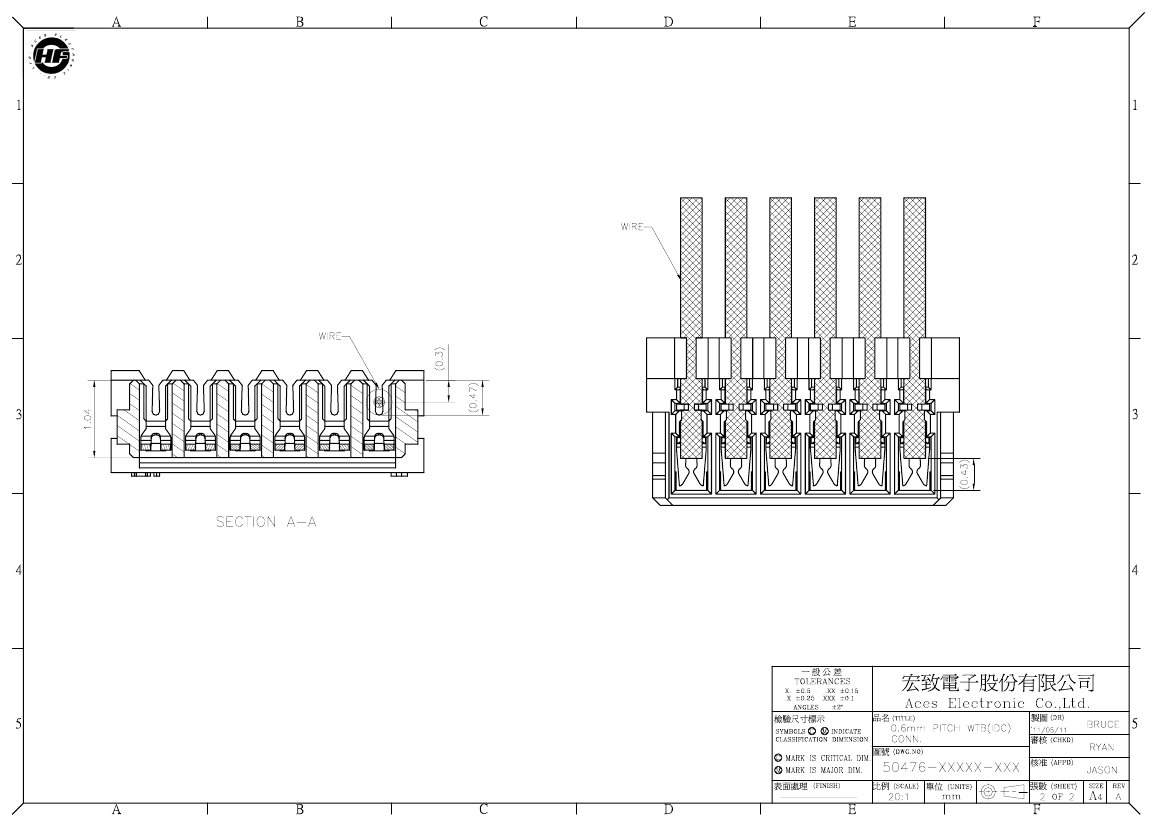

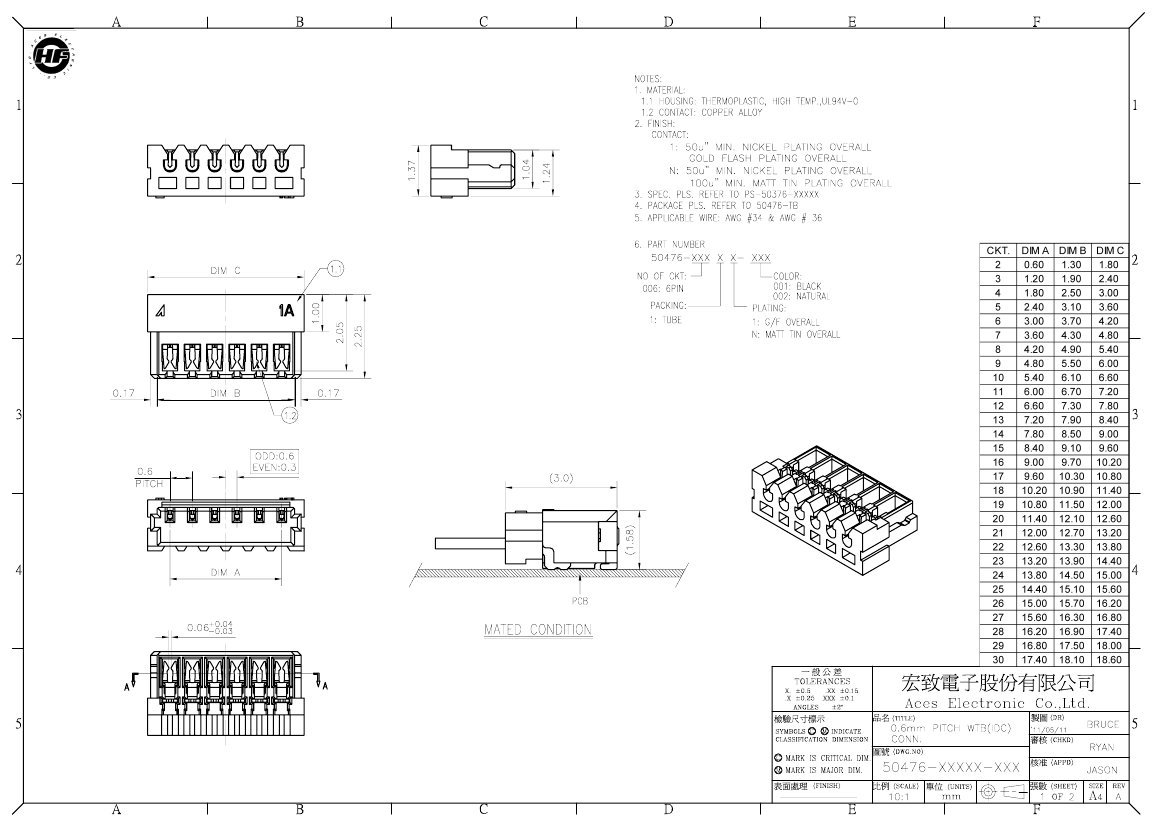

50476-01511-002 Overview

Board Connector, 15 Contact(s), 1 Row(s), Female, 0.024 inch Pitch, IDC Terminal, Locking, Natural Insulator, Plug

50476-01511-002 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid305549644
Reach Compliance Codeunknown
ECCN codeEAR99
body width0.062 inch
subject depth0.089 inch
body length0.378 inch
Body/casing typePLUG
Connector typeBOARD CONNECTOR
Contactor designPREASSEM CONN
Contact to complete cooperationAU ON NI
Contact completed and terminatedGold (Au) - with Nickel (Ni) barrier
Contact point genderFEMALE
Contact materialCOPPER ALLOY
contact modeRECTANGULAR
Contact resistance50 mΩ
Dielectric withstand voltage280VAC V
Durability30 Cycles
Insulation resistance100000000 Ω
Insulator colorNATURAL
insulator materialTHERMOPLASTIC
JESD-609 codee4
Manufacturer's serial number50476
Plug contact pitch0.024 inch
Installation option 1LOCKING
Installation typeCABLE
Number of rows loaded1
Maximum operating temperature85 °C
Minimum operating temperature-25 °C
Plating thicknessFLASH inch
GuidelineUL
reliabilityCOMMERCIAL
Termination typeIDC
Total number of contacts15
Maximum wire diameter34 AWG
Minimum wire diameter36 AWG
