88066-0400 datasheet, PDF - EEWORLD Datasheet

88066-0400: DescriptionBoard Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size132KB，1 Pages; ManufacturerAces Electronics Co., Ltd.

Download Datasheet Parametric View All

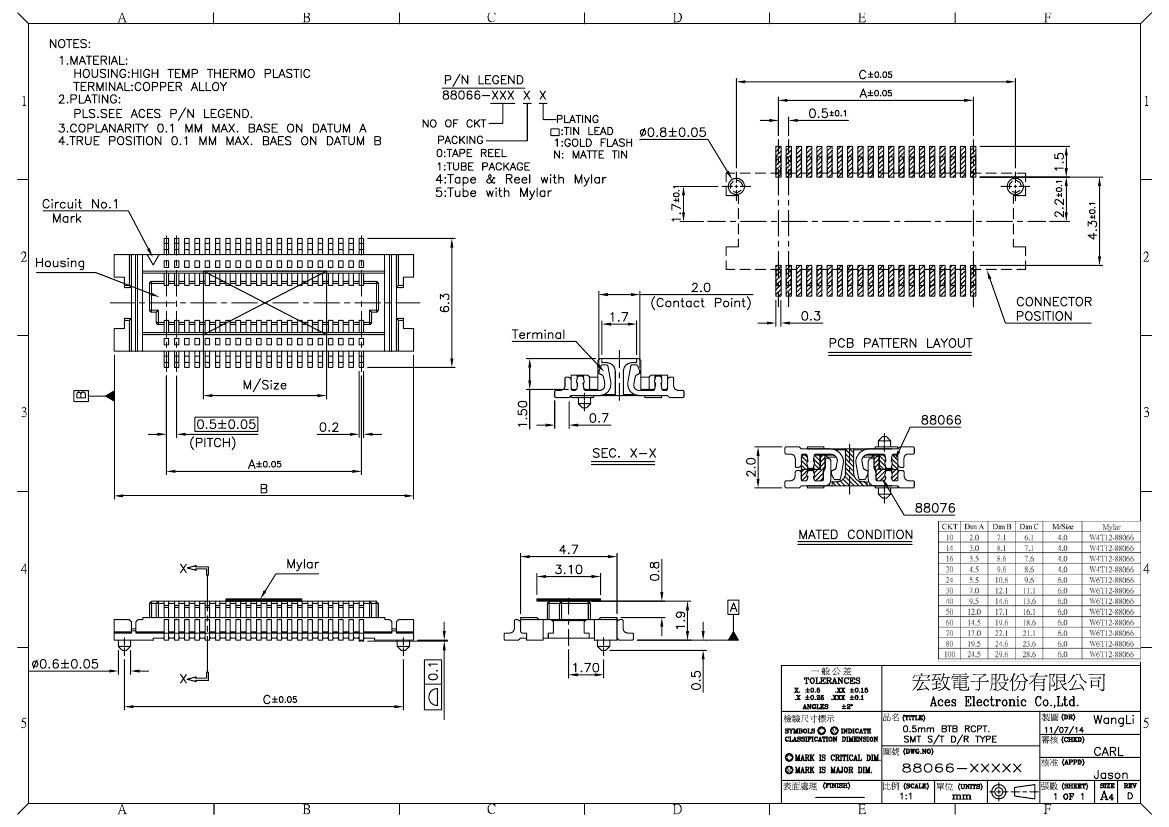

88066-0400 Overview

Board Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, Receptacle

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	305590097
Reach Compliance Code	unknown
ECCN code	EAR99
Board mount options	PEG
body width	0.185 inch
subject depth	0.078 inch
body length	0.575 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN-PB
Contact completed and terminated	Tin/Lead (Sn/Pb)
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	40 mΩ
Dielectric withstand voltage	250VAC V
Durability	50 Cycles
maximum insertion force	.695 N
Insulation resistance	1000000000 Ω
insulator material	THERMOPLASTIC
JESD-609 code	e0
Manufacturer's serial number	88066
Plug contact pitch	0.02 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.7912 mm
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.508 mm
Termination type	SURFACE MOUNT
Total number of contacts	40
Evacuation force-minimum value	.1112 N
