88669-3071 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 88669-3071

88669-3071: DescriptionBoard Connector, 30 Contact(s), 2 Row(s), Female, Straight, 0.016 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Plug; CategoryThe connector The connector; File Size164KB，1 Pages; ManufacturerAces Electronics Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

88669-3071 Overview

Board Connector, 30 Contact(s), 2 Row(s), Female, Straight, 0.016 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Plug

88669-3071 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	305591920
Reach Compliance Code	unknown
ECCN code	EAR99
Board mount options	PEG
body width	0.104 inch
subject depth	0.059 inch
body length	0.28 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	70 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	250VAC V
Durability	30 Cycles
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	THERMOPLASTIC
JESD-609 code	e4
Manufacturer's serial number	88669
Plug contact pitch	0.016 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	3.683 mm
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.4064 mm
Termination type	SURFACE MOUNT
Total number of contacts	30

Preview

Download Datasheet

View All

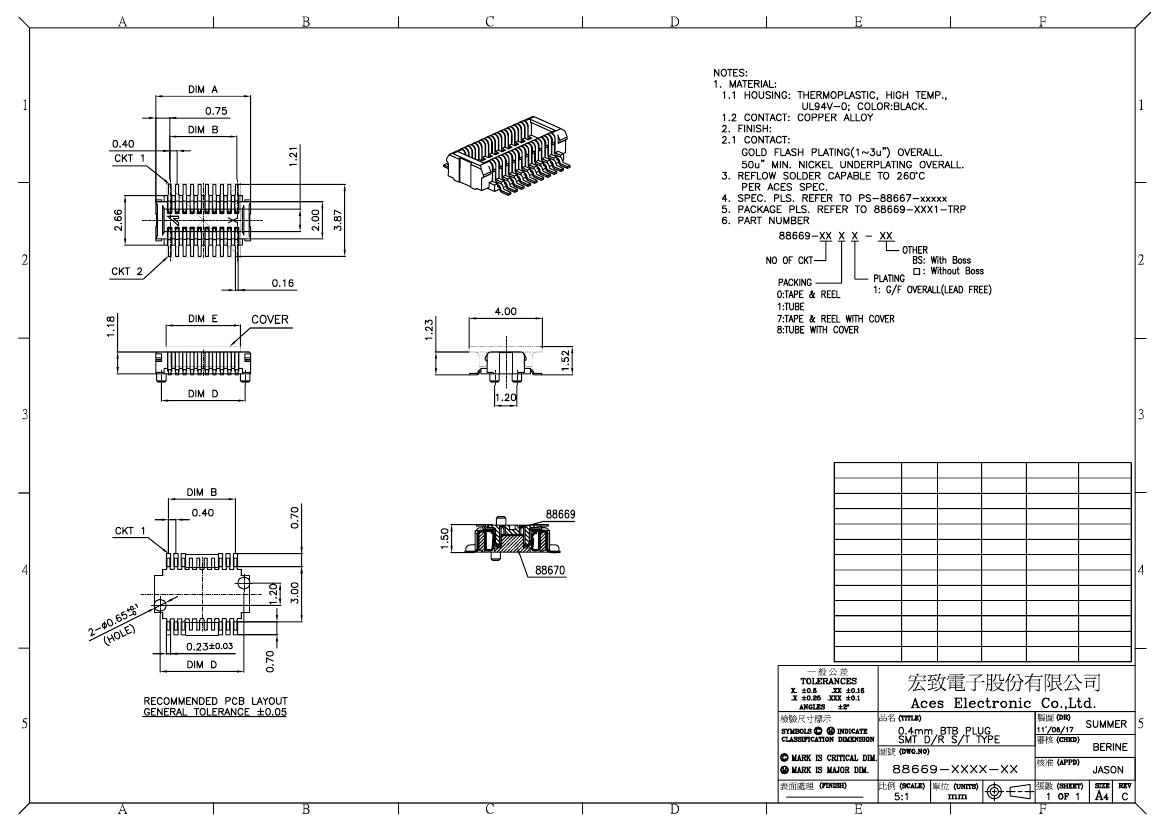

PART No.

88669-20XX

88669-24XX

88669-26XX

88669-28XX

88669-30XX

88669-34XX

88669-40XX

88669-50XX

88669-54XX

88669-60XX

88669-70XX

88669-80XX

CKT

Dim A

5.10

5.90

6.30

6.70

7.10

7.90

9.10

11.10

11.90

13.10

15.10

17.10

Dim B

3.60

4.40

4.80

5.20

5.60

6.40

7.60

9.60

10.40

11.60

13.60

15.60

Dim D

4.50

5.30

5.70

6.10

6.50

7.30

8.50

10.50

11.30

12.50

14.50

16.50

Dim E

2.80

4.00
