KPJX-4S datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> KPJX-4S

Preview

KPJX-4S: Description20V, 7.5A, DC POWER PLUG OR JACK; CategoryThe connector; File Size2MB，3 Pages; ManufacturerETC2

Download Datasheet Parametric View All

KPJX-4S Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	KPJX-4S	-	-	View	Buy Now

KPJX-4S Overview

20V, 7.5A, DC POWER PLUG OR JACK

KPJX-4S Parametric

Parameter Name	Attribute value
Processing package description	ROHS COMPLIANT
state	ACTIVE
Options	GENERAL PURPOSE
Shell style	socket
Manufacturer Series	KPJX
Contact surface matching	NOT SPECIFIED
Contact coated terminals	NOT SPECIFIED
Connection Type	DC power plug or socket
Installation type	BOARD
Terminal type	welding

Preview

Download Datasheet

View All

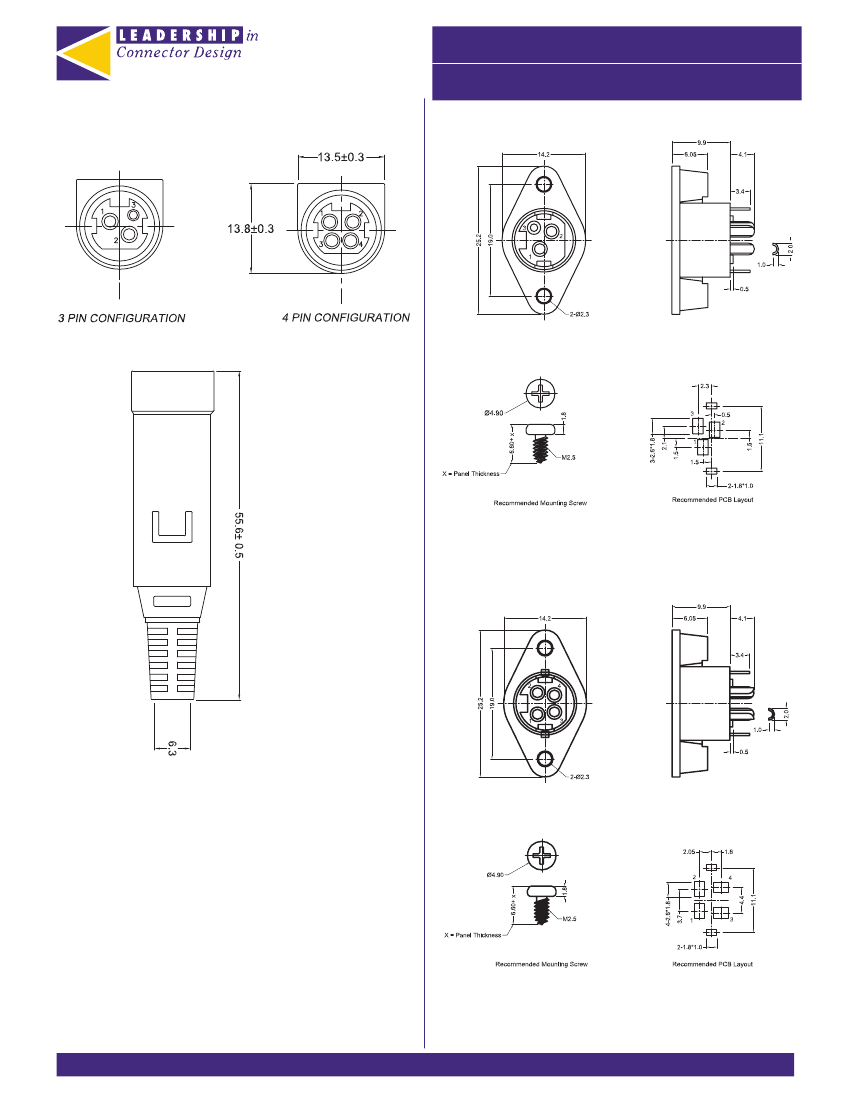

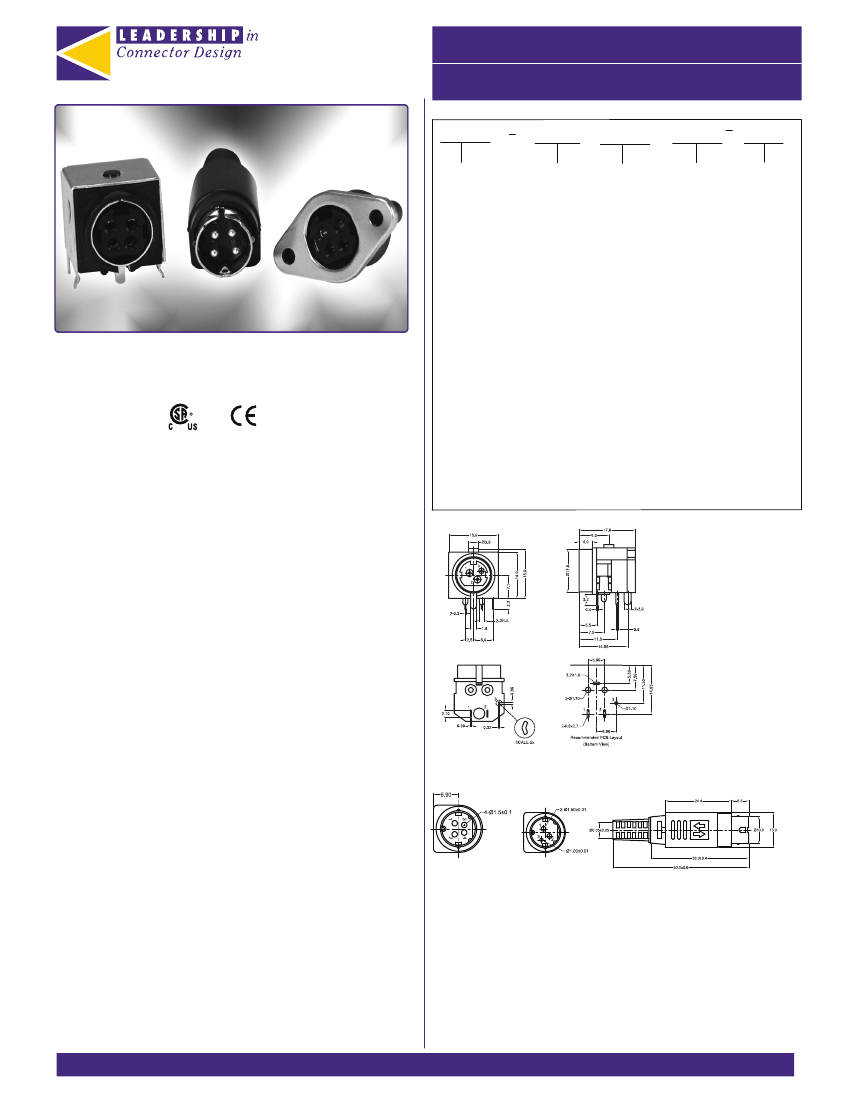

DC POWER CONNECTORS

KYCON

RoHS

Ordering Information

KPJX / KPPX Series

Series

Mounting

Option

No of

Contacts

Contact

Type

Shield

Option

KPJX - Right Angle Receptacle

KPJX-CM - Receptacle,Cable Mount

KPJX-PM - Receptacle,Panel Mount

KPJXHT - High Temp Right Angle Receptacle

KPPX - Snap and Lock DC Power Plug Cable Mount

KPPX/KPJX Series

Snap and Lock PCB and Cable Mount

Features

•

Laptop Computers, Power Supplies and Other Portable Digital

Equipment Applications

Disconnects

LR78160

Number of Contacts

3 Pin

4 Pin

S - Socket (KPJX Only)

P - Plug (KPPX Only)

Blank - Non-Shielded

S - Shielded (KPJX, KPJX-PM and KPJXHT only)

Contact Type

Shield Option

•

Snap and Lock Feature Helps to Prevent Accidental

•

3 or 4 Pins Transmit Power, or One Pin Can be Used

For Signal Transmission

KPJX-3S

•

For Signal and DC Power Applications

•

Plugs Supplied in Kits Ready for Assembly

•

CSA/NRTL Certified File No. LR78160

Performance Specifications

Materials and Finish

Jack

Shield:

Tin Plated

Body:

PBT UL94 V-0 Rated

HT Body:

High Temperature Thermoplastic,UL94 V-0 Rated

Plug

Body:

ABS, UL 94HB Rated

Insert:

Nylon, UL 94HB Rated

KPPX-xP

Electrical Characteristics

Contact Rating

3 Position:

Pin 1 and 2, 24V DC at 7.5A Max.,

Pin 3, 24V DC 1.0A Max.

4 Position:

24V DC 7.5A Max. for all Pins

Insulation Resistance:

50 Megohms Min. at 250V DC

Dielectric Withstanding Voltage:

500V AC for 1 Minute

Contact Resistance:

30 milliohms Max.

Mechanical Characteristics

Durability Test:

1000 Cycles

Suggested Wire Awg.:

#18 for Power Wires, #24 for Signal Wire

2013

KYCON, Inc. • Tel: +1 408-494-0330 • US: 1-888-KYCON-22 • Fax: +1 408-494-0325 • www.kycon.com
